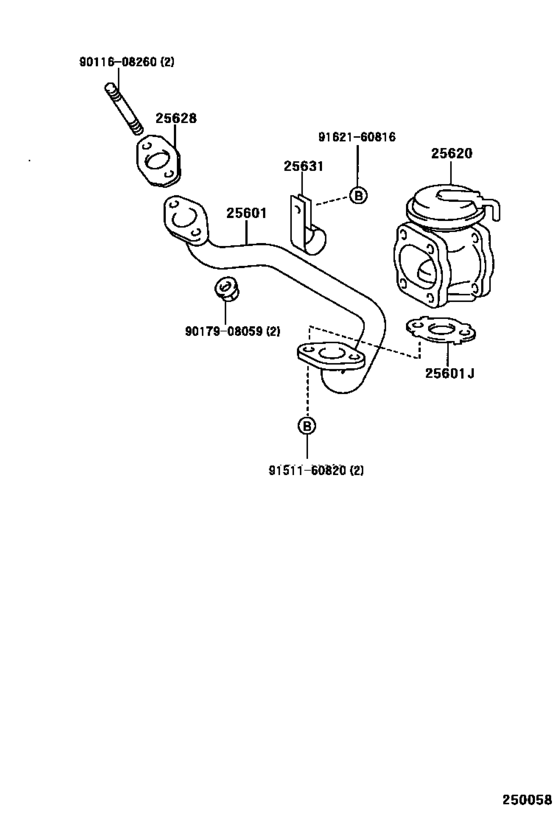

Exhaust Gas Recirculation System ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-58050
Pipe Sub-Assy, Egr, No.1
[06.1999 -] 15BFTE..BXD20 |
25601-58050 |
— | ||
|
25601J
|
25601J
25634-58010 Gasket(For Egr Pipe, No.1)[06.1999 -] 15BFTE..BXD20 |
25634-58010 |
US $12.54 |
||
|
25620
|
25620
25620-58050 Valve Assy, Egr[06.1999 -] 15BFTE..BXD20 |
25620-58050 |
US $262.08 |
||
|
25628
|
25628
25628-58010 Gasket, Egr Inlet[06.1999 -] 15BFTE..BXD20 |
25628-58010 |
US $28.90 |
||
|
25631
|
25631
25631-58010 Stay, Egr Pipe, No.1[06.1999 -] 15BFTE..BXD20 |
25631-58010 |
US $4.95 |
||
|
9011608260
|
9011608260
90116-08260 Bolt, Stud(For Turbine Housing) |
90116-08260 |
US $1.79 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.78 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
