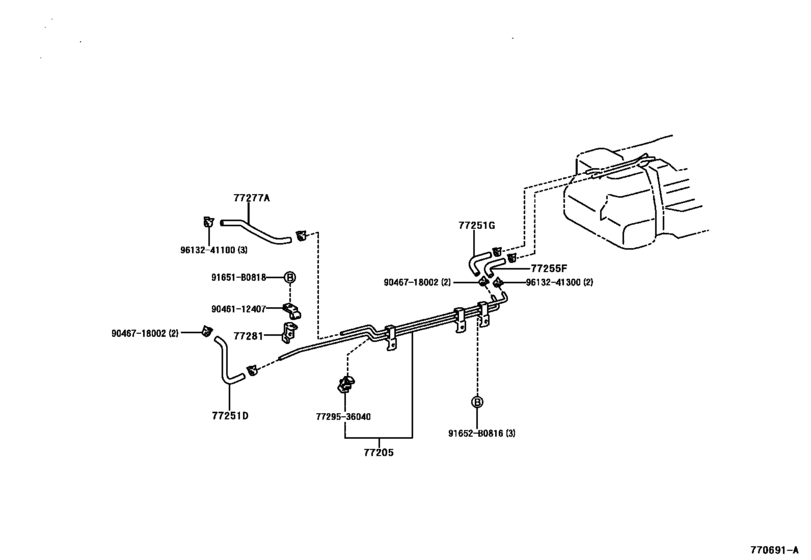

Fuel Tank & Tube ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77205
|
77205
77205-65020 Tube Sub-Assy, Fuel Main[06.1999 -] BXD20 |
77205-65020 |
US $173.26 |
||
|
77251D
|
77251D
95332-12028 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[06.1999 -] BXD20 ＊Ｈ，Ｌ＝２８０，内径＝１２ |
95332-12028 |
US $14.69 |
||
|
77251G
|
77251G
95332-12026
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[06.1999 -] BXD20 |
95332-12026 |
— | ||
| replacement | |||||
|
77251G
|
77251G
95337-12026 Hose, Fuel, No.1 (For Main Tube, No.2)[06.1999 -] BXD20 |
95337-12026 |
US $13.26 |
||
|
77255F
|
77255F
95333-08020
Hose, Lpg Injector
[06.1999 -] BXD20 ＊Ｈ，Ｌ＝２００，内径＝７．６ |
95333-08020 |
— | ||
| replacement | |||||
|
77255F
|
77255F
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [06.1999 -] BXD20 ＊Ｈ，Ｌ＝２００，内径＝７．６ |
95337-08020 |
from US $5.56 |
||
|
77277A
|
77277A
23273-58090 Hose, Fuel, No.1(For Return Tube, No.1)[06.1999 -] BXD20 |
23273-58090 |
US $13.83 |
||
|
77281
|
77281
77281-65020 Bracket, Fuel Main Tube, No.1[06.1999 -] BXD20 |
77281-65020 |
US $6.55 |
||
|
91651B0818
|
91651B0818
91651-B0818 BOLT WWASHER |
91651-B0818 |
from US $1.08 |
||
|
91652B0816
|
91652B0816
91652-B0816 New Genuine Part |
91652-B0816 |
US $1.43 |
||
|
7729536040
|
7729536040
77295-36040 Grommet, Fuel Tube |
77295-36040 |
US $7.35 |
||
|
9046112407
|
9046112407
90461-12407 Clamp |
90461-12407 |
US $2.62 |
||
|
9046718002
|
9046718002
90467-18002
Clip(For Ventilation Hose)
|
90467-18002 |
— | ||
| replacement | |||||
|
9046718002
|
9046718002
90467-18008 Clip(For Water By-Pass Hose No.2) |
90467-18008 |
from US $1.08 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613241300
|
9613241300
96132-41300
Clip, No.4(For Idle-Up Hose)
|
96132-41300 |
— | ||
| replacement | |||||
|
9613241300
|
9613241300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
