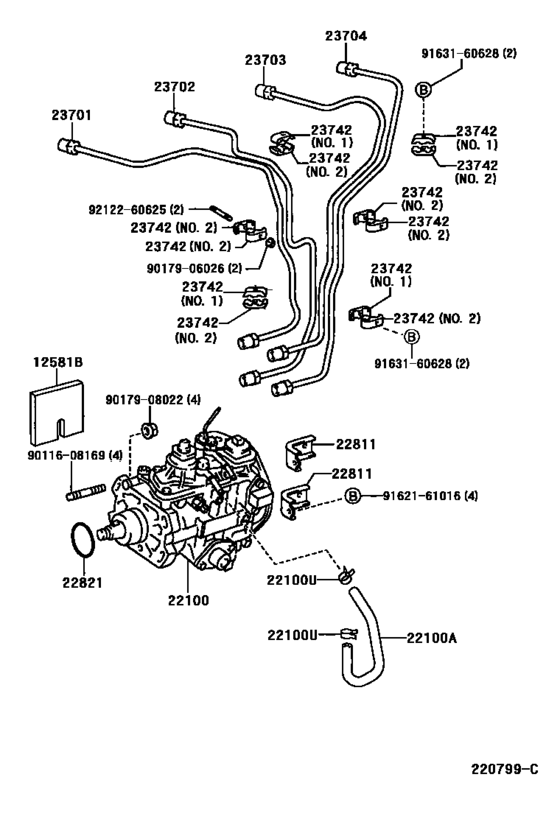

Injection Pump Assembly ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12581B
|
12581B
12581-58050 Insulator, Cylinder Block, No.1[06.1999 - 05.2001] 15BFTE..BXD20 |
12581-58050 |
US $32.47 |
||
| replacement | |||||
|
12581B
|
12581B
12581-58051 Insulator, Cylinder Block, No.1[06.1999 - 05.2001] 15BFTE..BXD20 |
12581-58051 |
US $32.61 |
||
|
12581B
|
12581B
12581-58051 Insulator, Cylinder Block, No.1[05.2001 - 10.2001] 15BFTE..BXD20 |
12581-58051 |
US $32.61 |
||
|
22100
|
22100
22100-5C610 Pump Assy, Injection Or Supply[06.1999 - 08.2001] 15BFTE..BXD20 |
22100-5C610 |
US $4,746.56 |
||
| replacements | |||||
|
22100
|
22100
22100-5C700 Pump Assy, Injection Or Supply[06.1999 - 08.2001] 15BFTE..BXD20 |
22100-5C700 |
US $4,761.12 |
||
|
22100
|
22100
82817-65050 Protector, Wiring Harness, No.1[06.1999 - 08.2001] 15BFTE..BXD20 |
82817-65050 |
US $2.33 |
||
|
22100
|
22100
82989-36010 Wire, Connecting Repair[06.1999 - 08.2001] 15BFTE..BXD20 |
82989-36010 |
US $7.86 |
||
|
22100
|
22100
82989-65020 Wire, Connecting Repair[06.1999 - 08.2001] 15BFTE..BXD20 |
82989-65020 |
US $8.01 |
||
|
22100
|
22100
82999-12020 Wire Sub-assy, Oil Temperature Sender[06.1999 - 08.2001] 15BFTE..BXD20 |
82999-12020 |
US $3.05 |
||
|
22100
|
22100
90463-15002 Clamp (For Accelerator Wire Set)[06.1999 - 08.2001] 15BFTE..BXD20 |
90463-15002 |
US $2.15 |
||
|
22100
|
22100
22100-5C700 Pump Assy, Injection Or Supply[08.2001 -] 15BFTE..BXD20 |
22100-5C700 |
US $4,761.12 |
||
|
22100A
|
22100A
23271-58110 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[06.1999 -] 15BFTE..BXD20 |
23271-58110 |
US $25.04 |
||
|
22100U
|
22100U
90467-18002
Clip(For Ventilation Hose)
[06.1999 -] 15BFTE..BXD20 |
90467-18002 |
— | ||
| replacement | |||||
|
22100U
|
22100U
90467-18008 Clip(For Water By-Pass Hose No.2)[06.1999 -] 15BFTE..BXD20 |
90467-18008 |
from US $1.08 |
||
|
22811
|
22811
22811-58060 Stay, Injection Pump, No.1[06.1999 -] 15BFTE..BXD20 |
22811-58060 |
from US $10.36 |
||
|
22821
|
22821
90301-49003 Gasket, Injection Pump[01.1996 -] 15B#..BXD20 |
90301-49003 |
from US $2.15 |
||
|
23701
|
23701
23701-58070 Pipe Sub-Assy, Injection, No.1[06.1999 - 04.2001] 15BFTE..BXD20 |
23701-58070 |
US $47.32 |
||
| replacement | |||||
|
23701
|
23701
23701-58071
Pipe Sub-Assy, Injection, No.1
[06.1999 - 04.2001] 15BFTE..BXD20 |
23701-58071 |
— | ||
|
23701
|
23701
23701-58071
Pipe Sub-Assy, Injection, No.1
[04.2001 -] 15BFTE..BXD20 |
23701-58071 |
— | ||
|
23702
|
23702
23702-58070 Pipe Sub-Assy, Injection, No.2[06.1999 - 04.2001] 15BFTE..BXD20 |
23702-58070 |
US $47.32 |
||
| replacement | |||||
|
23702
|
23702
23702-58071
Pipe Sub-Assy, Injection, No.2
[06.1999 - 04.2001] 15BFTE..BXD20 |
23702-58071 |
— | ||
|
23702
|
23702
23702-58071
Pipe Sub-Assy, Injection, No.2
[04.2001 -] 15BFTE..BXD20 |
23702-58071 |
— | ||
|
23703
|
23703
23703-58070 Pipe Sub-Assy, Injection, No.3[06.1999 - 04.2001] 15BFTE..BXD20 |
23703-58070 |
US $47.32 |
||
| replacement | |||||
|
23703
|
23703
23703-58071
Pipe Sub-Assy, Injection, No.3
[06.1999 - 04.2001] 15BFTE..BXD20 |
23703-58071 |
— | ||
|
23703
|
23703
23703-58071
Pipe Sub-Assy, Injection, No.3
[04.2001 -] 15BFTE..BXD20 |
23703-58071 |
— | ||
|
23704
|
23704
23704-58070 Pipe Sub-Assy, Injection, No.4[06.1999 - 04.2001] 15BFTE..BXD20 |
23704-58070 |
US $47.32 |
||
| replacement | |||||
|
23704
|
23704
23704-58071
Pipe Sub-Assy, Injection, No.4
[06.1999 - 04.2001] 15BFTE..BXD20 |
23704-58071 |
— | ||
|
23704
|
23704
23704-58071
Pipe Sub-Assy, Injection, No.4
[04.2001 -] 15BFTE..BXD20 |
23704-58071 |
— | ||
|
23742
|
23742
23741-58020 Clamp, Injection Pipe, No.2[05.2001 -] 15BFTE..BXD20 ＮＯ．２ |
23741-58020 |
US $14.71 |
||
|
23742
|
23742
23742-27010 Clamp, Injection Pipe, No.2[06.1999 - 05.2001] 15BFTE..BXD20 ＮＯ．２ |
23742-27010 |
from US $9.46 |
||
|
23742
|
23742
23742-58020 Clamp, Injection Pipe, No.2[06.1999 - 05.2001] 15BFTE..BXD20 ＮＯ．１ |
23742-58020 |
from US $13 |
||
|
23742
|
23742
23742-58030 Clamp, Injection Pipe, No.2[05.2001 -] 15BFTE..BXD20 ＮＯ．１ |
23742-58030 |
US $14.41 |
||
|
9011608169
|
9011608169
90116-08169 Bolt,stud(For Timing Gear Case) |
90116-08169 |
US $4.12 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.48 |
||
|
9162161016
|
9162161016
91621-61016 New Genuine Part |
91621-61016 |
US $1.89 |
||
| replacement | |||||
|
9162161016
|
9162161016
91622-61016 New Genuine Part |
91622-61016 |
US $1 |
||
|
9163160628
|
9163160628
91631-60628 New Genuine Part |
91631-60628 |
US $1.46 |
||
| replacement | |||||
|
9163160628
|
9163160628
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9212260625
|
9212260625
92122-60625 New Genuine Part |
92122-60625 |
US $0.76 |
||
