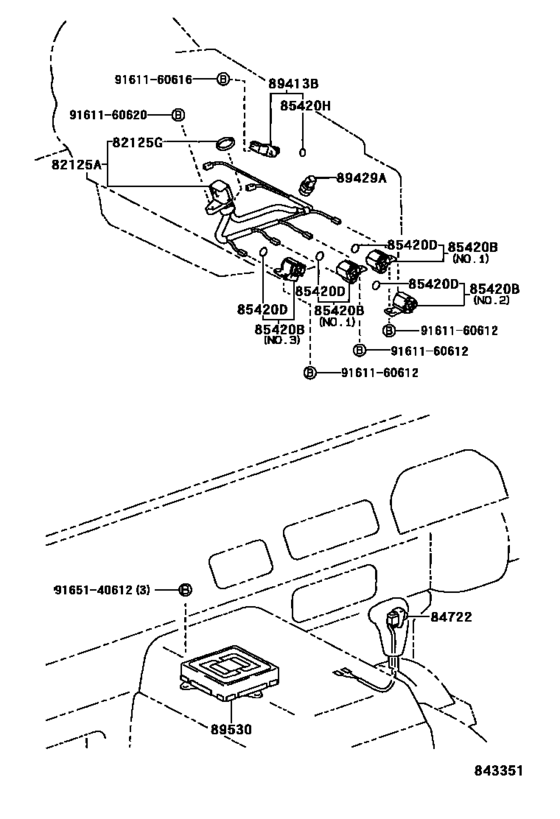

Overdrive & Electronic Controlled Transmission ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125A
|
82125A
82125-60420
Wire, Transmission
[06.1999 -] BXD20 ﾕｵﾝ ｾﾝｻ ﾀﾝｼ = ｸﾞﾚ- |
82125-60420 |
— | ||
| replacement | |||||
|
82125A
|
82125A
82125-25230 Wire, Transmission[06.1999 -] BXD20 ﾕｵﾝ ｾﾝｻ ﾀﾝｼ = ｸﾞﾚ- |
82125-25230 |
US $30.07 |
||
|
82125A
|
82125A
82125-60430
Wire, Transmission
[06.1999 -] BXD20 ﾕｵﾝ ｾﾝｻ ﾀﾝｼ = ﾌﾞﾗﾂｸ |
82125-60430 |
— | ||
| replacement | |||||
|
82125A
|
82125A
82125-25230 Wire, Transmission[06.1999 -] BXD20 ﾕｵﾝ ｾﾝｻ ﾀﾝｼ = ﾌﾞﾗﾂｸ |
82125-25230 |
US $30.07 |
||
|
82125G
|
82125G
96721-24018 Ring, O[01.1996 -] BXD20 |
96721-24018 |
from US $3.69 |
||
|
84722
|
84722
84722-65010 Switch, Transmission Control[01.1996 -] BXD20 |
84722-65010 |
US $36.98 |
||
|
85420B
|
85420B
85420-36010 Solenoid Assy, Transmission[01.1996 - 10.2001] BXD20 ＮＯ．１ |
85420-36010 |
US $141.04 |
||
|
85420B
|
85420B
85420-36020 Solenoid Assy, Transmission[01.1996 - 10.2001] BXD20 ＮＯ．２ |
85420-36020 |
from US $141.04 |
||
|
85420B
|
85420B
85420-36030 Solenoid Assy, Transmission[01.1996 - 10.2001] BXD20 ＮＯ．３ |
85420-36030 |
US $141.04 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[01.1996 - 10.2001] BXD20 |
90301-06004 |
from US $2.15 |
||
|
85420H
|
85420H
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[01.1996 -] BXD20 |
90301-11008 |
from US $0.87 |
||
|
89413B
|
89413B
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[01.1996 -] BXD20 |
89413-32010 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-32011 SENSOR, TRANSMISSION REVOLUTION[01.1996 -] BXD20 |
89413-32011 |
from US $75.94 |
||
|
89429A
|
89429A
89429-34010 Sensor, Temperature[06.1999 -] BXD20 |
89429-34010 |
from US $40.49 |
||
|
89530
|
89530
89530-65030 Computer Assy, Transmission Control[06.1999 -] BXD20 |
89530-65030 |
US $1,217.80 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
