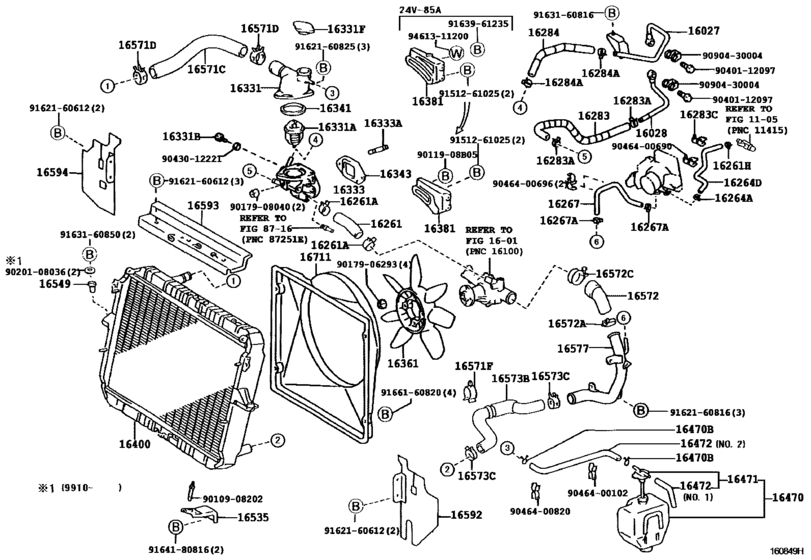

Radiator & Water Outlet ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16027
|
16027
16027-58040 Pipe Sub-Assy, Turbo Water, No.1[06.1999 -] 15BFTE..BXD20 |
16027-58040 |
from US $63.82 |
||
|
16028
|
16028
16028-58020 Pipe Sub-Assy, Turbo Water, No.2[06.1999 -] 15BFTE..BXD20 |
16028-58020 |
from US $21.11 |
||
|
16261
|
16261
16261-58020 Hose, Water By-Pass[06.1999 -] 15BFTE..BXD20 |
16261-58020 |
US $10.57 |
||
|
16261A
|
16261A
90467-28005 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1997 -] 15B#..BXD20 |
90467-28005 |
US $5.02 |
||
|
16261H
|
16261H
90467-15022 Clip Or Clamp(For Ventilation Hose)[06.1999 -] 15BFTE..BXD20 |
90467-15022 |
from US $1.05 |
||
|
16264A
|
16264A
90467-15022 Clip Or Clamp(For Ventilation Hose)[06.1999 -] 15BFTE..BXD20 |
90467-15022 |
from US $1.05 |
||
|
16264D
|
16264D
16264-58050 Hose, Water By-Pass, No.2[06.1999 -] 15BFTE..BXD20 |
16264-58050 |
US $11.71 |
||
|
16267
|
16267
16267-58030 Hose, Water By-Pass, No.3[06.1999 -] 15BFTE..BXD20 |
16267-58030 |
US $7.69 |
||
|
16267A
|
16267A
90467-15022 Clip Or Clamp(For Ventilation Hose)[06.1999 -] 15BFTE..BXD20 |
90467-15022 |
from US $1.05 |
||
|
16283
|
16283
16285-58040 Hose, Water By-Pass, No.6[06.1999 -] 15BFTE..BXD20 |
16285-58040 |
from US $16.77 |
||
|
16283A
|
16283A
90467-15022 Clip Or Clamp(For Ventilation Hose)[01.1996 -] 15B#..BXD20 |
90467-15022 |
from US $1.05 |
||
|
16283C
|
16283C
90464-00769 Clamp Or Clip(For Water By-Pass Hose)[06.1999 -] 15BFTE..BXD20 |
90464-00769 |
US $2.62 |
||
|
16284
|
16284
16284-58060 Hose, Turbo Water, No.1[06.1999 -] 15BFTE..BXD20 |
16284-58060 |
from US $7.69 |
||
|
16284A
|
16284A
90467-15022 Clip Or Clamp(For Ventilation Hose)[06.1999 -] 15BFTE..BXD20 |
90467-15022 |
from US $1.05 |
||
|
16331
|
16331
16331-58100 Outlet, Water[06.1999 -] 15BFTE..BXD20 |
16331-58100 |
US $74.26 |
||
|
16331A
|
16331A
90916-03103 Thermostat[01.1996 -] 15B#..BXD20 |
90916-03103 |
from US $37.09 |
||
|
16331B
|
16331B
90341-12006 Plug(For Water Outlet)[03.1997 -] 15B#..BXD20 |
90341-12006 |
US $4.54 |
||
|
16331F
|
16331F
16401-67150 Cap Sub-Assy(For Water Outlet)[06.1999 -] 15BFTE..BXD20 |
16401-67150 |
from US $16.97 |
||
|
16333
|
16333
16333-58110 Housing, Water Outlet[06.1999 -] 15BFTE..BXD20 |
16333-58110 |
US $117.94 |
||
|
16333A
|
16333A
92112-60832 Bolt, Stud(For Water Outlet Housing)[01.1996 -] 15B#..BXD20 |
92112-60832 |
US $3.76 |
||
|
16341
|
16341
16341-56030 Gasket, Water Outlet[01.1996 -] 15B#..BXD20 |
16341-56030 |
from US $2.51 |
||
|
16343
|
16343
16343-56023 Gasket, Water Outlet Housing[01.1996 -] 15B#..BXD20 |
16343-56023 |
from US $3.29 |
||
|
16361
|
16361
16361-58040 Fan[06.1999 -] 15BFTE..BXD20 |
16361-58040 |
US $147.06 |
||
|
16381
|
16381
16381-58101 Bar, Fan Belt Adjusting[01.1996 -] 15B#..BXD20 ｵﾙﾀﾈ-ﾀ(24V-85A) |
16381-58101 |
US $78.62 |
||
|
16381
|
16381
16381-58150 Bar, Fan Belt Adjusting[06.1999 -] 15BFTE..BXD20 |
16381-58150 |
US $62.32 |
||
|
16400
|
16400
16400-58670
Radiator Assy
[06.1999 -] 15BFTE..BXD20 |
16400-58670 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-58671
Radiator Assy
[06.1999 -] 15BFTE..BXD20 |
16400-58671 |
— | ||
|
16470
|
16470
16470-58101 Tank Assy, Radiator Reserve[06.1999 -] 15BFTE..BXD20 |
16470-58101 |
US $248.98 |
||
| replacement | |||||
|
16470
|
16470
16470-78050 Tank Assy, Radiator Reserve[06.1999 -] 15BFTE..BXD20 |
16470-78050 |
US $58.97 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[01.1996 -] 15B#..BXD20 |
90467-11085 |
from US $0.70 |
||
|
16471
|
16471
16405-58081
Cap Sub-Assy, Reserve Tank
[06.1999 -] 15BFTE..BXD20 |
16405-58081 |
— | ||
| replacement | |||||
|
16471
|
16471
16405-78050
Cap Sub-Assy, Reserve Tank
[06.1999 -] 15BFTE..BXD20 |
16405-78050 |
— | ||
|
16472
|
16472
16567-58140 Hose, Breather[06.1999 -] 15BFTE..BXD20 長さ＝７５０,ＮＯ．２ |
16567-58140 |
US $16.77 |
||
|
16472
|
16472
85338-22020 Hose, Breather[06.1999 -] 15BFTE..BXD20 ＮＯ．１ |
85338-22020 |
US $2.45 |
||
|
16535
|
16535
16535-58040 Support, Radiator, Lower[06.1999 -] 15BFTE..BXD20 |
16535-58040 |
US $27.37 |
||
| replacement | |||||
|
16535
|
16535
16535-58041 Support, Radiator, Lower[06.1999 -] 15BFTE..BXD20 |
16535-58041 |
US $17.18 |
||
|
16549
|
16549
16549-61010 Collar, Radiator Support, No.2[01.1996 -] 15B#..BXD20 |
16549-61010 |
from US $3.14 |
||
|
16571C
|
16571C
16571-58200 Hose, Radiator, Inlet[06.1999 -] 15BFTE..BXD20 |
16571-58200 |
US $27.96 |
||
|
16571D
|
16571D
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[01.1996 -] 15B#..BXD20 |
90467-42001 |
— | ||
| replacement | |||||
|
16571D
|
16571D
90466-41008 Clamp, Hose(For Radiator Hose)[01.1996 -] 15B#..BXD20 |
90466-41008 |
from US $4.07 |
||
|
16571F
|
16571F
90469-45001 Clamp, Sub Radiator Hose[01.1996 -] 15B#..BXD20 |
90469-45001 |
US $13.26 |
||
|
16572
|
16572
16572-58110 Hose, Radiator, Outlet[06.1999 -] 15BFTE..BXD20 |
16572-58110 |
from US $21.53 |
||
|
16572A
|
16572A
90467-41004
Clamp Or Clip, Hose(For Radiator Outlet No.1)
[06.1999 -] 15BFTE..BXD20 |
90467-41004 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90466-41003 Clip, Radiator Hose, No.1[06.1999 -] 15BFTE..BXD20 |
90466-41003 |
from US $8.27 |
||
|
16572C
|
16572C
90467-48003 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1997 -] 15B#..BXD20 |
90467-48003 |
from US $5.11 |
||
|
16573B
|
16573B
16573-58140 Hose, Radiator, No.3[06.1999 -] 15BFTE..BXD20 |
16573-58140 |
US $49.27 |
||
|
16573C
|
16573C
90467-41005 Clamp Or Clip, Sub Radiator Hose[01.1996 -] 15B#..BXD20 |
90467-41005 |
US $12.54 |
||
|
16577
|
16577
16577-58090 Pipe, Radiator, No.7[06.1999 -] 15BFTE..BXD20 |
16577-58090 |
US $122.30 |
||
|
16592
|
16592
16592-58050 Guide, Radiator Air, No.3[01.1996 -] 15B#..BXD20 |
16592-58050 |
US $32.76 |
||
|
16593
|
16593
16593-58140 Guide, Radiator Air, No.1[06.1999 -] 15BFTE..BXD20 |
16593-58140 |
US $82.99 |
||
|
16594
|
16594
16594-58050 Guide, Radiator Air, No.2[01.1996 -] 15B#..BXD20 |
16594-58050 |
US $20.53 |
||
|
16711
|
16711
16711-58240 Shroud Sub-Assy, Fan[06.1999 -] 15BFTE..BXD20 |
16711-58240 |
US $165.98 |
||
|
9011908B05
|
9011908B05
90119-08B05 New Genuine Part |
90119-08B05 |
US $2.51 |
||
|
9010908202
|
9010908202
90109-08202 New Genuine Part |
90109-08202 |
US $2.77 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.82 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9020108036
|
9020108036
90201-08036 WASHER |
90201-08036 |
from US $2.87 |
||
|
9040112097
|
9040112097
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe) |
90401-12097 |
from US $2.87 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9046400690
|
9046400690
90464-00690 New Genuine Part |
90464-00690 |
US $3.06 |
||
|
9046400696
|
9046400696
90464-00696 Clamp, No.2(For Vacuum Hose) |
90464-00696 |
US $0.96 |
||
|
9046400820
|
9046400820
90464-00820 New Genuine Part |
90464-00820 |
US $2.77 |
||
|
9090430004
|
9090430004
90904-30004 Gasket(For Turbo Oil Inlet Pipe) |
90904-30004 |
from US $5.38 |
||
|
9151261025
|
9151261025
91512-61025
BOLT WASHER BASED H
|
91512-61025 |
— | ||
| replacement | |||||
|
9151261025
|
9151261025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.93 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.05 |
||
|
9163160850
|
9163160850
91631-60850 BOLT WWASHER |
91631-60850 |
US $1.79 |
||
|
9163961235
|
9163961235
91639-61235 New Genuine Part |
91639-61235 |
US $4.08 |
||
|
9164180816
|
9164180816
91641-80816 BOLT W/WASHER |
91641-80816 |
US $1.97 |
||
|
9166160820
|
9166160820
91661-60820
New Genuine Part
|
91661-60820 |
— | ||
| replacement | |||||
|
9166160820
|
9166160820
91661-B0820 Bolt |
91661-B0820 |
US $2.87 |
||
|
9461311200
|
9461311200
94613-11200 WASHER |
94613-11200 |
US $1.25 |
||
