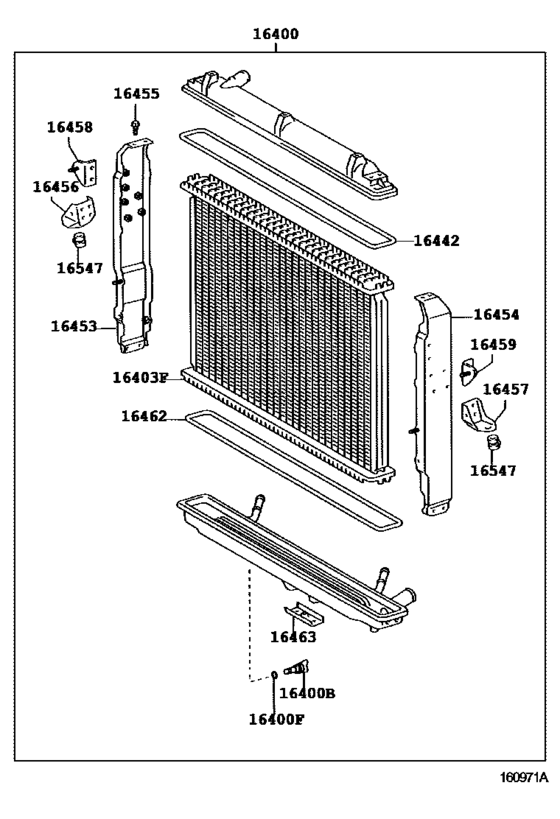

Radiator & Water Outlet ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400
|
16400
16400-58670
Radiator Assy
[06.1999 -] 15BFTE..BXD20 |
16400-58670 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-58671
Radiator Assy
[06.1999 -] 15BFTE..BXD20 |
16400-58671 |
— | ||
|
16400B
|
16400B
16417-15210 Plug, Radiator Drain Cock[06.1999 -] 15BFTE..BXD20 |
16417-15210 |
from US $3.63 |
||
|
16400F
|
16400F
16418-15520 Packing(For Radiator Drain Cock)[06.1999 -] 15BFTE..BXD20 |
16418-15520 |
from US $1.52 |
||
|
16403F
|
16403F
16403-58670 Core Sub-Assy, Radiator[06.1999 -] 15BFTE..BXD20 |
16403-58670 |
US $500.86 |
||
|
16442
|
16442
16442-58460 Ring, O(For Radiator Upper Tank)[06.1999 -] 15BFTE..BXD20 |
16442-58460 |
US $10.63 |
||
|
16453
|
16453
16453-58670 Plate, Radiator Side[06.1999 -] 15BFTE..BXD20 |
16453-58670 |
US $54.16 |
||
|
16454
|
16454
16454-58670 Plate, Radiator Side[06.1999 -] 15BFTE..BXD20 |
16454-58670 |
US $85.90 |
||
|
16455
|
16455
16455-67020 Bolt, Radiator Side Support Plate[06.1999 -] 15BFTE..BXD20 |
16455-67020 |
US $3.40 |
||
|
16456
|
16456
16456-58670 Bracket, Radiator Mounting, Rh[06.1999 -] 15BFTE..BXD20 |
16456-58670 |
US $9.76 |
||
|
16457
|
16457
16457-58670 Bracket, Radiator Mounting, Lh[06.1999 -] 15BFTE..BXD20 |
16457-58670 |
US $9.76 |
||
|
16458
|
16458
16458-58670 Bracket, Condenser Mounting, Rh[06.1999 -] 15BFTE..BXD20 |
16458-58670 |
US $10.34 |
||
|
16459
|
16459
16459-58670 Bracket, Condenser Mounting, Lh[06.1999 -] 15BFTE..BXD20 |
16459-58670 |
US $10.34 |
||
|
16462
|
16462
16442-58460 Ring, O(For Radiator Upper Tank)[06.1999 -] 15BFTE..BXD20 |
16442-58460 |
US $10.63 |
||
|
16463
|
16463
16463-58670 Plate, Radiator Tank, Lock, Lower[06.1999 -] 15BFTE..BXD20 |
16463-58670 |
US $5.24 |
||
|
16547
|
16547
16547-68070 Bush, Radiator Support, No.1[06.1999 -] 15BFTE..BXD20 |
16547-68070 |
from US $1.41 |
||
