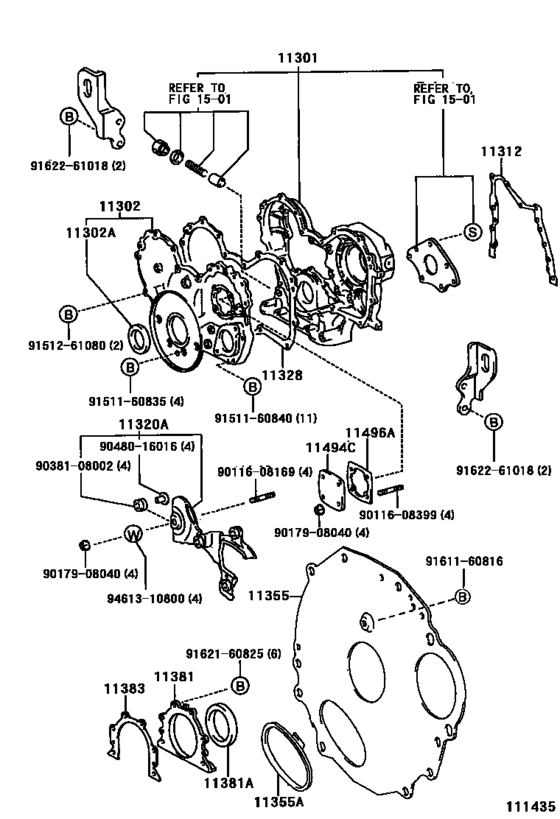

Timing Gear Cover & Rear End Plate ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301
|
11301
11301-58040 Case Sub-Assy, Timing Gear[06.1999 -] 15BFTE..BXD20 |
11301-58040 |
US $728 |
||
|
11302
|
11302
11302-58060 Cover Sub-Assy, Timing Chain Or Belt[06.1999 -] 15BFTE..BXD20 |
11302-58060 |
US $247.52 |
||
|
11302A
|
11302A
90311-50013 Seal, Oil(For Timing Chain Or Belt Cover)[01.1996 -] 15B#..BXD20 |
90311-50013 |
from US $10.91 |
||
|
11312
|
11312
11312-58010 Gasket, Front End Plate[06.1999 -] 15BFTE..BXD20 |
11312-58010 |
US $17.30 |
||
|
11320A
|
11320A
11320-58030 Cover Assy, Timing Gear, No.2[06.1999 -] 15BFTE..BXD20 |
11320-58030 |
US $70.76 |
||
|
11328
|
11328
11328-58020 Gasket, Timing Gear Or Chain Cover[06.1999 -] 15BFTE..BXD20 |
11328-58020 |
US $13.83 |
||
|
11355
|
11355
11355-58022
Plate, Rear End
[01.1996 -] 15B#..BXD20 |
11355-58022 |
— | ||
|
11355A
|
11355A
90950-01458 Cover(For Flywheel Housing)[01.1996 -] 15B#..BXD20 |
90950-01458 |
from US $3.05 |
||
|
11381
|
11381
11381-58011 Retainer, Engine Rear Oil Seal[05.1999 -] 15B#..BXD20 |
11381-58011 |
US $62.90 |
||
|
11381A
|
11381A
90311-95011 Seal, Engine Rear Oil[01.1996 -] 15B#..BXD20 |
90311-95011 |
from US $27.72 |
||
|
11383
|
11383
11383-56040 Gasket, Engine Rear Oil Seal Retainer[01.1996 -] 15B#..BXD20 |
11383-56040 |
from US $4.07 |
||
|
11494C
|
11494C
11494-58010 Plate, Oil Hole Cover[06.1999 -] 15BFTE..BXD20 |
11494-58010 |
US $26.94 |
||
|
11496A
|
11496A
11496-58010 Gasket, Oil Hole Cover[06.1999 -] 15BFTE..BXD20 |
11496-58010 |
US $9.17 |
||
|
9011608169
|
9011608169
90116-08169 Bolt,stud(For Timing Gear Case) |
90116-08169 |
US $4.12 |
||
|
9011608399
|
9011608399
90116-08399 New Genuine Part |
90116-08399 |
US $2.04 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9038108002
|
9038108002
90381-08002 Grommet(For Intake Air Connector) |
90381-08002 |
US $2.04 |
||
|
9048016016
|
9048016016
90480-16016 New Genuine Part |
90480-16016 |
US $1.46 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.37 |
||
|
9151160840
|
9151160840
91511-60840
Bolt(For Alternator)
|
91511-60840 |
— | ||
| replacement | |||||
|
9151160840
|
9151160840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $1.41 |
||
|
9151261080
|
9151261080
91512-61080 Bolt |
91512-61080 |
US $4.27 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9162261018
|
9162261018
91622-61018 New Genuine Part |
91622-61018 |
US $2.33 |
||
| replacement | |||||
|
9162261018
|
9162261018
91622-B1018 BOLT WWASHER |
91622-B1018 |
from US $0.86 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
