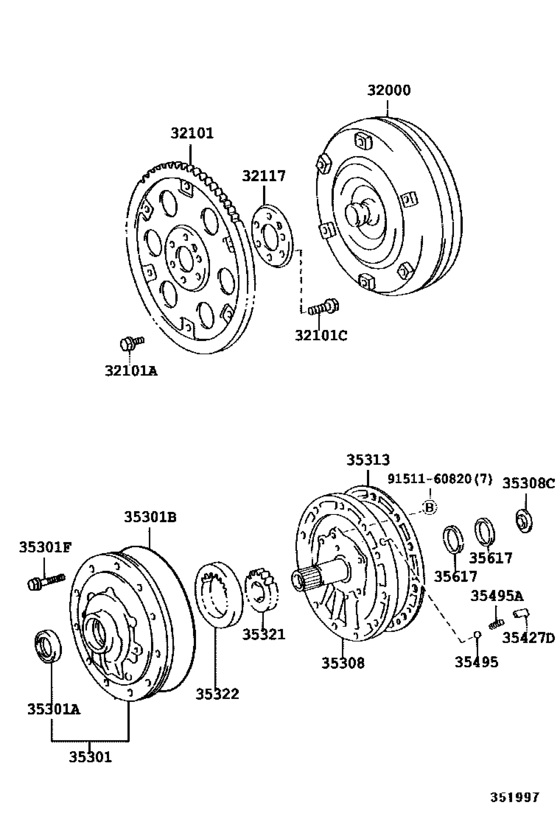

Torque Converter, Front Oil Pump & Chain (Atm) ([06.1999 - ] A442F (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-36030
Converter Assy, Torque
[06.1999 - 10.2001] BXD20 |
32000-36030 |
— | ||
| replacement | |||||
|
32000
|
32000
32000-37020 Converter Assy, Torque[06.1999 - 10.2001] BXD20 |
32000-37020 |
US $1,434.88 |
||
|
32101
|
32101
32101-65020 Gear Sub-Assy, Drive Plate & Ring[06.1999 -] BXD20 |
32101-65020 |
US $445.54 |
||
|
32101A
|
32101A
90105-10472 Bolt(For Drive Plate & Torque Converter Setting)[06.1999 -] BXD20 ＊１０−１．２５ＰＸ１２．２−８．９,イエロー |
90105-10472 |
US $2.18 |
||
|
32101A
|
32101A
90105-10473 Bolt(For Drive Plate & Torque Converter Setting)[06.1999 -] BXD20 ＊１０−１．２５ＰＸ１２．２−８．９,ブルー |
90105-10473 |
US $2.18 |
||
|
32101C
|
32101C
90105-14144 Bolt, Hexagon(For Drive Plate Setting)[06.1999 -] BXD20 |
90105-14144 |
US $4.08 |
||
|
32117
|
32117
32117-65020 Spacer, Drive Plate, Rear[06.1999 -] BXD20 |
32117-65020 |
US $12.23 |
||
|
35301
|
35301
35301-60020 Body Sub-Assy, Front Oil Pump[06.1999 - 10.2001] BXD20 |
35301-60020 |
from US $304.10 |
||
|
35301A
|
35301A
90311-42010 Seal, Oil (For Front Oil Pump)[01.1996 - 10.2001] BXD20 |
90311-42010 |
from US $7.37 |
||
|
35301B
|
35301B
90301-99029 Ring, O (For Front Oil Pump Body)[01.1996 - 10.2001] BXD20 |
90301-99029 |
from US $5.02 |
||
|
35301F
|
35301F
90105-08212 Bolt (For Front Oil Pump Setting)[01.1996 - 10.2001] BXD20 ＊８−１．２５ＰＸ６０−３０ |
90105-08212 |
US $1.16 |
||
|
35301F
|
35301F
90105-08213 Bolt (For Front Oil Pump Setting)[01.1996 - 10.2001] BXD20 ＊８−１．２５ＰＸ６０−２０ |
90105-08213 |
US $1.16 |
||
|
35308
|
35308
35308-60080 Cover Sub-Assy, Front Oil Pump[06.1999 - 10.2001] BXD20 |
35308-60080 |
US $571.33 |
||
|
35308C
|
35308C
35789-36040 Race, Thrust Bearing (For Front Oil Pump Cover)[01.1996 - 10.2001] BXD20 厚さ＝０．８ |
35789-36040 |
US $6.99 |
||
|
35308C
|
35308C
35789-36050 Race, Thrust Bearing (For Front Oil Pump Cover)[01.1996 - 10.2001] BXD20 厚さ＝１．０ |
35789-36050 |
US $6.99 |
||
|
35308C
|
35308C
35789-36060 Race, Thrust Bearing (For Front Oil Pump Cover)[01.1996 - 10.2001] BXD20 厚さ＝１．４ |
35789-36060 |
US $8.04 |
||
|
35313
|
35313
35313-60010 Gasket, Front Oil Pump Cover[01.1996 - 10.2001] BXD20 |
35313-60010 |
from US $5.93 |
||
|
35321
|
35321
35321-60040 Gear, Front Oil Pump Drive[06.1999 - 10.2001] BXD20 厚さ＝１３．９４８−１３．９６２ |
35321-60040 |
US $44.99 |
||
|
35321
|
35321
35321-60050 Gear, Front Oil Pump Drive[06.1999 - 10.2001] BXD20 厚さ＝１３．９６３−１３．９７７ |
35321-60050 |
US $44.99 |
||
|
35321
|
35321
35321-60060 Gear, Front Oil Pump Drive[06.1999 - 10.2001] BXD20 厚さ＝１３．９７８−１３．９９２ |
35321-60060 |
US $47.35 |
||
|
35321
|
35321
35321-60070 Gear, Front Oil Pump Drive[06.1999 - 10.2001] BXD20 厚さ＝１３．９９３−１４．００７ |
35321-60070 |
US $44.99 |
||
|
35321
|
35321
35321-60080 Gear, Front Oil Pump Drive[06.1999 - 10.2001] BXD20 厚さ＝１４．００８−１４．０２２ |
35321-60080 |
US $40.05 |
||
|
35322
|
35322
35322-60040 Gear, Front Oil Pump Driven[06.1999 - 10.2001] BXD20 厚さ＝１３．９４８−１３．９６２ |
35322-60040 |
from US $45.57 |
||
|
35322
|
35322
35322-60050 Gear, Front Oil Pump Driven[06.1999 - 10.2001] BXD20 厚さ＝１３．９６３−１３．９７７ |
35322-60050 |
US $45.57 |
||
|
35322
|
35322
35322-60060 Gear, Front Oil Pump Driven[06.1999 - 10.2001] BXD20 厚さ＝１３．９７８−１３．９９２ |
35322-60060 |
US $45.57 |
||
|
35322
|
35322
35322-60070 Gear, Front Oil Pump Driven[06.1999 - 10.2001] BXD20 厚さ＝１３．９９３−１４．００７ |
35322-60070 |
US $45.57 |
||
|
35322
|
35322
35322-60080 Gear, Front Oil Pump Driven[06.1999 - 10.2001] BXD20 厚さ＝１４．００８−１４．０２２ |
35322-60080 |
US $40.56 |
||
|
35427D
|
35427D
35427-60010 Seat, Check Valve Spring[11.1998 - 10.2001] BXD20 |
35427-60010 |
US $1.46 |
||
|
35495
|
35495
35495-60010 Ball, Check[11.1998 - 10.2001] BXD20 |
35495-60010 |
US $4.37 |
||
|
35495A
|
35495A
90501-18106 Spring, Compression (For Check Ball)[11.1998 - 10.2001] BXD20 |
90501-18106 |
US $1.31 |
||
|
35617
|
35617
35617-60010 Ring, Clutch Drum Oil Seal[01.1996 - 10.2001] BXD20 |
35617-60010 |
US $21.50 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
