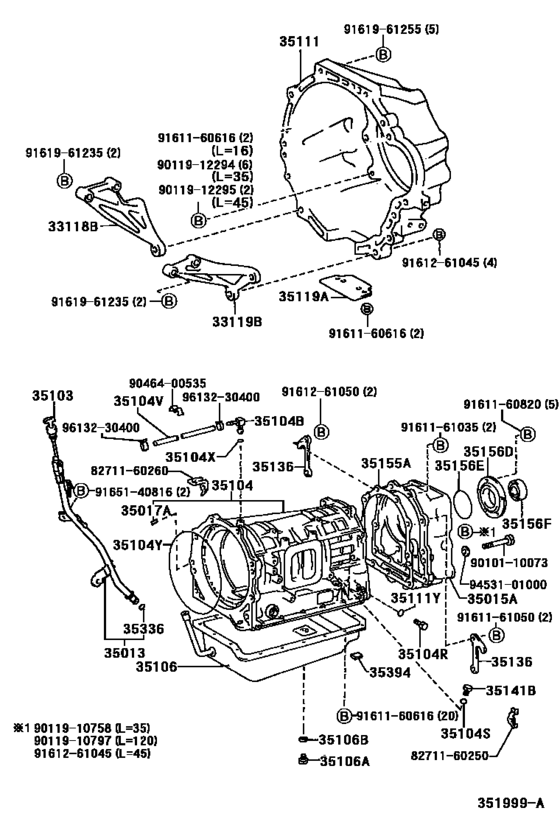

Transmission Case & Oil Pan (Atm) ([06.1999 - ] A442F (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-36021 Plate, Stiffener, Rh(Mtm)[01.1996 -] BXD20 |
33118-36021 |
from US $27.26 |
||
|
33119B
|
33119B
33119-36042 Plate, Stiffener, Lh(Mtm)[01.1996 -] BXD20 |
33119-36042 |
US $24.81 |
||
|
35013
|
35013
35013-65030 Tube Sub-Assy, Transmission Oil Filler[06.1999 -] BXD20 |
35013-65030 |
US $51.98 |
||
|
35015A
|
35015A
35015-36010 Adapter Sub-Assy, Transmission Case, Rear[06.1999 - 10.2001] BXD20 |
35015-36010 |
US $605.70 |
||
|
35017A
|
35017A
90250-12146 Pin, Straight(For Flywheel Housing)[06.1999 - 10.2001] BXD20 |
90250-12146 |
US $2.15 |
||
|
35103
|
35103
35103-65030
Gage Sub-Assy, Transmission Oil Level
[06.1999 -] BXD20 |
35103-65030 |
— | ||
|
35104
|
35104
35104-36080 Case Sub-Assy, Automatic Transmission[06.1999 - 10.2001] BXD20 |
35104-36080 |
US $875.06 |
||
|
35104B
|
35104B
90930-03094 Plug, Breather, No.1 (Atm)[01.1996 - 10.2001] BXD20 |
90930-03094 |
from US $3.33 |
||
|
35104R
|
35104R
90341-08001 Plug, Transaxle Case, No.1[01.1996 - 10.2001] BXD20 |
90341-08001 |
from US $1.48 |
||
|
35104S
|
35104S
90301-10189 Ring, O(For Oil Cooler Tube Union)[06.1999 - 10.2001] BXD20 |
90301-10189 |
from US $2.57 |
||
|
35104V
|
35104V
90445-11083 Hose(For Transmission Breather)[01.1996 - 10.2001] BXD20 |
90445-11083 |
US $10.19 |
||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[01.1996 - 10.2001] BXD20 |
90301-06005 |
from US $2.24 |
||
|
35104Y
|
35104Y
90301-99067 Ring, O (For Automatic Transmission Case)[01.1996 - 10.2001] BXD20 |
90301-99067 |
from US $3.23 |
||
|
35106
|
35106
35106-65010 Pan Sub-Assy, Automatic Transmission Oil[01.1996 - 10.2001] BXD20 |
35106-65010 |
US $169.48 |
||
|
35106A
|
35106A
90341-18057 Drain Plug (with Magnet)[01.1996 - 10.2001] BXD20 |
90341-18057 |
from US $6.27 |
||
|
35106B
|
35106B
12157-10010 Gasket (For Drain Plug)[01.1996 - 10.2001] BXD20 |
12157-10010 |
from US $0.72 |
||
|
35111
|
35111
35111-65010 Housing, Automatic Transmission[01.1996 - 10.2001] BXD20 |
35111-65010 |
US $923.10 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[01.1996 - 10.2001] BXD20 |
90301-06196 |
from US $2.36 |
||
|
35119A
|
35119A
35119-36010 Cover, Transmission Housing[01.1996 - 10.2001] BXD20 |
35119-36010 |
US $19.22 |
||
|
35136
|
35136
35136-60020 Hanger, Transmission,no.1[01.1996 - 10.2001] BXD20 |
35136-60020 |
US $7.57 |
||
|
35141B
|
35141B
90341-13001 Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)[06.1999 - 10.2001] BXD20 |
90341-13001 |
US $2.33 |
||
|
35155A
|
35155A
35182-60010 Gasket, Transmission Case Adapter[01.1996 - 10.2001] BXD20 |
35182-60010 |
from US $8.24 |
||
|
35156D
|
35156D
35156-60010 Cover, Transmission Case Rear Adapter[01.1996 - 10.2001] BXD20 |
35156-60010 |
US $15.72 |
||
|
35156E
|
35156E
90301-81005 Ring, O(Transmission Case Rear Adapter)[01.1996 - 10.2001] BXD20 |
90301-81005 |
from US $3.44 |
||
|
35156F
|
35156F
90311-48016 Seal, Oil(For Transmission Oil Pump Cover)[01.1996 - 10.2001] BXD20 |
90311-48016 |
from US $5.56 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[01.1996 -] BXD20 |
90301-09173 |
from US $1.96 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[06.1999 - 10.2001] BXD20 |
35394-30011 |
from US $5.43 |
||
|
8271160250
|
8271160250
82711-60250 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60250 |
US $2.33 |
||
|
8271160260
|
8271160260
82711-60260
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60260 |
— | ||
|
9010110073
|
9010110073
90101-10073 Shaft, Clutch Pedal |
90101-10073 |
US $1.31 |
||
|
9011910758
|
9011910758
90119-10758 New Genuine Part |
90119-10758 |
US $1.31 |
||
|
9011910797
|
9011910797
90119-10797 New Genuine Part |
90119-10797 |
US $3.20 |
||
|
9011912294
|
9011912294
90119-12294 Bolt (For Transmission Housing & Case Setting) |
90119-12294 |
US $2.04 |
||
|
9011912295
|
9011912295
90119-12295 Bolt (For Transmission Housing & Case Setting) |
90119-12295 |
US $2.04 |
||
|
9046400535
|
9046400535
90464-00535 Clamp, Throttle Cable, No.1 |
90464-00535 |
US $2.15 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161161050
|
9161161050
91611-61050
Bolt(For Transaxle & Engine Setting)
|
91611-61050 |
— | ||
| replacement | |||||
|
9161161050
|
9161161050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.24 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161261050
|
9161261050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.24 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
