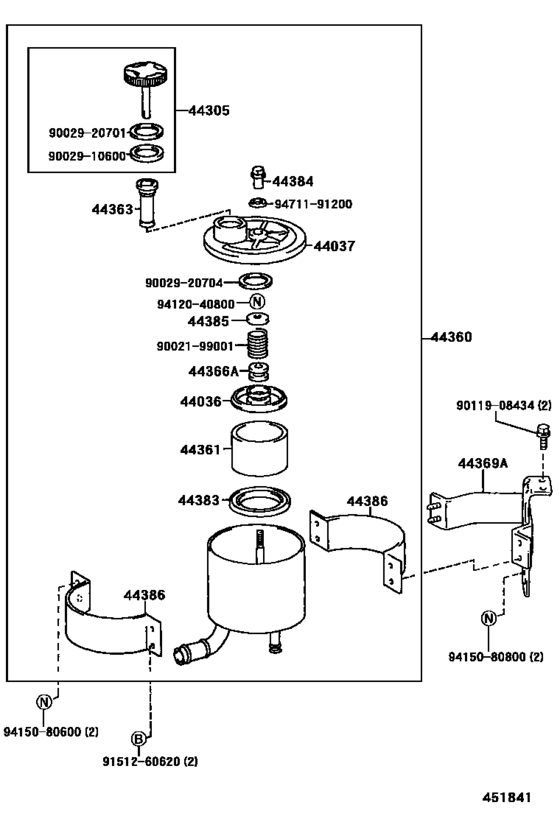

Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44036
|
44036
44036-36020 Cover Sub-Assy(For Vane Pump Oil Filter)[01.1996 -] BXD20 |
44036-36020 |
US $21.11 |
||
|
44037
|
44037
44037-36020 Cover Sub-Assy, Oil Reservoir[01.1996 -] BXD20 |
44037-36020 |
US $47.61 |
||
|
44305
|
44305
44305-36020 Cap Sub-Assy, Vane Pump Oil Reservoir[01.1996 -] BXD20 |
44305-36020 |
US $16.89 |
||
|
44360
|
44360
44360-65020 Reservoir Assy, Vane Pump Oil[06.1999 -] BXD20 |
44360-65020 |
US $85.90 |
||
|
44361
|
44361
44361-37010
Filter, Oil(For Vane Pump)
[01.1996 -] BXD20 |
44361-37010 |
— | ||
|
44363
|
44363
44363-37130 Strainer, Oil(For Vane Pump)[06.1999 -] BXD20 |
44363-37130 |
US $11.94 |
||
|
44366A
|
44366A
44366-37010
Seat, Pump Pulley
[01.1996 -] BXD20 |
44366-37010 |
— | ||
|
44369A
|
44369A
44369-65020 Bracket, Oil Reservoir, No.1[06.1999 -] BXD20 |
44369-65020 |
US $23.59 |
||
|
44383
|
44383
44383-37010
Seal, Oil(For Vane Pump Oil Filter)
[01.1996 -] BXD20 |
44383-37010 |
— | ||
|
44384
|
44384
44384-37010
Nut(For Oil Reservoir Cover)
[01.1996 -] BXD20 |
44384-37010 |
— | ||
|
44385
|
44385
44385-37010
Support, Spring, Upper(For Vane Pump Oil Reservoir)
[01.1996 -] BXD20 |
44385-37010 |
— | ||
|
44386
|
44386
44386-37010
Bracket(For Vane Pump Oil Reservoir)
[01.1996 -] BXD20 |
44386-37010 |
— | ||
|
9002199001
|
9002199001
90021-99001
New Genuine Part
|
90021-99001 |
— | ||
|
9002910600
|
9002910600
90029-10600 TOOL |
90029-10600 |
US $6.26 |
||
|
9002920701
|
9002920701
90029-20701 Seal, Dust(For Oil Reservoir Cover) |
90029-20701 |
US $7.34 |
||
|
9002920704
|
9002920704
90029-20704 Seal, Dust(For Oil Reservoir Cover) |
90029-20704 |
US $9.76 |
||
|
9011908434
|
9011908434
90119-08434 New Genuine Part |
90119-08434 |
US $2.15 |
||
|
9151260620
|
9151260620
91512-60620 Bolt(For Clutch Release Bearing Hub Retainer) |
91512-60620 |
US $1.46 |
||
| replacement | |||||
|
9151260620
|
9151260620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.70 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.76 |
||
|
9471191200
|
9471191200
94711-91200
New Genuine Part
|
94711-91200 |
— | ||
