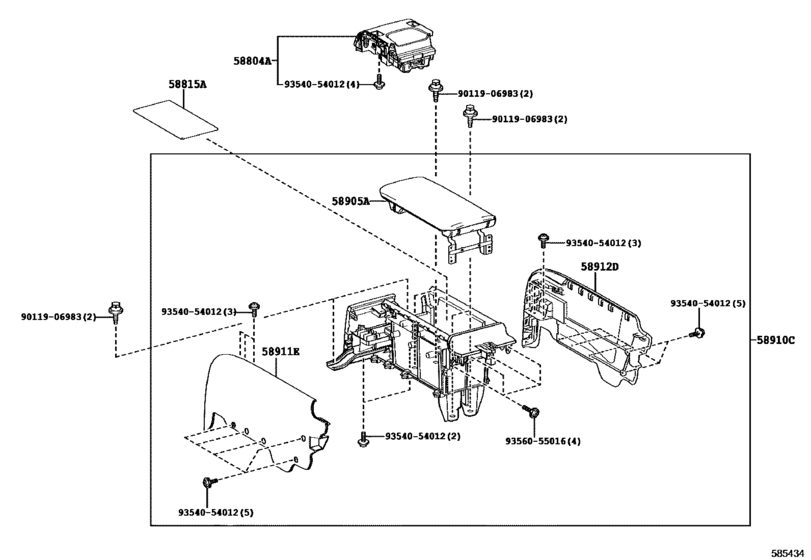

Console Box & Bracket ([12.2014 - ] ﾘﾔｼｰﾄ ｺﾝｿｰﾙﾎﾞｯｸｽ (1412- )) Diagram Toyota MIRAI
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 12.2014
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58804A
|
58804A
58804-62020 Panel Sub-Assy, Console, Upper[12.2014 -] JPD10 |
58804-62020 |
US $183.46 |
||
|
58815A
|
58815A
58815-62010 Carpet, Console Box[12.2014 -] JPD10 |
58815-62010 |
US $5.39 |
||
|
58905A
|
58905A
58905-62020-A0 Door Sub-Assy, Console Compartment, Rear[12.2014 -] JPD10 WARM WHITE,TRIM00 |
58905-62020-A0 |
US $275.18 |
||
|
58905A
|
58905A
58905-62020-C0 Door Sub-Assy, Console Compartment, Rear[12.2014 -] JPD10 BLACK,TRIM8# |
58905-62020-C0 |
US $275.18 |
||
|
58905A
|
58905A
58905-62020-J0 Door Sub-Assy, Console Compartment, Rear[12.2014 -] JPD10 BLUE BLACK,TRIM01 |
58905-62020-J0 |
US $275.18 |
||
|
58910C
|
58910C
58910-62010-A0 Box Assy, Console, Rear[12.2014 -] JPD10 WARM WHITE,TRIM00 |
58910-62010-A0 |
US $853.22 |
||
|
58910C
|
58910C
58910-62010-C0 Box Assy, Console, Rear[12.2014 -] JPD10 BLACK,TRIM8# |
58910-62010-C0 |
US $853.22 |
||
|
58910C
|
58910C
58910-62010-J0 Box Assy, Console, Rear[12.2014 -] JPD10 BLUE BLACK,TRIM01 |
58910-62010-J0 |
US $853.22 |
||
|
58911E
|
58911E
58911-62030-A0 Panel, Box Side, Rear[12.2014 -] JPD10 WARM WHITE,TRIM00 |
58911-62030-A0 |
US $193.65 |
||
|
58911E
|
58911E
58911-62030-C0 Panel, Box Side, Rear[12.2014 -] JPD10 BLACK,TRIM8# |
58911-62030-C0 |
US $193.65 |
||
|
58911E
|
58911E
58911-62030-J0 Panel, Box Side, Rear[12.2014 -] JPD10 BLUE BLACK,TRIM01 |
58911-62030-J0 |
US $193.65 |
||
|
58912D
|
58912D
58912-62030-A0 Panel, Box, No.2[12.2014 -] JPD10 WARM WHITE,TRIM00 |
58912-62030-A0 |
US $193.65 |
||
|
58912D
|
58912D
58912-62030-C0 Panel, Box, No.2[12.2014 -] JPD10 BLACK,TRIM8# |
58912-62030-C0 |
US $193.65 |
||
|
58912D
|
58912D
58912-62030-J0 Panel, Box, No.2[12.2014 -] JPD10 BLUE BLACK,TRIM01 |
58912-62030-J0 |
US $193.65 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $1.08 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.66 |
