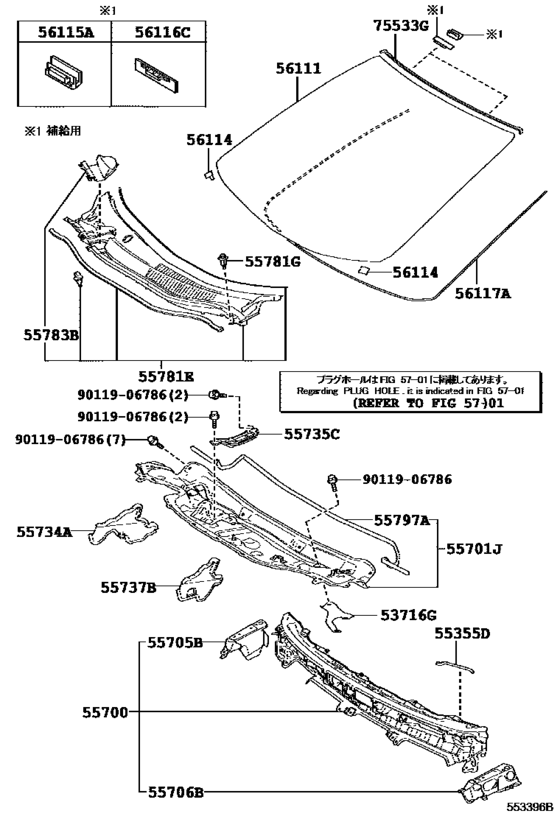

Cowl Panel & Windshield Glass ([12.2014 - ] (1412- )) Diagram Toyota MIRAI
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 12.2014
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53716G
|
53716G
53716-75010 Extension, Front Fender Apron, Rear LhFRONT FENDER APRON, REAR LH [12.2014 -] JPD10 |
53716-75010 |
US $13.54 |
||
|
55355D
|
55355D
55355-62020 Cushion, Instrument Panel, No.1[12.2014 -] JPD10 |
55355-62020 |
US $1.31 |
||
|
55700
|
55700
55700-62010 Panel Assy, Front[12.2014 -] JPD10 |
55700-62010 |
US $193.65 |
||
|
55701J
|
55701J
55701-62010 Panel Sub-Assy, Cowl Top, Outer[12.2014 -] JPD10 |
55701-62010 |
US $232.96 |
||
|
55705B
|
55705B
55705-62010 Panel Sub-Assy, Cowl Top Side, Rh[12.2014 -] JPD10 |
55705-62010 |
US $25.48 |
||
|
55706B
|
55706B
55706-62010 Panel Sub-Assy, Cowl Top Side, Lh[12.2014 -] JPD10 |
55706-62010 |
US $25.48 |
||
|
55734A
|
55734A
55734-62010 Plate, Water Guard, Rh[12.2014 -] JPD10 |
55734-62010 |
US $16.16 |
||
|
55735C
|
55735C
55735-62010 Reinforcement, Cowl Body Mounting, Rh[12.2014 -] JPD10 |
55735-62010 |
US $25.48 |
||
|
55737B
|
55737B
55738-62010 Seal, Heater Air Duct Splash Shield, No.1[12.2014 -] JPD10 |
55738-62010 |
US $15.43 |
||
|
55781E
|
55781E
55708-62050 Louver Sub-Assy, Cowl Top Ventilator[12.2014 -] JPD10 |
55708-62050 |
US $122.30 |
||
|
55781E
|
55781E
55708-62070 Louver Sub-Assy, Cowl Top Ventilator[12.2014 -] JPD10 寒冷地仕様 |
55708-62070 |
US $135.41 |
||
|
55781G
|
55781G
90467-07076-C0 Clip, Radiator Grille[12.2014 - 03.2017] JPD10 BLACK |
90467-07076-C0 |
from US $0.92 |
||
|
55781G
|
55781G
90467-07076-C7 Clip, Hood Moulding[03.2017 -] JPD10 BLACK |
90467-07076-C7 |
from US $0.84 |
||
|
55783B
|
55783B
55783-62020 Louver, Cowl Top Ventilator, Center No.1[12.2014 -] JPD10 |
55783-62020 |
US $17.18 |
||
|
55797A
|
55797A
55797-62010 Seal, Cowl Water Extract[12.2014 -] JPD10 |
55797-62010 |
US $11.07 |
||
|
56111
|
56111
56101-62900
Glass, Windshield
[12.2014 -] JPD10 寒冷地仕様 |
56101-62900 |
— | ||
|
56111
|
56111
56101-62907
Glass, Windshield
[12.2014 -] JPD10 |
56101-62907 |
— | ||
|
56114
|
56114
56114-62010 Retainer, Windshield Glass[12.2014 -] JPD10 |
56114-62010 |
US $4.66 |
||
|
56115A
|
56115A
56115-30120 Stopper, Windshield Glass, No.1[12.2014 -] JPD10 |
56115-30120 |
from US $1.52 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[12.2014 -] JPD10 |
56116-22050 |
from US $1.44 |
||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[12.2014 -] JPD10 ＊Ｄ，Ｌ＝３０５４; JPD10 ＊Ｄ，Ｌ＝３０５４,寒冷地仕様 |
56117-64010 |
from US $19.83 |
||
|
75533G
|
75533G
75533-62010 Moulding, Windshield, Outside[12.2014 -] JPD10 |
75533-62010 |
US $13.48 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.61 |
