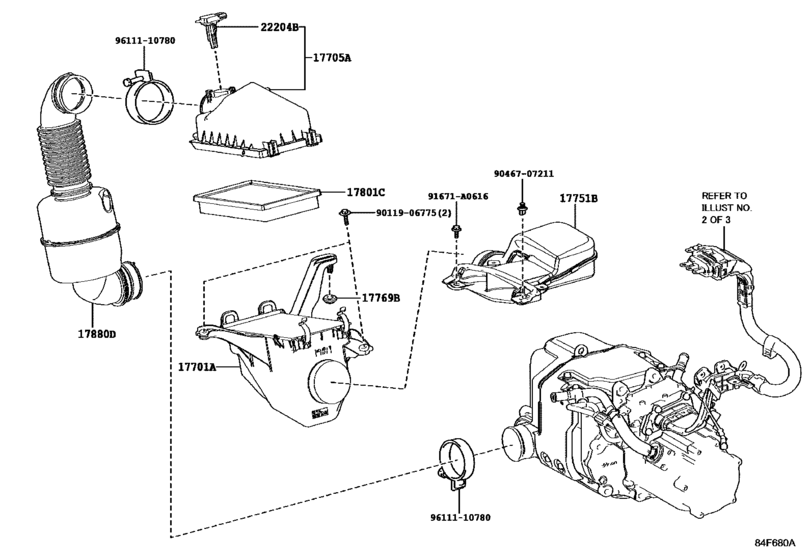

Fcv Intake & Exhaust ([12.2014 - ] (1412- )) Diagram Toyota MIRAI
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 12.2014
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17701A
|
17701A
17701-77180
Case Sub-Assy, Air Cleaner
[12.2014 -] 4JM..JPD10 |
17701-77180 |
— | ||
|
17705A
|
17705A
17705-77070
Cap Sub-Assy, Air Cleaner
[12.2014 -] 4JM..JPD10 |
17705-77070 |
— | ||
|
17751B
|
17751B
17751-77040 Inlet, Air Cleaner[12.2014 -] 4JM..JPD10 |
17751-77040 |
US $65.37 |
||
|
17769B
|
17769B
17769-38010 Support, Air Cleaner[12.2014 -] 4JM..JPD10 |
17769-38010 |
US $3.20 |
||
|
17801C
|
17801C
17801-77050 Element Sub-Assy, Air Cleaner Filter[12.2014 -] 4JM..JPD10 |
17801-77050 |
from US $45.36 |
||
|
17880D
|
17880D
17880-77010 Hose Assy, Air Cleaner[12.2014 -] 4JM..JPD10 |
17880-77010 |
US $49.07 |
||
|
22204B
|
22204B
22204-30020 Meter Sub-Assy, Intake Air Flow[12.2014 -] 4JM..JPD10 |
22204-30020 |
from US $136.95 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.64 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9046707211
|
9046707211
90467-07211 Clip(For Reserve Tank Outlet Hose No.2) |
90467-07211 |
from US $0.84 |
||
|
9611110780
|
9611110780
96111-10780 Clamp, Hose(For Air Connector) |
96111-10780 |
from US $3.53 |
