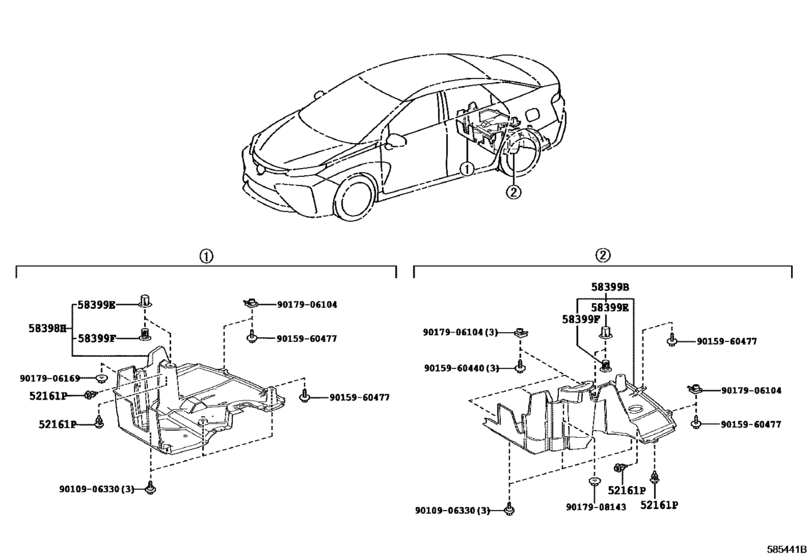

Floor Pan & Lower Back Panel ([12.2014 - ] ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ (1412- )) Diagram Toyota MIRAI
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 12.2014
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161P
|
52161P
52161-16010 Clip[12.2014 -] JPD10 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161P
|
52161P
52161-0K040 Clip[12.2014 -] JPD10 |
52161-0K040 |
from US $1.50 |
||
|
52161P
|
52161P
52161-02020 Clip[12.2014 -] JPD10 |
52161-02020 |
US $5.27 |
||
|
58398H
|
58398H
58398-62010 Cover, Floor Under, No.1[12.2014 -] JPD10 |
58398-62010 |
US $148.51 |
||
|
58399B
|
58399B
58399-62010 Cover, Floor Under, No.2[12.2014 -] JPD10 |
58399-62010 |
US $141.23 |
||
|
58399E
|
58399E
90467-17026-A0 Clip, No.1(For Front Fender Seal)[12.2014 -] JPD10 SUPER WHITE 2 |
90467-17026-A0 |
from US $1.07 |
||
|
58399F
|
58399F
90467-17027-C0 Clip, No.2(For Front Fender Seal)[12.2014 -] JPD10 BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
9010906330
|
9010906330
90109-06330 BOLT |
90109-06330 |
from US $0.78 |
||
|
9015960440
|
9015960440
90159-60440 SCREW WWASHER |
90159-60440 |
from US $0.70 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.70 |
||
|
9017906104
|
9017906104
90179-06104 NUT |
90179-06104 |
from US $0.78 |
||
|
9017906169
|
9017906169
90179-06169 Nut |
90179-06169 |
from US $0.99 |
||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.97 |
||
