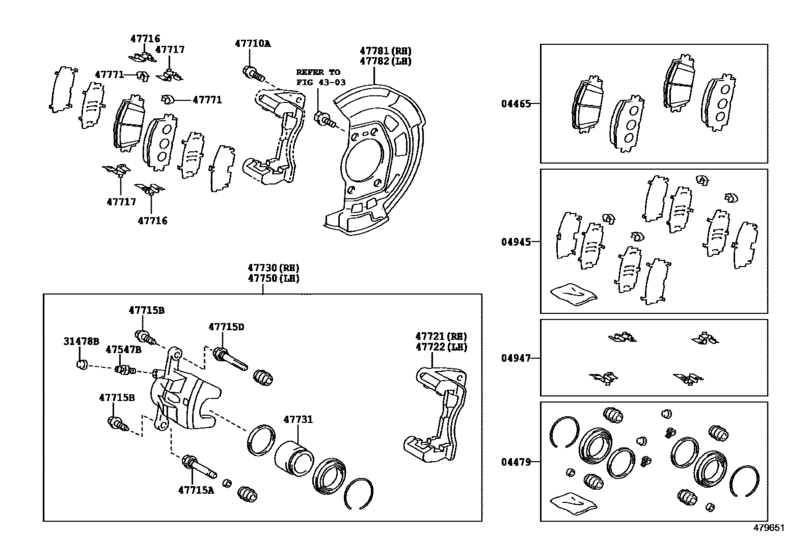

Front Disc Brake Caliper & Dust Cover ([12.2014 - ] (1412- )) Diagram Toyota MIRAI
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 12.2014
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-42180 Pad Kit, Disc Brake, Front[12.2014 -] JPD10 マーク ＡＤＶＩＣＳ ＰＶ５６５Ｈ |
04465-42180 |
from US $117.92 |
||
|
04479
|
04479
04478-33130 Cylinder Kit, Disc Brake, Front[12.2014 -] JPD10 |
04478-33130 |
from US $27.36 |
||
|
04945
|
04945
04945-42060 Shim Kit, Anti Squeal, Front[12.2014 -] JPD10 |
04945-42060 |
from US $35.87 |
||
|
04947
|
04947
04947-42050 Fitting Kit, Disc Brake, Front[12.2014 -] JPD10 |
04947-42050 |
from US $31.62 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[12.2014 -] JPD10 |
31478-30010 |
from US $1.66 |
||
|
47547B
|
47547B
47547-20010 Plug, Bleeder(For Release Cylinder)[12.2014 -] JPD10 |
47547-20010 |
from US $3.20 |
||
|
47710A
|
47710A
90105-12208 Bolt, Hexagon(For Front Disc Brake Caliper)[12.2014 -] JPD10 ＊１２−１．２５ＰＸ２９．５−２３ |
90105-12208 |
US $2.56 |
||
|
47715A
|
47715A
47715-12A10 Pin, Main(For Front Disc Brake Cylinder Slide)[12.2014 -] JPD10 |
47715-12A10 |
from US $5.76 |
||
|
47715B
|
47715B
90105-08164 Bolt(For Front Disc Brake Cylinder Slide)[12.2014 -] JPD10 |
90105-08164 |
from US $0.94 |
||
|
47715D
|
47715D
47715-52190 Pin, Main(For Front Disc Brake Cylinder Slide)[12.2014 -] JPD10 |
47715-52190 |
from US $5.76 |
||
|
47716
|
47716
47716-52191 Plate, Pad Support, No.1(For Front Disc Brake)[12.2014 -] JPD10 |
47716-52191 |
US $3.67 |
||
|
47717
|
47717
47717-52191 Plate, Pad Support, No.2(For Front Disc Brake)[12.2014 -] JPD10 |
47717-52191 |
US $3.67 |
||
|
47721
|
47721
47721-42091 Mounting, Front Disc Brake Cylinder, Rh[12.2014 -] JPD10 |
47721-42091 |
from US $79.05 |
||
|
47722
|
47722
47722-42091 Mounting, Front Disc Brake Cylinder, Lh[12.2014 -] JPD10 |
47722-42091 |
US $103.60 |
||
|
47730
|
47730
47730-42091 Cylinder Assy, Front Disc Brake, Rh[12.2014 -] JPD10 |
47730-42091 |
from US $381.42 |
||
|
47731
|
47731
47731-12A70 Piston, Front Disc Brake[12.2014 -] JPD10 |
47731-12A70 |
from US $33.23 |
||
|
47750
|
47750
47750-42091 Cylinder Assy, Disc Brake, Lh[12.2014 -] JPD10 |
47750-42091 |
US $551.60 |
||
|
47771
|
47771
47771-52191 Plate, Pad Wear Indicator, No.1[12.2014 -] JPD10 |
47771-52191 |
from US $1.60 |
||
|
47781
|
47781
47781-42040 Cover, Disc Brake Dust, Front Rh[12.2014 -] JPD10 |
47781-42040 |
from US $15.96 |
||
|
47782
|
47782
47782-42040 Cover, Disc Brake Dust, Front Lh[12.2014 -] JPD10 |
47782-42040 |
from US $15.96 |
