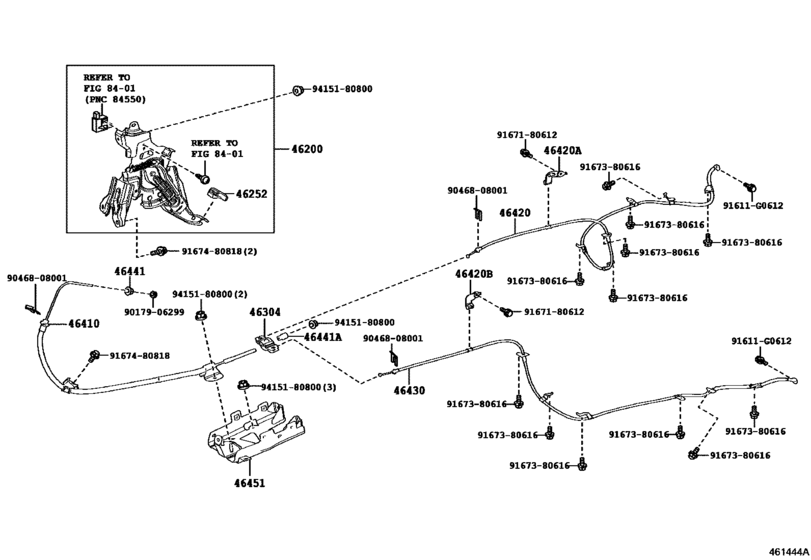

Parking Brake & Cable ([12.2014 - ] (1412- )) Diagram Toyota MIRAI
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 12.2014
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46200
|
46200
46210-76010 Pedal Assy, Parking Brake Control[12.2014 -] JPD10 |
46210-76010 |
US $189.28 |
||
|
46252
|
46252
46252-47010 Pad, Parking PedalPARKING PEDAL [12.2014 -] JPD10 |
46252-47010 |
from US $8.33 |
||
|
46304
|
46304
46304-17020 Equalizer Sub-Assy, Parking Brake[12.2014 -] JPD10 |
46304-17020 |
US $6.46 |
||
|
46410
|
46410
46410-62010 Cable Assy, Parking Brake, No.1[12.2014 -] JPD10 |
46410-62010 |
US $27.08 |
||
|
46420
|
46420
46420-62010 Cable Assy, Parking Brake, No.2[12.2014 -] JPD10 |
46420-62010 |
US $57.08 |
||
|
46420A
|
46420A
46421-62010 Clamp, No.1(For Parking Brake Cable)[12.2014 -] JPD10 |
46421-62010 |
US $4.51 |
||
|
46420B
|
46420B
46431-62010 Clamp, No.2(For Parking Brake Cable)[12.2014 -] JPD10 |
46431-62010 |
US $4.51 |
||
|
46430
|
46430
46430-62010 Cable Assy, Parking Brake, No.3[12.2014 -] JPD10 |
46430-62010 |
US $57.08 |
||
|
46441
|
46441
46441-12010 Nut, Wire Adjusting, No.1[12.2014 -] JPD10 |
46441-12010 |
US $2.56 |
||
|
46441A
|
46441A
46441-47020 Nut, Wire Adjusting, No.1[12.2014 -] JPD10 |
46441-47020 |
US $2.04 |
||
|
46451
|
46451
46451-62010 Bracket, Cable Support[12.2014 -] JPD10 |
46451-62010 |
US $34.51 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.36 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167480818
|
9167480818
91674-80818 BOLT FLANGE |
91674-80818 |
from US $0.82 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
