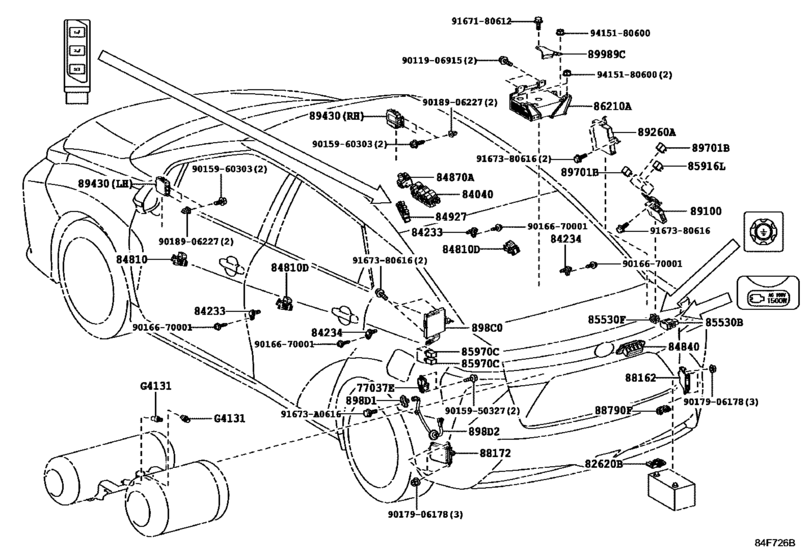

Switch & Relay & Computer ([12.2014 - ] ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ (1412- )) Diagram Toyota MIRAI
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 12.2014
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
898C0
|
898C0
898C0-62010 Computer Assy, Hydrogen Fuel Control[12.2014 - 06.2015] JPD10 |
898C0-62010 |
US $1,313.31 |
||
|
898C0
|
898C0
898C0-62020 Computer Assy, Hydrogen Fuel Control[06.2015 -] JPD10 |
898C0-62020 |
US $1,193.92 |
||
|
898D1
|
898D1
898D1-62010 Transmitter, Hydrogen Fuel Control[12.2014 -] JPD10 |
898D1-62010 |
US $648.21 |
||
|
898D2
|
898D2
898D2-62010 Wire, Hydrogen Fuel Control[12.2014 -] JPD10 |
898D2-62010 |
US $12.08 |
||
|
77037E
|
77037E
77037-62030 Switch Sub-Assy, Fuel Filler Opening Lid[12.2014 -] JPD10 |
77037-62030 |
US $9.03 |
||
|
82620B
|
82620B
82620-30340 Block Assy, Fusible Link[12.2014 -] JPD10 |
82620-30340 |
US $9.76 |
||
|
84040
|
84040
84040-48160 Master Switch Assy,multiplex Network[12.2014 -] JPD10 |
84040-48160 |
US $324.48 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[12.2014 -] JPD10 |
84231-60070 |
from US $11.83 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[12.2014 -] JPD10 |
84231-60070 |
from US $11.83 |
||
|
84810
|
84810
84810-48030 Switch Assy, Power Window Regulator[12.2014 -] JPD10 |
84810-48030 |
US $74.42 |
||
|
84810D
|
84810D
84810-48030 Switch Assy, Power Window Regulator[12.2014 -] JPD10 |
84810-48030 |
US $74.42 |
||
|
84840
|
84840
84840-28020 Switch Assy, Luggage Compartment Door Opening[12.2014 -] JPD10 |
84840-28020 |
US $51.41 |
||
|
84870A
|
84870A
84872-62010 Switch Assy, Outer Mirror[12.2014 -] JPD10 |
84872-62010 |
from US $80.64 |
||
|
84927
|
84927
84927-0W010 Switch, Seat Memory[12.2014 -] JPD10 |
84927-0W010 |
US $55.18 |
||
|
85530B
|
85530B
85530-75010-C0 Socket Assy, Power Outlet, Rear No.1[12.2014 -] JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ）,BLACK; JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ＋ＤＣ２２０Ｖ）,BLACK |
85530-75010-C0 |
US $29.40 |
||
|
85530F
|
85530F
85530-28050-C0 Socket Assy, Power Outlet, No.1[12.2014 -] JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ）,BLACK; JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ＋ＤＣ２２０Ｖ）,BLACK |
85530-28050-C0 |
US $29.40 |
||
|
85916L
|
85916L
90987-02027 Relay[12.2014 -] JPD10 寒冷地仕様 |
90987-02027 |
from US $47.11 |
||
|
85970C
|
85970C
90987-04004 Relay, Starter Cut[12.2014 -] JPD10 |
90987-04004 |
from US $47.21 |
||
|
86210A
|
86210A
86210-62010 Inverter Assy, Voltage[12.2014 -] JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ）; JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ＋ＤＣ２２０Ｖ） |
86210-62010 |
US $1,144.42 |
||
|
88162
|
88162
88162-0W260 Sensor, Blind Spot Monitor, Rh[12.2014 - 09.2016] JPD10 |
88162-0W260 |
US $902.72 |
||
|
88162
|
88162
88162-62010 Sensor, Blind Spot Monitor, Rh[10.2016 -] JPD10 |
88162-62010 |
US $902.72 |
||
|
88172
|
88172
88162-0W260 Sensor, Blind Spot Monitor, Rh[12.2014 - 09.2016] JPD10 |
88162-0W260 |
US $902.72 |
||
|
88172
|
88172
88162-62010 Sensor, Blind Spot Monitor, Rh[10.2016 -] JPD10 |
88162-62010 |
US $902.72 |
||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[12.2014 -] JPD10 |
88790-22131 |
from US $24.39 |
||
|
89100
|
89100
89100-62010 Computer Assy, Network Gateway(For Dc Power Supply)[12.2014 -] JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ＋ＤＣ２２０Ｖ） |
89100-62010 |
US $445.54 |
||
|
89260A
|
89260A
89260-62010 Computer Assy, Plugin Charge Control[12.2014 -] JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ＋ＤＣ２２０Ｖ） |
89260-62010 |
US $596.96 |
||
|
89430
|
89430
89430-62010 Computer Assy, Outer Mirror Control[12.2014 -] JPD10 右側 |
89430-62010 |
US $228.59 |
||
|
89430
|
89430
89430-62020 Computer Assy, Outer Mirror Control[12.2014 -] JPD10 左側 |
89430-62020 |
US $228.59 |
||
|
89701B
|
89701B
90987-02027 Relay[12.2014 -] JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ＋ＤＣ２２０Ｖ） |
90987-02027 |
from US $47.11 |
||
|
89989C
|
89989C
89989-47040 Bracket, Computer, No.3[12.2014 -] JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ）; JPD10 アクセサリコネクタ−有り（ＤＣ１２Ｖ＋ＡＣ１００Ｖ＋ＤＣ２２０Ｖ） |
89989-47040 |
US $10.34 |
||
|
91673A0616
|
91673A0616
91673-A0616 BOLT, FLANGE |
91673-A0616 |
from US $0.64 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $1.08 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.68 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
G4131
|
G4131
G4131-62010 Sensor, Hydrogen Tank Pressure[12.2014 -] JPD10 |
G4131-62010 |
US $436.80 |
