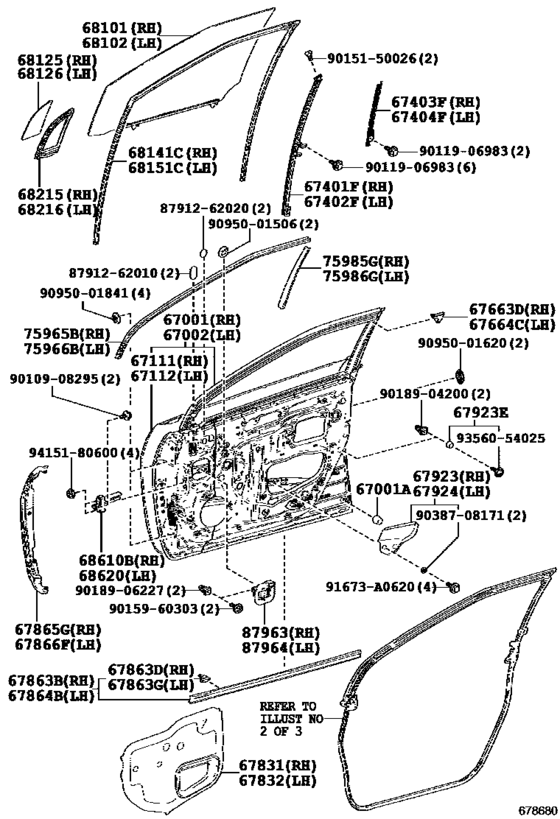

Front Door Panel & Glass ([06.2015 - ] DOOR PANEL (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-62020
Panel Sub-Assy, Front Door, Rh
[06.2015 -] JPD10 |
67001-62020 |
— | ||
|
67001A
|
67001A
90541-09069 Cushion, Hood Bumper[06.2015 -] JPD10 |
90541-09069 |
from US $2.22 |
||
|
67002
|
67002
67002-62020
Panel Sub-Assy, Front Door, Lh
[06.2015 -] JPD10 |
67002-62020 |
— | ||
|
67111
|
67111
67111-62010
Panel, Front Door, Outer Rh
[06.2015 -] JPD10 |
67111-62010 |
— | ||
|
67112
|
67112
67112-62010
Panel, Front Door, Outer Lh
[06.2015 -] JPD10 |
67112-62010 |
— | ||
|
67401F
|
67401F
67401-62010 Frame Sub-Assy, Front Door, Front Lower Rh[06.2015 -] JPD10 |
67401-62010 |
US $37.56 |
||
|
67402F
|
67402F
67402-62010 Frame Sub-Assy, Front Door, Front Lower Lh[06.2015 -] JPD10 |
67402-62010 |
US $37.56 |
||
|
67403F
|
67403F
67403-62010 Frame Sub-Assy, Front Door, Rear Lower Rh[06.2015 -] JPD10 |
67403-62010 |
US $21.40 |
||
|
67404F
|
67404F
67404-62010 Frame Sub-Assy, Front Door, Rear Lower Lh[06.2015 -] JPD10 |
67404-62010 |
US $21.40 |
||
|
67663D
|
67663D
67663-62010 Garnish, Door Frame, Rh[06.2015 -] JPD10 |
67663-62010 |
US $4.80 |
||
|
67664C
|
67664C
67664-62010 Garnish, Door Frame, Lh[06.2015 -] JPD10 |
67664-62010 |
US $4.80 |
||
|
67831
|
67831
67831-62010 Cover, Front Door Service Hole, Rh[06.2015 -] JPD10 |
67831-62010 |
US $16.89 |
||
|
67832
|
67832
67832-62010 Cover, Front Door Service Hole, Lh[06.2015 -] JPD10 |
67832-62010 |
US $16.89 |
||
|
67863B
|
67863B
67863-62010 Weatherstrip, Front Door, No.2 Rh[06.2015 -] JPD10 |
67863-62010 |
US $34.80 |
||
|
67863D
|
67863D
67867-48030 Clip(For Hood To Cowl Top Seal)[06.2015 -] JPD10 |
67867-48030 |
US $1.60 |
||
|
67863G
|
67863G
67867-48030 Clip(For Hood To Cowl Top Seal)[06.2015 -] JPD10 |
67867-48030 |
US $1.60 |
||
|
67864B
|
67864B
67864-62010 Weatherstrip, Front Door, No.2 Lh[06.2015 -] JPD10 |
67864-62010 |
US $34.80 |
||
|
67865G
|
67865G
67865-62010 Weatherstrip, Front Door, No.3 Rh[06.2015 -] JPD10 |
67865-62010 |
US $26.06 |
||
|
67866F
|
67866F
67866-62010 Weatherstrip, Front Door, No.3 Lh[06.2015 -] JPD10 |
67866-62010 |
US $25.53 |
||
|
67923
|
67923
67923-62010 Cushion, Front Door Stiffener, No.1[06.2015 -] JPD10 |
67923-62010 |
US $14.85 |
||
|
67923E
|
67923E
67923-48060 Cushion, Front Door Stiffener, No.1FRONT DOOR STIFFENER, NO.1 [06.2015 -] JPD10 |
67923-48060 |
US $3.04 |
||
|
67924
|
67924
67924-62010 Cushion, Front Door Stiffener, No.2[06.2015 -] JPD10 |
67924-62010 |
US $14.85 |
||
|
68101
|
68101
68101-62010
Glass Sub-Assy, Front Door, Rh
[06.2015 -] JPD10 |
68101-62010 |
— | ||
|
68102
|
68102
68102-62010
Glass Sub-Assy, Front Door, Lh
[06.2015 -] JPD10 |
68102-62010 |
— | ||
|
68125
|
68125
68125-62010
Glass, Front Door Fix Window, Rh
[06.2015 -] JPD10 |
68125-62010 |
— | ||
|
68126
|
68126
68126-62010
Glass, Front Door Fix Window, Lh
[06.2015 -] JPD10 |
68126-62010 |
— | ||
|
68141C
|
68141C
68141-62010 Run, Front Door Glass, Rh[06.2015 -] JPD10 |
68141-62010 |
US $36.55 |
||
|
68151C
|
68151C
68151-62010 Run, Front Door Glass, Lh[06.2015 -] JPD10 |
68151-62010 |
US $36.55 |
||
|
68215
|
68215
68215-62010 Weatherstrip, Front Door Fix Window, Rh[06.2015 -] JPD10 |
68215-62010 |
US $25.19 |
||
|
68216
|
68216
68216-62010 Weatherstrip, Front Door Fix Window, Lh[06.2015 -] JPD10 |
68216-62010 |
US $25.19 |
||
|
68610B
|
68610B
68610-62010 Check Assy, Front Door, Rh[06.2015 -] JPD10 |
68610-62010 |
US $37.86 |
||
|
68620
|
68620
68620-62010 Check Assy, Front Door, Lh[06.2015 -] JPD10 |
68620-62010 |
US $37.86 |
||
|
75965B
|
75965B
75965-62010 Stripe, Front Door No.4 Rh[06.2015 -] JPD10 |
75965-62010 |
US $20.68 |
||
|
75966B
|
75966B
75966-62010 Stripe, Front Door No.4 Lh[06.2015 -] JPD10 |
75966-62010 |
US $20.68 |
||
|
75985G
|
75985G
75985-62010 Stripe, Front Door Outside, Rh[06.2015 -] JPD10 |
75985-62010 |
US $10.77 |
||
|
75986G
|
75986G
75986-62010 Stripe, Front Door Outside, Lh[06.2015 -] JPD10 |
75986-62010 |
US $11.28 |
||
|
87963
|
87963
87963-62020 Cover, Outer Mirror Install Hole, Rh[06.2015 -] JPD10 |
87963-62020 |
US $13.40 |
||
|
87964
|
87964
87964-62020 Cover, Outer Mirror Install Hole, Lh[06.2015 -] JPD10 |
87964-62020 |
US $13.25 |
||
|
91673A0620
|
91673A0620
91673-A0620 BOLT FLANGE |
91673-A0620 |
from US $0.66 |
||
|
8791262010
|
8791262010
87912-62010 Protector, Outer Mirror |
87912-62010 |
US $2.75 |
||
|
8791262020
|
8791262020
87912-62020 Protector, Outer Mirror |
87912-62020 |
US $2.75 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.82 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $0.96 |
||
|
9015150026
|
9015150026
90151-50026 SCREW CROSSRECESS |
90151-50026 |
from US $0.72 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.76 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9038708171
|
9038708171
90387-08171 New Genuine Part |
90387-08171 |
US $1.12 |
||
|
9095001506
|
9095001506
90950-01506 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01506 |
US $1.92 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $0.92 |
||
|
9356054025
|
9356054025
93560-54025 SCREW |
93560-54025 |
US $0.52 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
