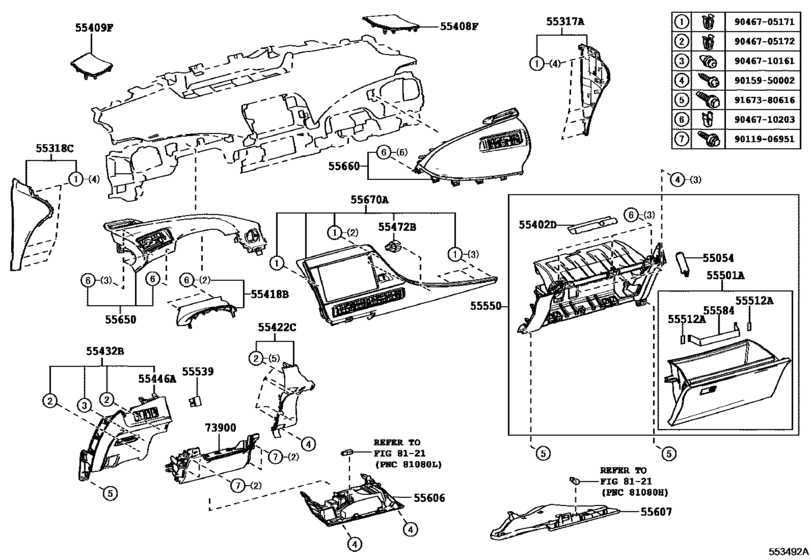

Instrument Panel & Glove Compartment ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-47010 Stopper Sub-Assy, Glove Compartment Door[06.2015 -] JPD10 |
55054-47010 |
from US $15.96 |
||
|
55317A
|
55317A
55317-62060-A0
Panel, Instrument Side, Rh
[06.2015 -] JPD10 WARM WHITE,TRIM00 |
55317-62060-A0 |
— | ||
|
55317A
|
55317A
55317-62060-C3
Panel, Instrument Side, Rh
[06.2015 -] JPD10 BLACK,TRIM01,8# |
55317-62060-C3 |
— | ||
|
55318C
|
55318C
55318-62010-A0
Panel, Instrument Side, Lh
[06.2015 -] JPD10 WARM WHITE,TRIM00 |
55318-62010-A0 |
— | ||
|
55318C
|
55318C
55318-62010-C3
Panel, Instrument Side, Lh
[06.2015 -] JPD10 BLACK,TRIM01,8# |
55318-62010-C3 |
— | ||
|
55402D
|
55402D
55402-62020
Pad Sub-Assy, Instrument Panel Safety, No.1
[06.2015 -] JPD10 |
55402-62020 |
— | ||
|
55408F
|
55408F
55408-62010-C0 Panel Sub-Assy, Instrument Panel Speaker, No.1[06.2015 -] JPD10 BLACK,TRIM0#,8# |
55408-62010-C0 |
US $65.52 |
||
|
55409F
|
55409F
55409-62010-C0 Panel Sub-Assy, Instrument Panel Speaker, No.2[06.2015 -] JPD10 BLACK,TRIM0#,8# |
55409-62010-C0 |
US $65.52 |
||
|
55418B
|
55418B
55418-62010 Spacer,meter Hood[06.2015 -] JPD10 |
55418-62010 |
US $39.46 |
||
|
55422C
|
55422C
55422-62020-A0
Panel, Instrument Cluster Finish, Center Upper
[06.2015 -] JPD10 WARM WHITE,TRIM00 |
55422-62020-A0 |
— | ||
|
55422C
|
55422C
55422-62020-C0
Panel, Instrument Cluster Finish, Center Upper
[06.2015 -] JPD10 BLACK,TRIM01,8# |
55422-62020-C0 |
— | ||
|
55432B
|
55432B
55432-62020-A0
Panel, Instrument Panel Finish, Lower
[06.2015 -] JPD10 WARM WHITE,TRIM00 |
55432-62020-A0 |
— | ||
|
55432B
|
55432B
55432-62020-C0
Panel, Instrument Panel Finish, Lower
[06.2015 -] JPD10 BLACK,TRIM01,8# |
55432-62020-C0 |
— | ||
|
55446A
|
55446A
55446-62020-A0
Base, Switch Hole, No.1
[06.2015 -] JPD10 WARM WHITE,TRIM00 |
55446-62020-A0 |
— | ||
|
55446A
|
55446A
55446-62020-C0
Base, Switch Hole, No.1
[06.2015 -] JPD10 BLACK,TRIM01,8# |
55446-62020-C0 |
— | ||
|
55472B
|
55472B
90467-13082-A0 Clip, Instrument Panel[06.2015 -] JPD10 MELLOW WHITE |
90467-13082-A0 |
from US $1.05 |
||
|
55501A
|
55501A
55501-62020-A0
Door Sub-Assy, Glove Compartment
[06.2015 -] JPD10 WARM WHITE,TRIM00 |
55501-62020-A0 |
— | ||
|
55501A
|
55501A
55501-62020-C0
Door Sub-Assy, Glove Compartment
[06.2015 -] JPD10 BLACK,TRIM01,8# |
55501-62020-C0 |
— | ||
|
55512A
|
55512A
55585-50010 Plate, Glove CompartmentGLOVE COMPARTMENT [06.2015 -] JPD10 |
55585-50010 |
US $1.02 |
||
|
55539
|
55539
55539-58060-C0 Cover, Spare Switch Hole[06.2015 -] JPD10 BLACK; JPD10 ACCESSORY CONNECTOR-DC12V+DC220V 9.8KW,BLACK |
55539-58060-C0 |
from US $4.60 |
||
|
55550
|
55550
55550-62020-A0
Door Assy, Glove Compartment
[06.2015 -] JPD10 WARM WHITE,TRIM00 |
55550-62020-A0 |
— | ||
|
55550
|
55550
55550-62020-C0
Door Assy, Glove Compartment
[06.2015 -] JPD10 BLACK,TRIM01,8# |
55550-62020-C0 |
— | ||
|
55584
|
55584
55584-30010
Holder, Map
[06.2015 -] JPD10 |
55584-30010 |
— | ||
|
55606
|
55606
55606-62020
Cover Sub-Assy, Instrument Panel Under, No.1
[06.2015 -] JPD10 |
55606-62020 |
— | ||
|
55607
|
55607
55607-75020
Cover Sub-Assy, Instrument Panel Under, No.2
[06.2015 -] JPD10 |
55607-75020 |
— | ||
|
55650
|
55650
55650-62020-A0
Register Assy, Instrument Panel, No.1
[06.2015 -] JPD10 WARM WHITE,TRIM0# |
55650-62020-A0 |
— | ||
|
55650
|
55650
55650-62020-J0
Register Assy, Instrument Panel, No.1
[06.2015 -] JPD10 BLUE BLACK,TRIM8# |
55650-62020-J0 |
— | ||
|
55660
|
55660
55660-62020-A0
Register Assy, Instrument Panel, No.2
[06.2015 -] JPD10 WARM WHITE,TRIM0# |
55660-62020-A0 |
— | ||
|
55660
|
55660
55660-62020-J0
Register Assy, Instrument Panel, No.2
[06.2015 -] JPD10 BLUE BLACK,TRIM8# |
55660-62020-J0 |
— | ||
|
55670A
|
55670A
55670-62020
Register Assy, Instrument Panel, Center
[06.2015 -] JPD10 |
55670-62020 |
— | ||
|
73900
|
73900
73900-62020-A0
Air Bag Assy, Instrument Panel, Lower No.1
[06.2015 -] JPD10 WARM WHITE,TRIM00 |
73900-62020-A0 |
— | ||
|
73900
|
73900
73900-62020-C0
Air Bag Assy, Instrument Panel, Lower No.1
[06.2015 -] JPD10 BLACK,TRIM01,8# |
73900-62020-C0 |
— | ||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9015950002
|
9015950002
90159-50002 SCREW |
90159-50002 |
US $1.12 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
US $0.96 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.80 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
