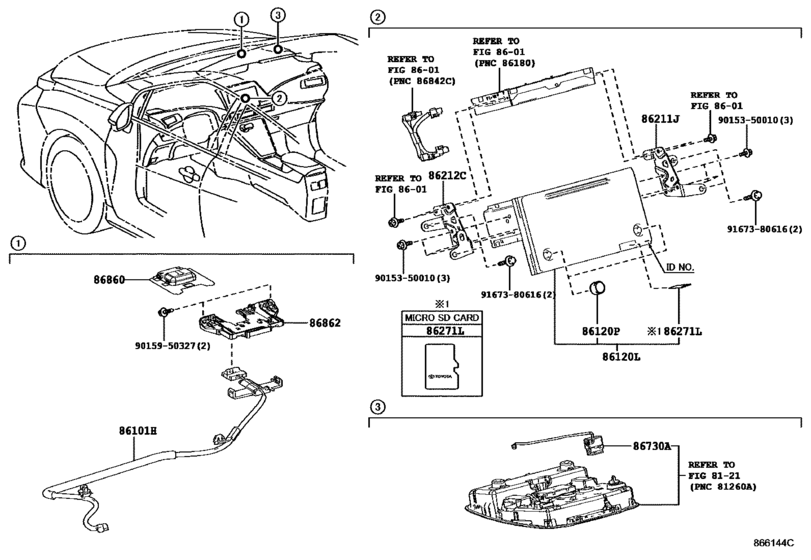

Navigation & Front Monitor Display ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86101H
|
86101H
86101-62060
Cord Sub-Assy, Antenna
[06.2015 -] JPD10 |
86101-62060 |
— | ||
|
86120L
|
86120L
86804-62010
Receiver Assy, Navigation
[06.2015 -] JPD10 PANASONIC,ID=510068 |
86804-62010 |
— | ||
|
86120P
|
86120P
90010-24177
Knob, Navigation Receiver Switch
[06.2015 -] JPD10 |
90010-24177 |
— | ||
|
86211J
|
86211J
86211-62010
Bracket, Radio Receiver, No.1
[06.2015 -] JPD10 |
86211-62010 |
— | ||
|
86212C
|
86212C
86212-62010
Bracket, Radio Receiver, No.2
[06.2015 -] JPD10 |
86212-62010 |
— | ||
|
86271L
|
86271L
86271-35012
Disc, Disc Player
[06.2015 - 07.2015] JPD10 MICRO SD CARD |
86271-35012 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-35014
Disc, Disc Player
[06.2015 - 07.2015] JPD10 MICRO SD CARD |
86271-35014 |
— | ||
|
86271L
|
86271L
86271-35013
Disc, Disc Player
[07.2015 - 08.2016] JPD10 MICRO SD CARD |
86271-35013 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-35014
Disc, Disc Player
[07.2015 - 08.2016] JPD10 MICRO SD CARD |
86271-35014 |
— | ||
|
86271L
|
86271L
86271-35014
Disc, Disc Player
[08.2016 -] JPD10 MICRO SD CARD |
86271-35014 |
— | ||
|
86730A
|
86730A
86730-30180
Microphone Assy, Telephone
[06.2015 -] JPD10 |
86730-30180 |
— | ||
|
86860
|
86860
86860-78010
Antenna Assy, Navigation
[06.2015 -] JPD10 |
86860-78010 |
— | ||
|
86862
|
86862
86862-62010 Bracket, Navigation Antenna[06.2015 -] JPD10 |
86862-62010 |
US $12.52 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
