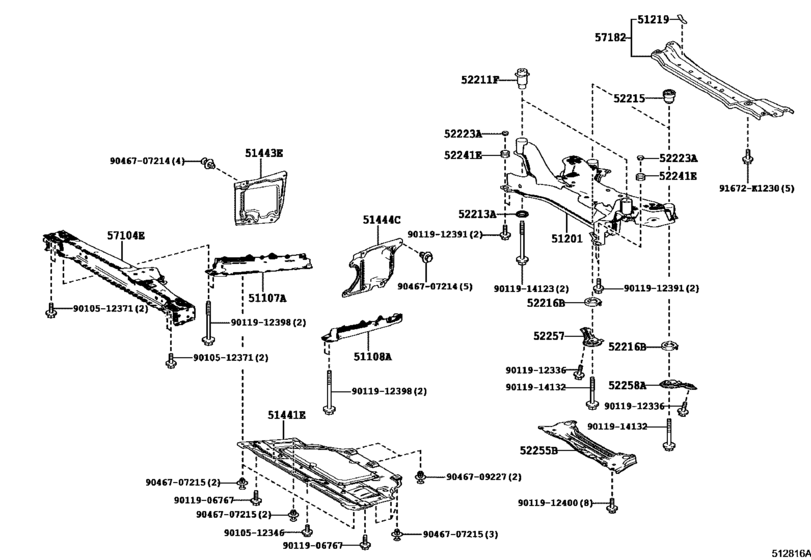

Suspension Crossmember & Under Cover ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51107A
|
51107A
51107-62010 Reinforcement Sub-Assy, Side Rail, Rear Rh[06.2015 -] JPD10 |
51107-62010 |
US $56.64 |
||
|
51108A
|
51108A
51108-62010 Reinforcement Sub-Assy, Side Rail, Rear Lh[06.2015 -] JPD10 |
51108-62010 |
US $55.91 |
||
|
51201
|
51201
51201-62010 Crossmember Sub-Assy, Front Suspension[06.2015 -] JPD10 |
51201-62010 |
US $729.46 |
||
|
51219
|
51219
51219-62010 Protector, Front Suspension Member, Lwr[06.2015 -] JPD10 |
51219-62010 |
US $2.77 |
||
|
51441E
|
51441E
51410-62010 Cover, Motor Under, No.1[06.2015 -] JPD10 |
51410-62010 |
US $96.10 |
||
|
51443E
|
51443E
51443-62010 Cover, Motor Under, Rear Rh[06.2015 -] JPD10 |
51443-62010 |
US $14.27 |
||
|
51444C
|
51444C
51444-62010 Cover, Motor Under, Rear Lh[06.2015 -] JPD10 |
51444-62010 |
US $14.27 |
||
|
52211F
|
52211F
52211-75020 Cushion, Body Mounting, Front UpperBODY MOUNTING, FRONT UPPER [06.2015 -] JPD10 |
52211-75020 |
US $68.88 |
||
|
52213A
|
52213A
52213-28040 Stopper, Front Suspension Member Body Mounting, Front[06.2015 -] JPD10 |
52213-28040 |
from US $8.89 |
||
|
52215
|
52215
52215-75010 Cushion, Front Suspension Member Body Mounting, RearFRONT SUSPENSION MEMBER BODY MOUNTING, REAR [06.2015 -] JPD10 |
52215-75010 |
US $57.12 |
||
|
52216B
|
52216B
52216-28030 Stopper, Front Suspension Member Body Mounting, Rear[06.2015 -] JPD10 |
52216-28030 |
US $6.09 |
||
|
52223A
|
52223A
52223-28010 Spacer, Cab Rear Mounting, Lower[06.2015 -] JPD10 |
52223-28010 |
from US $3.96 |
||
|
52241E
|
52241E
52241-28010 Cushion, Cab Rear Mounting[06.2015 -] JPD10 |
52241-28010 |
from US $3.28 |
||
|
52255B
|
52255B
52255-76010 Brace, Front Suspension Member, Front Rh[06.2015 -] JPD10 |
52255-76010 |
from US $88.08 |
||
|
52257
|
52257
52257-62010 Brace, Front Suspension Member, Rear Rh[06.2015 -] JPD10 |
52257-62010 |
US $17.33 |
||
|
52258A
|
52258A
52258-62010 Brace, Front Suspension Member, Rear Lh[06.2015 -] JPD10 |
52258-62010 |
US $17.33 |
||
|
57104E
|
57104E
57104-12270 Member Sub-Assy, Front Cross[06.2015 -] JPD10 |
57104-12270 |
from US $382.86 |
||
|
57182
|
57182
52256-62010 Brace Sub-Assy, Suspension Member To Front Crossmember[06.2015 -] JPD10 |
52256-62010 |
US $110.66 |
||
|
91672K1230
|
91672K1230
91672-K1230 New Genuine Part |
91672-K1230 |
US $2.48 |
||
|
9010512346
|
9010512346
90105-12346 Bolt (For Front Lower Ball Joint) |
90105-12346 |
from US $1.13 |
||
|
9010512371
|
9010512371
90105-12371 New Genuine Part |
90105-12371 |
US $3.40 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.68 |
||
|
9011912336
|
9011912336
90119-12336 BOLT WWASHER |
90119-12336 |
from US $1.60 |
||
|
9011912391
|
9011912391
90119-12391 New Genuine Part |
90119-12391 |
US $3.40 |
||
|
9011912398
|
9011912398
90119-12398 BOLT WWASHER |
90119-12398 |
US $6.27 |
||
|
9011912400
|
9011912400
90119-12400 BOLT W-WASHER |
90119-12400 |
US $3.23 |
||
|
9011914123
|
9011914123
90119-14123 Bolt(For Front Suspension Lower Arm No.2 Rh) |
90119-14123 |
US $5.68 |
||
|
9011914132
|
9011914132
90119-14132 New Genuine Part |
90119-14132 |
US $9.68 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.86 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $0.80 |
||
|
9046709227
|
9046709227
90467-09227 Clip, Engine Under Cover, No.2 |
90467-09227 |
from US $1.27 |
