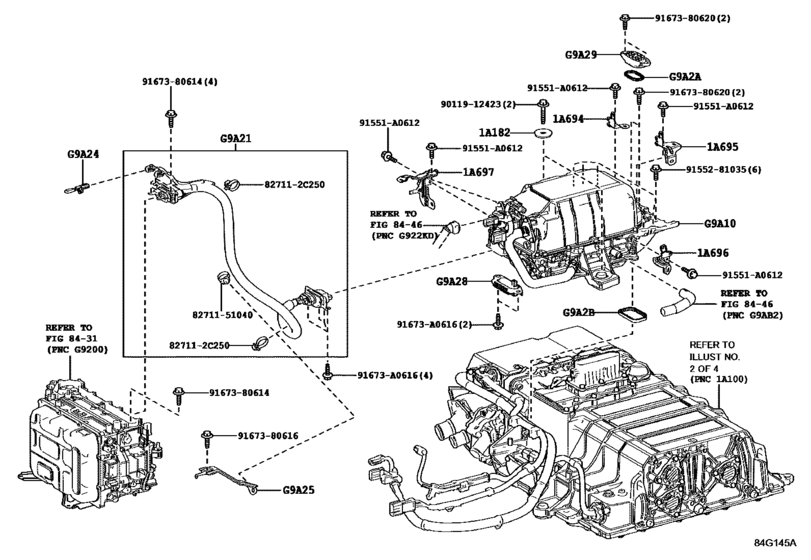

Fcv Stack & Converter ([06.2015 - ] FC CONVERTER & FC STACK(1/2) (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1A182
|
1A182
1A182-77040 Mount, Fc Stack, No.2[06.2015 -] 4JM..JPD10 |
1A182-77040 |
US $6.41 |
||
|
1A694
|
1A694
1A694-77010 Bracket, Fc Wiring Harness, No.4[06.2015 -] 4JM..JPD10 |
1A694-77010 |
US $3.79 |
||
|
1A695
|
1A695
1A695-77010 Bracket, Fc Wiring Harness, No.5[06.2015 -] 4JM..JPD10 |
1A695-77010 |
US $6.26 |
||
|
1A696
|
1A696
1A696-77010 Bracket, Fc Wiring Harness, No.6[06.2015 -] 4JM..JPD10 |
1A696-77010 |
US $5.68 |
||
|
1A697
|
1A697
1A697-77010 Bracket, Fc Wiring Harness, No.7[06.2015 -] 4JM..JPD10 |
1A697-77010 |
US $10.34 |
||
|
91551A0612
|
91551A0612
91551-A0612 New Genuine Part |
91551-A0612 |
US $1.08 |
||
|
91673A0616
|
91673A0616
91673-A0616 BOLT, FLANGE |
91673-A0616 |
from US $0.64 |
||
|
827112C250
|
827112C250
82711-2C250 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2C250 |
US $2.15 |
||
|
8271151040
|
8271151040
82711-51040 Wire, Fuse To Fuse(for Combustion Heater) |
82711-51040 |
US $3.23 |
||
|
9011912423
|
9011912423
90119-12423 New Genuine Part |
90119-12423 |
US $3.20 |
||
|
9155281035
|
9155281035
91552-81035 BOLT |
91552-81035 |
from US $1.15 |
||
|
9167380614
|
9167380614
91673-80614 BOLT, FLANGE W/WASER |
91673-80614 |
US $1.08 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $1.08 |
||
|
G9A2A
|
G9A2A
G9A2A-62010 Gasket, Fc Converter Service Hole, Rear[06.2015 -] JPD10 |
G9A2A-62010 |
US $6.81 |
||
|
G9A2B
|
G9A2B
G9A2B-62010 Gasket, Fc Converter, Rear[06.2015 -] JPD10 |
G9A2B-62010 |
US $10.21 |
||
|
G9A10
|
G9A10
G9A10-62010 Converter Assy, Fc[06.2015 - 11.2016] JPD10 |
G9A10-62010 |
US $2,082.08 |
||
| replacement | |||||
|
G9A10
|
G9A10
G9A10-62011 Converter Assy, Fc[06.2015 - 11.2016] JPD10 |
G9A10-62011 |
US $1,892.80 |
||
|
G9A10
|
G9A10
G9A10-62011 Converter Assy, Fc[12.2016 -] JPD10 |
G9A10-62011 |
US $1,892.80 |
||
|
G9A21
|
G9A21
G9A21-62010 Cable, Fc Converter Power Outlet[06.2015 -] JPD10 |
G9A21-62010 |
US $232.96 |
||
|
G9A24
|
G9A24
G9A24-62010 Wire, Fc Converter Cable Inter Lock[06.2015 -] JPD10 |
G9A24-62010 |
US $5.24 |
||
|
G9A25
|
G9A25
G9A25-62010 Bracket, Fc Converter Power Outlet[06.2015 -] JPD10 |
G9A25-62010 |
US $10.05 |
||
|
G9A28
|
G9A28
G9A28-62010 Cover, Fc Converter Service Hole, Front[06.2015 -] JPD10 |
G9A28-62010 |
US $28.68 |
||
|
G9A29
|
G9A29
G9A29-62010 Cover, Fc Converter Service Hole, Rear[06.2015 -] JPD10 |
G9A29-62010 |
US $16.02 |
||
