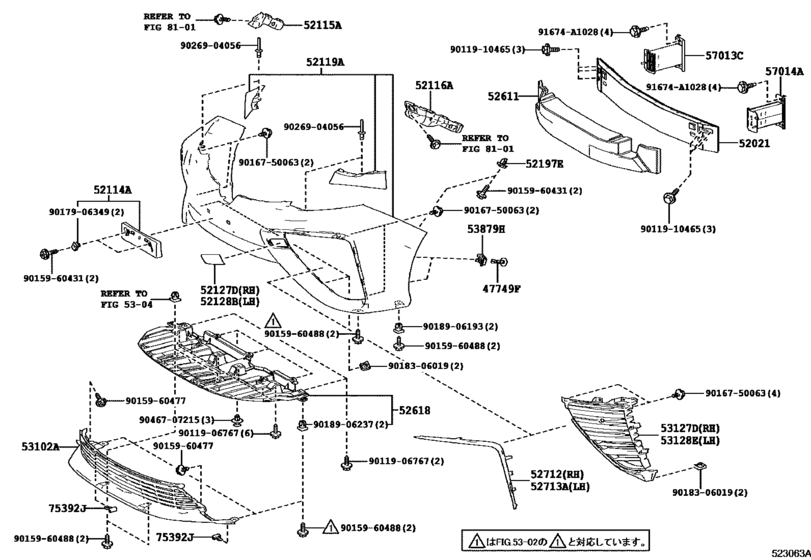

Front Bumper & Bumper Stay ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47749F
|
47749F
47749-50090 Clip, Pin Hold[06.2015 -] JPD10 |
47749-50090 |
from US $0.51 |
||
|
52021
|
52021
52021-62010 Reinforcement Sub-Assy, Front Bumper[06.2015 -] JPD10 |
52021-62010 |
US $260.62 |
||
|
52114A
|
52114A
52114-62020
Bracket, Front Bumper Extention Mounting
[06.2015 -] JPD10 |
52114-62020 |
— | ||
|
52115A
|
52115A
52115-62010 Support, Front Bumper Side, Rh[06.2015 -] JPD10 |
52115-62010 |
US $48.22 |
||
|
52116A
|
52116A
52116-62010 Support, Front Bumper Side, Lh[06.2015 -] JPD10 |
52116-62010 |
US $48.22 |
||
|
52119A
|
52119A
52119-62906
Cover, Front Bumper
[06.2015 -] JPD10 |
52119-62906 |
— | ||
|
52127D
|
52127D
52127-62900
Cover, Front Bumper Hole, Rh
[06.2015 -] JPD10 |
52127-62900 |
— | ||
|
52128B
|
52128B
52128-62900
Cover, Front Bumper Hole, Lh
[06.2015 -] JPD10 |
52128-62900 |
— | ||
|
52197E
|
52197E
52197-62020 Bracket, Front Bumper Seal[06.2015 -] JPD10 |
52197-62020 |
from US $3.04 |
||
|
52611
|
52611
52611-62010 Absorber, Front Bumper Energy[06.2015 -] JPD10 |
52611-62010 |
US $88.82 |
||
|
52618
|
52618
52618-62010 Absorber, Front Bumper, Lower[06.2015 -] JPD10 |
52618-62010 |
US $142.80 |
||
|
52712
|
52712
52712-62010 Moulding, Front Bumper Side, Rh[06.2015 -] JPD10 |
52712-62010 |
US $150.88 |
||
|
52713A
|
52713A
52713-62010 Moulding, Front Bumper Side, Lh[06.2015 -] JPD10 |
52713-62010 |
US $150.88 |
||
|
53102A
|
53102A
53102-62010 Grille Sub-Assy, Radiator, Lwr[06.2015 -] JPD10 |
53102-62010 |
US $256 |
||
|
53127D
|
53127D
53127-62010 Grille, Radiator, Lower Side Rh[06.2015 -] JPD10 |
53127-62010 |
US $123 |
||
|
53128E
|
53128E
53128-62010 Grille, Radiator, Lower Side Lh[06.2015 -] JPD10 |
53128-62010 |
US $74.26 |
||
|
53879H
|
53879H
53879-30040 Retainer, Front Fender Liner[06.2015 -] JPD10 |
53879-30040 |
from US $4.37 |
||
|
57013C
|
57013C
57013-75020 Bracket Sub-Assy, Front Side Member, RhFRONT SIDE MEMBER, RH [06.2015 -] JPD10 |
57013-75020 |
US $101.64 |
||
|
57014A
|
57014A
57014-75020 Bracket Sub-Assy, Front Side Member, LhFRONT SIDE MEMBER, LH [06.2015 -] JPD10 |
57014-75020 |
US $161.60 |
||
|
75392J
|
75392J
75392-35200 Retainer[06.2015 -] JPD10 |
75392-35200 |
from US $1.21 |
||
|
91674A1028
|
91674A1028
91674-A1028 BOLT FLANGE |
91674-A1028 |
from US $1.35 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.66 |
||
|
9011910465
|
9011910465
90119-10465 WASHER |
90119-10465 |
US $2.15 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.70 |
||
|
9015960488
|
9015960488
90159-60488 SCREW WWASHER |
90159-60488 |
from US $0.70 |
||
|
9016750063
|
9016750063
90167-50063 SCREW PAN TAPPING |
90167-50063 |
from US $0.55 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.31 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.74 |
||
|
9018906193
|
9018906193
90189-06193 Grommet(For Engine Under Cover) |
90189-06193 |
from US $0.74 |
||
|
9018906237
|
9018906237
90189-06237 Grommet(For Engine Under Cover) |
90189-06237 |
from US $0.62 |
||
|
9026904056
|
9026904056
90269-04056 RIVET |
90269-04056 |
from US $0.80 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $0.80 |
