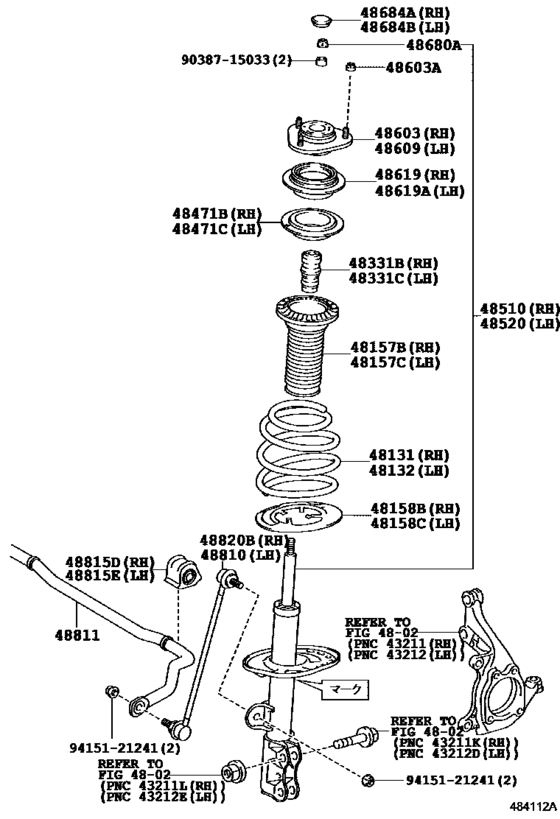

Front Spring & Shock Absorber ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-62010 Spring, Front Coil, Rh[06.2015 -] JPD10 |
48131-62010 |
US $75.71 |
||
|
48132
|
48132
48131-62010 Spring, Front Coil, Rh[06.2015 -] JPD10 |
48131-62010 |
US $75.71 |
||
|
48157B
|
48157B
48157-47020 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [06.2015 -] JPD10 |
48157-47020 |
from US $18.74 |
||
|
48157C
|
48157C
48157-47020 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [06.2015 -] JPD10 |
48157-47020 |
from US $18.74 |
||
|
48158B
|
48158B
48158-42010 Insulator, Front Coil Spring, Lower[06.2015 -] JPD10 |
48158-42010 |
from US $11.60 |
||
|
48158C
|
48158C
48158-42010 Insulator, Front Coil Spring, Lower[06.2015 -] JPD10 |
48158-42010 |
from US $11.60 |
||
|
48331B
|
48331B
48331-75040 Bumper, Front Spring, Rh[06.2015 -] JPD10 |
48331-75040 |
US $12.90 |
||
|
48331C
|
48331C
48331-75040 Bumper, Front Spring, Rh[06.2015 -] JPD10 |
48331-75040 |
US $12.90 |
||
|
48471B
|
48471B
48471-42010 Seat, Front Coil Spring, Upper[06.2015 -] JPD10 |
48471-42010 |
from US $13.69 |
||
|
48471C
|
48471C
48471-42010 Seat, Front Coil Spring, Upper[06.2015 -] JPD10 |
48471-42010 |
from US $13.69 |
||
|
48510
|
48510
48510-69665 Absorber Assy, Shock, Front Rh[06.2015 -] JPD10 MARK 48510-62010 |
48510-69665 |
US $216.94 |
||
|
48520
|
48520
48520-69225 Absorber Assy, Shock, Front Lh[06.2015 -] JPD10 MARK 48520-62010 |
48520-69225 |
US $216.94 |
||
|
48603
|
48603
48609-75020 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [06.2015 -] JPD10 |
48609-75020 |
US $91.84 |
||
|
48603A
|
48603A
90178-10030 Nut(For Front Suspension Support)[06.2015 -] JPD10 |
90178-10030 |
from US $0.92 |
||
|
48609
|
48609
48609-75020 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [06.2015 -] JPD10 |
48609-75020 |
US $91.84 |
||
|
48619
|
48619
48619-28010 Bearing, Strut Mounting[06.2015 -] JPD10 |
48619-28010 |
from US $13.12 |
||
|
48619A
|
48619A
48619-28010 Bearing, Strut Mounting[06.2015 -] JPD10 |
48619-28010 |
from US $13.12 |
||
|
48680A
|
48680A
90177-14005 Nut(For Front Support To Front Shock Absorber)[06.2015 -] JPD10 |
90177-14005 |
US $2.15 |
||
|
48684A
|
48684A
48684-42020 Cover, Front Suspension Support Dust, Rh[06.2015 -] JPD10 |
48684-42020 |
from US $16.07 |
||
|
48684B
|
48684B
48684-42020 Cover, Front Suspension Support Dust, Rh[06.2015 -] JPD10 |
48684-42020 |
from US $16.07 |
||
|
48810
|
48810
48820-42030 Link Assy, Front Stabilizer[06.2015 -] JPD10 |
48820-42030 |
from US $50.35 |
||
|
48811
|
48811
48811-12A40 Bar, Stabilizer, Front[06.2015 -] JPD10 |
48811-12A40 |
US $155.80 |
||
|
48815D
|
48815D
48815-42140 Bush, Front Stabilizer Bar, No.1[06.2015 -] JPD10 |
48815-42140 |
from US $16.36 |
||
|
48815E
|
48815E
48815-42130 Bush, Front Stabilizer Bar, No.1[06.2015 -] JPD10 |
48815-42130 |
from US $17.04 |
||
|
48820B
|
48820B
48820-42030 Link Assy, Front Stabilizer[06.2015 -] JPD10 |
48820-42030 |
from US $50.35 |
||
|
9038715033
|
9038715033
90387-15033 COLLAR |
90387-15033 |
from US $3.28 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.94 |
