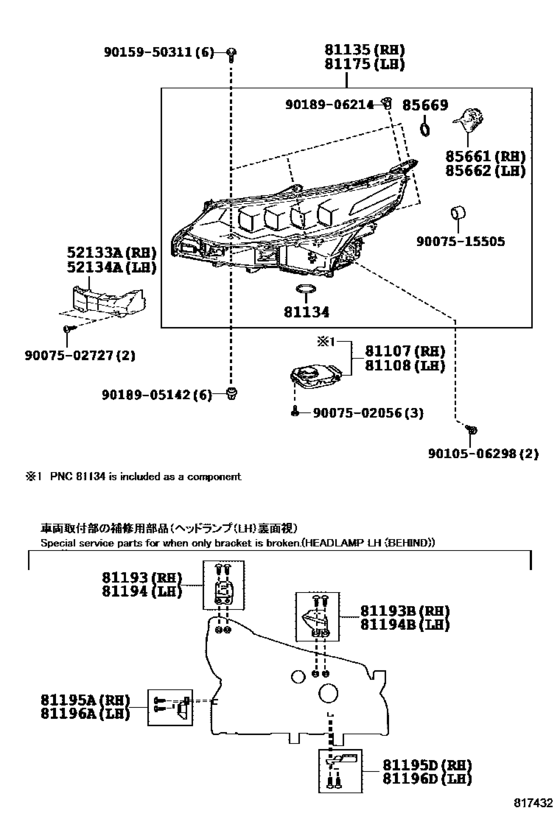

Headlamp ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52133A
|
52133A
52133-62020 Bracket, Front Bumper, Rh[06.2015 -] JPD10 |
52133-62020 |
US $30.43 |
||
|
52134A
|
52134A
52134-62020 Bracket, Front Bumper, Lh[06.2015 -] JPD10 |
52134-62020 |
US $30.43 |
||
|
81107
|
81107
81107-62040 Computer Sub-Assy, Headlamp Light Control, Rh[06.2015 -] JPD10 |
81107-62040 |
US $356.72 |
||
|
81108
|
81108
81108-62040 Computer Sub-Assy, Headlamp Light Control, Lh[06.2015 -] JPD10 |
81108-62040 |
US $356.72 |
||
|
81134
|
81134
90075-23003 Gasket, Headlamp[06.2015 -] JPD10..LHD |
90075-23003 |
US $3.58 |
||
|
81135
|
81135
81145-62050
Unit Assy, Headlamp, Rh
[06.2015 -] JPD10..LHD |
81145-62050 |
— | ||
|
81175
|
81175
81185-62050
Unit Assy, Headlamp, Lh
[06.2015 -] JPD10..LHD |
81185-62050 |
— | ||
|
81193
|
81193
81193-62010 Retainer, Headlamp Protector, Upper Rh[06.2015 -] JPD10 |
81193-62010 |
US $7.43 |
||
|
81193B
|
81193B
81193-62020 Retainer, Headlamp Protector, Upper Rh No.2[06.2015 -] JPD10 |
81193-62020 |
US $5.97 |
||
|
81194
|
81194
81194-62010 Retainer, Headlamp Protector, Upper Lh[06.2015 -] JPD10 |
81194-62010 |
US $7.43 |
||
|
81194B
|
81194B
81194-62020 Retainer, Headlamp Protector, Upper Lh No.2[06.2015 -] JPD10 |
81194-62020 |
US $5.97 |
||
|
81195A
|
81195A
81195-62010 Retainer, Headlamp Protector, Lower Rh[06.2015 -] JPD10 |
81195-62010 |
US $5.82 |
||
|
81195D
|
81195D
81195-62020 Retainer, Headlamp Protector, Lower Rh No.2[06.2015 -] JPD10 |
81195-62020 |
US $6.99 |
||
|
81196A
|
81196A
81196-62010 Retainer, Headlamp Protector, Lower Lh[06.2015 -] JPD10 |
81196-62010 |
US $5.82 |
||
|
81196D
|
81196D
81196-62020 Retainer, Headlamp Protector, Lower Lh No.2[06.2015 -] JPD10 |
81196-62020 |
US $6.99 |
||
|
85661
|
85661
85661-12020 Motor, Headlamp Leveling, Rh[06.2015 -] JPD10 |
85661-12020 |
US $62.33 |
||
|
85662
|
85662
85661-12020 Motor, Headlamp Leveling, Rh[06.2015 -] JPD10 |
85661-12020 |
US $62.33 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[06.2015 -] JPD10 |
90075-99120 |
from US $2.38 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
from US $0.60 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
from US $0.66 |
||
|
9007515505
|
9007515505
90075-15505 Cap, Headlamp Locking |
90075-15505 |
US $9.03 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.60 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.72 |
||
|
9018906214
|
9018906214
90189-06214 GROMMET SCREW |
90189-06214 |
from US $0.74 |
