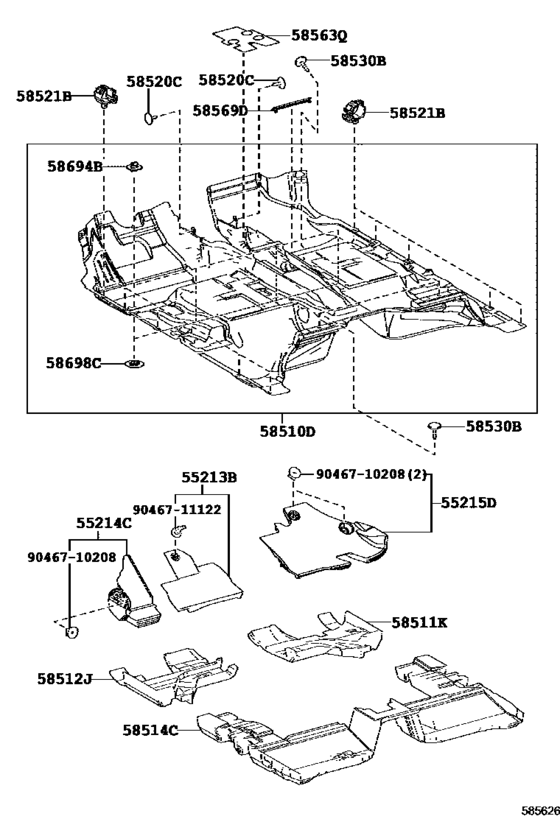

Mat & Carpet ([06.2015 - ] (1506- )LHD) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55213B
|
55213B
55213-62020
Pad, Dash Panel Insulator, No.1
[06.2015 -] JPD10..LHD |
55213-62020 |
— | ||
|
55214C
|
55214C
55214-62020
Pad, Dash Panel Insulator, No.2
[06.2015 -] JPD10..LHD |
55214-62020 |
— | ||
|
55215D
|
55215D
55215-62020
Pad, Dash Panel Insulator, No.3
[06.2015 -] JPD10..LHD |
55215-62020 |
— | ||
|
58510D
|
58510D
58510-62010-C0
Carpet Assy, Floor, Front
[06.2015 -] JPD10..LHD BLACK,TRIM0#,8# |
58510-62010-C0 |
— | ||
|
58511K
|
58511K
58511-62010 Mat, Floor, No.1[06.2015 -] JPD10 |
58511-62010 |
US $31.74 |
||
|
58512J
|
58512J
58512-62010 Mat, Floor, No.2[06.2015 -] JPD10 |
58512-62010 |
US $31.74 |
||
|
58514C
|
58514C
58513-62010 Mat, Froor, Rear[06.2015 -] JPD10 |
58513-62010 |
US $99.01 |
||
|
58520C
|
58520C
90467-05164-C0 Clip(For Deck Boad)[06.2015 - 10.2016] JPD10 BLACK,TRIM0#,8# |
90467-05164-C0 |
from US $0.68 |
||
|
58520C
|
58520C
90467-05164-C7 Clip(For Front Floor Silencer)[10.2016 -] JPD10 BLACK,TRIM0#,8# |
90467-05164-C7 |
from US $0.59 |
||
|
58521B
|
58521B
58521-52050 Hook, Floor Carpet[06.2015 -] JPD10 |
58521-52050 |
US $3.58 |
||
|
58530B
|
58530B
90467-07049-23 Clip(For Front Floor Mat)[10.2016 -] JPD10 BLACK,TRIM0#,8# |
90467-07049-23 |
from US $0.78 |
||
|
58530B
|
58530B
90467-07049-C0 Clip[06.2015 - 10.2016] JPD10 BLACK,TRIM0#,8# |
90467-07049-C0 |
US $1.79 |
||
|
58563Q
|
58563Q
58563-62010 Silencer, Front Floor, No.3[06.2015 -] JPD10 |
58563-62010 |
US $3.93 |
||
|
58569D
|
58569D
58569-12010-C0 Cover, Front Floor Caution Plate[06.2015 -] JPD10 BLACK,TRIM0#,8# |
58569-12010-C0 |
US $12.72 |
||
|
58694B
|
58694B
58694-78010 Plate, Mat Set, Upper[06.2015 -] JPD10 |
58694-78010 |
from US $1.68 |
||
|
58698C
|
58698C
58698-78010 Plate, Mat Set, Lower[06.2015 -] JPD10 |
58698-78010 |
from US $3.94 |
||
|
9046710208
|
9046710208
90467-10208 Clip |
90467-10208 |
US $1.10 |
||
|
9046711122
|
9046711122
90467-11122 Clip |
90467-11122 |
US $1.79 |
