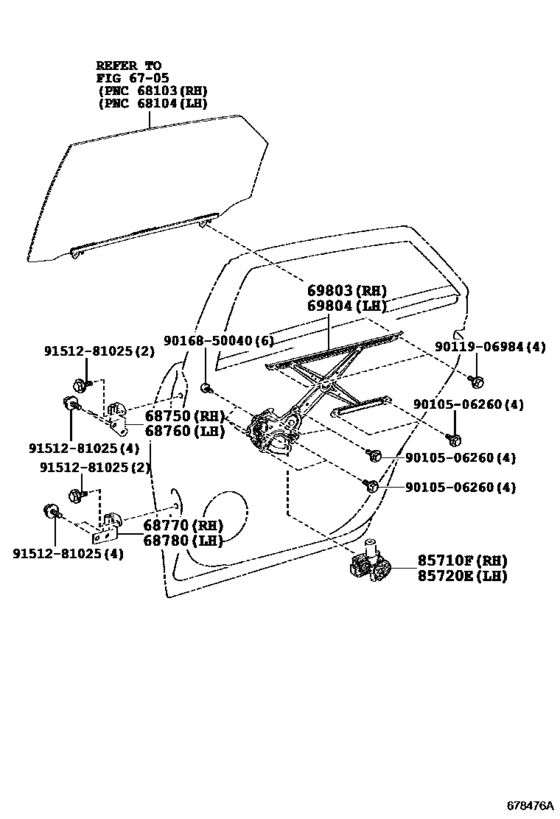

Rear Door Window Regulator & Hinge ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68730-30180 Hinge Assy, Front Door, Upper Rh[06.2015 -] JPD10 |
68730-30180 |
US $29.94 |
||
|
68760
|
68760
68740-30080 Hinge Assy, Front Door, Upper Lh[06.2015 -] JPD10 |
68740-30080 |
US $29.94 |
||
|
68770
|
68770
68770-30120 Hinge Assy, Rear Door, Lower Rh[06.2015 -] JPD10 |
68770-30120 |
US $28.10 |
||
|
68780
|
68780
68780-30130 Hinge Assy, Rear Door, Lower Lh[06.2015 -] JPD10 |
68780-30130 |
US $27.60 |
||
|
69803
|
69803
69801-52140 Regulator Sub-Assy, Front Door Window, Rh[06.2015 -] JPD10 |
69801-52140 |
from US $66.19 |
||
|
69804
|
69804
69802-52130 Regulator Sub-Assy, Front Door Window, Lh[06.2015 -] JPD10 |
69802-52130 |
from US $66.19 |
||
|
85710F
|
85710F
85710-78020 Motor Assy, Power Window Regulator, Rh[06.2015 -] JPD10 |
85710-78020 |
US $281.01 |
||
|
85720E
|
85720E
85720-78020 Motor Assy, Power Window Regulator, Lh[06.2015 -] JPD10 |
85720-78020 |
US $281.01 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.66 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9151281025
|
9151281025
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.13 |
