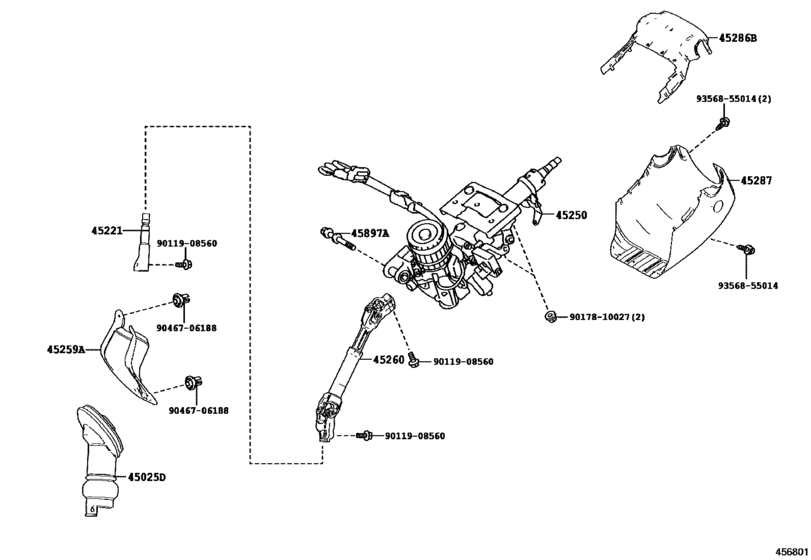

Steering Column & Shaft ([06.2015 - ] RHD (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-75010
Cover Sub-Assy, Steering Column Hole, No.1
[06.2015 -] JPD10..LHD |
45025-75010 |
— | ||
|
45221
|
45221
45221-62051 Shaft, Steering Intermediate[06.2015 -] JPD10 |
45221-62051 |
US $104.83 |
||
|
45250
|
45250
45250-62060
Column Assy, Steering
[06.2015 -] JPD10..LHD |
45250-62060 |
— | ||
|
45259A
|
45259A
45259-75011
Sheet, Column Hole Cover Silencer
[06.2015 -] JPD10..LHD |
45259-75011 |
— | ||
|
45260
|
45260
45260-62020
Shaft Assy, Steering Intermediate, No.2
[06.2015 -] JPD10..LHD |
45260-62020 |
— | ||
|
45286B
|
45286B
45286-33270-C0 Cover, Steering Column, Upr[06.2015 -] JPD10 BLACK,TRIM0#,8# |
45286-33270-C0 |
US $18.20 |
||
|
45287
|
45287
45287-33360-C0 Cover, Steering Column, Lwr[06.2015 -] JPD10 BLACK,TRIM0#,8# |
45287-33360-C0 |
from US $27.96 |
||
|
45897A
|
45897A
90119-10981 Bolt, Tilt Steering Pawl Set[06.2015 -] JPD10 |
90119-10981 |
from US $1.52 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $4.47 |
||
|
9017810027
|
9017810027
90178-10027 New Genuine Part |
90178-10027 |
US $1.79 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.87 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
