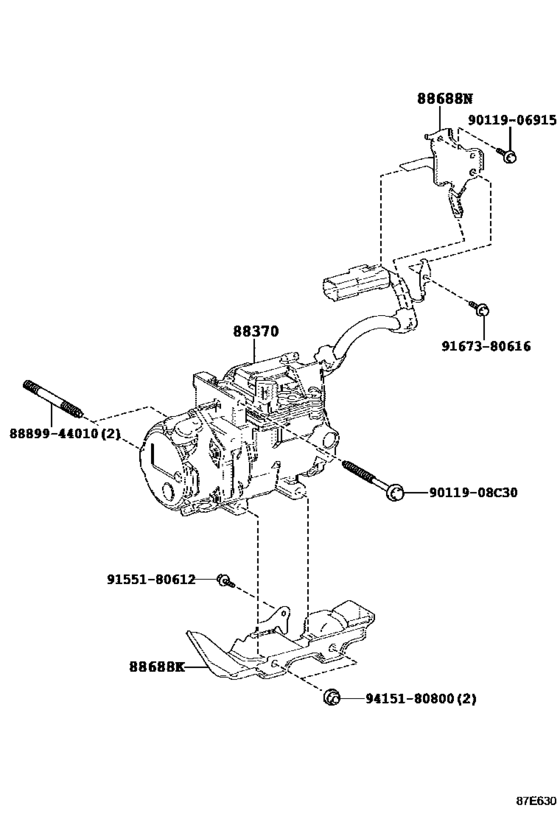

Heating & Air Conditioning - Compressor ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88370
|
88370
88370-62010
Compressor Assy, W/motor
[06.2015 -] JPD10 |
88370-62010 |
— | ||
|
88688K
|
88688K
88688-62030
Bracket, Cooler Compressor
[06.2015 -] JPD10 |
88688-62030 |
— | ||
|
88688N
|
88688N
88688-62040
Bracket, Cooler
[06.2015 -] JPD10 |
88688-62040 |
— | ||
|
9011908C30
|
9011908C30
90119-08C30 New Genuine Part |
90119-08C30 |
from US $0.89 |
||
|
8889944010
|
8889944010
88899-44010 Bolt, Stud(For Fc Cooling Water Pump) |
88899-44010 |
US $3.59 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.64 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
