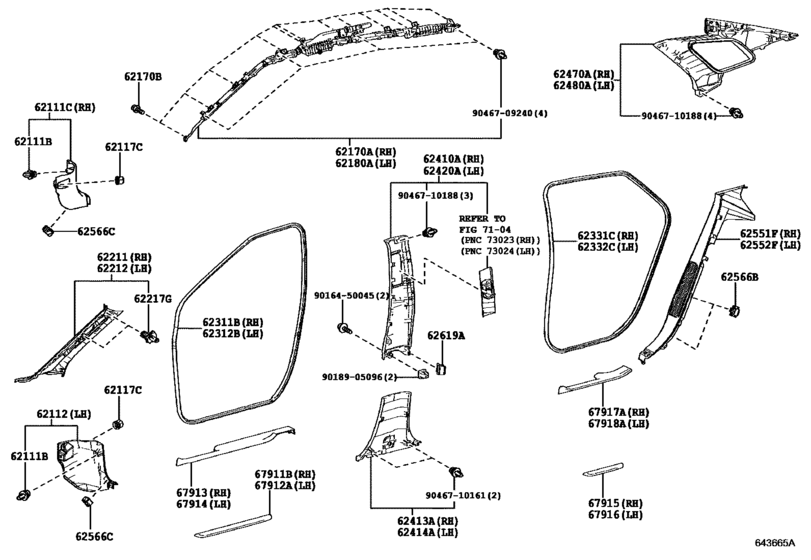

Inside Trim Board & Door Opening Trim Moulding ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62111B
|
62111B
90467-10161 Clip[06.2015 -] JPD10 |
90467-10161 |
from US $0.76 |
||
|
62111C
|
62111C
62111-62010-C0 Board, Cowl Side Trim, Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
62111-62010-C0 |
US $40.48 |
||
|
62112
|
62112
62112-62010-C0 Board, Cowl Side Trim, Lh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
62112-62010-C0 |
US $37.42 |
||
|
62117C
|
62117C
90467-06147 Clip(For Cowl Side Trim)[06.2015 -] JPD10 |
90467-06147 |
from US $0.92 |
||
|
62170A
|
62170A
62170-62010 Air Bag Assy, Curtain Shield, Rh[06.2015 -] JPD10 |
62170-62010 |
US $623.17 |
||
|
62170B
|
62170B
90119-06869 Bolt, W/washer[06.2015 -] JPD10 |
90119-06869 |
US $1.08 |
||
|
62180A
|
62180A
62180-62010 Air Bag Assy, Curtain Shield, Lh[06.2015 -] JPD10 |
62180-62010 |
US $623.17 |
||
|
62211
|
62211
62210-62010-C1 Garnish, Front Pillar, Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
62210-62010-C1 |
US $113.57 |
||
|
62212
|
62212
62220-62010-C1 Garnish, Front Pillar, Lh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
62220-62010-C1 |
US $113.57 |
||
|
62217G
|
62217G
62217-52120 Clip(For Front Body Pillar Garnish)[06.2015 -] JPD10 |
62217-52120 |
from US $1.77 |
||
|
62311B
|
62311B
62311-62010 Weatherstrip, Front Door Opening Trim, Rh[06.2015 -] JPD10 |
62311-62010 |
US $69.89 |
||
|
62312B
|
62312B
62312-62010 Weatherstrip, Front Door Opening Trim, Lh[06.2015 -] JPD10 |
62312-62010 |
US $69.89 |
||
|
62331C
|
62331C
62331-62010 Weatherstrip, Rear Door Opening Trim, Rh[06.2015 -] JPD10 |
62331-62010 |
US $69.89 |
||
|
62332C
|
62332C
62332-62010 Weatherstrip, Rear Door Opening Trim, Lh[06.2015 -] JPD10 |
62332-62010 |
US $69.89 |
||
|
62410A
|
62410A
62410-62010-A0 Garnish Assy, Center Pillar, Rh[06.2015 -] JPD10 WARM WHITE,TRIM0# |
62410-62010-A0 |
US $78.62 |
||
|
62410A
|
62410A
62410-62010-C0 Garnish Assy, Center Pillar, Rh[06.2015 -] JPD10 BLACK,TRIM8# |
62410-62010-C0 |
US $78.62 |
||
|
62413A
|
62413A
62413-62010-C1 Garnish, Center Pillar, Lower Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
62413-62010-C1 |
US $51.11 |
||
|
62414A
|
62414A
62414-62010-C1 Garnish, Center Pillar, Lower Lh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
62414-62010-C1 |
US $51.11 |
||
|
62420A
|
62420A
62420-62010-A0 Garnish Assy, Center Piller, Lh[06.2015 -] JPD10 WARM WHITE,TRIM0# |
62420-62010-A0 |
US $78.62 |
||
|
62420A
|
62420A
62420-62010-C0 Garnish Assy, Center Piller, Lh[06.2015 -] JPD10 BLACK,TRIM8# |
62420-62010-C0 |
US $78.62 |
||
|
62470A
|
62470A
62470-62010-A1 Garnish Assy, Roof Side, Inner Rh[06.2015 -] JPD10 WARM WHITE,TRIM0#,8# |
62470-62010-A1 |
US $116.48 |
||
|
62480A
|
62480A
62480-62010-A1 Garnish Assy, Roof Side, Inner Lh[06.2015 -] JPD10 WARM WHITE,TRIM0#,8# |
62480-62010-A1 |
US $116.48 |
||
|
62551F
|
62551F
62551-62010-C0 Garnish, Rear Seat Side, Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
62551-62010-C0 |
US $60.57 |
||
|
62552F
|
62552F
62552-62010-C0 Garnish, Rear Seat Side, Lh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
62552-62010-C0 |
US $57.37 |
||
|
62566B
|
62566B
62566-30010 Clip, No.2(For Cowl Side Trim)[06.2015 -] JPD10 |
62566-30010 |
from US $1.50 |
||
|
62566C
|
62566C
62566-30010 Clip, No.2(For Cowl Side Trim)[06.2015 -] JPD10 |
62566-30010 |
from US $1.50 |
||
|
62619A
|
62619A
62619-30030 Plate, Side Trim Set[06.2015 -] JPD10 |
62619-30030 |
US $1.10 |
||
|
67911B
|
67911B
67911-12080-C0 Plate, Front Door Scuff, Outside, Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
67911-12080-C0 |
US $18.49 |
||
|
67912A
|
67912A
67911-12080-C0 Plate, Front Door Scuff, Outside, Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
67911-12080-C0 |
US $18.49 |
||
|
67913
|
67913
67913-62010-C0 Plate, Front Door Scuff, Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
67913-62010-C0 |
US $74.26 |
||
|
67914
|
67914
67914-62010-C0 Plate, Front Door Scuff, Lh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
67914-62010-C0 |
US $74.26 |
||
|
67915
|
67915
67915-62010-C0 Plate, Rear Door Scuff, Outside Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
67915-62010-C0 |
US $16.74 |
||
|
67916
|
67916
67915-62010-C0 Plate, Rear Door Scuff, Outside Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
67915-62010-C0 |
US $16.74 |
||
|
67917A
|
67917A
67917-62010-C0 Plate, Rear Door Scuff, Rh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
67917-62010-C0 |
US $25.63 |
||
|
67918A
|
67918A
67918-62010-C0 Plate, Rear Door Scuff, Lh[06.2015 -] JPD10 BLACK,TRIM0#,8# |
67918-62010-C0 |
US $25.63 |
||
|
9016450045
|
9016450045
90164-50045 SCREW BINDING |
90164-50045 |
US $1.97 |
||
|
9018905096
|
9018905096
90189-05096 GROMMET, SCREW |
90189-05096 |
US $1.43 |
||
|
9046709240
|
9046709240
90467-09240 Clip (For Roof Side, Inner Upper Garnish) |
90467-09240 |
from US $0.84 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.76 |
||
|
9046710188
|
9046710188
90467-10188 Clip(For Deck Boad) |
90467-10188 |
from US $0.90 |
