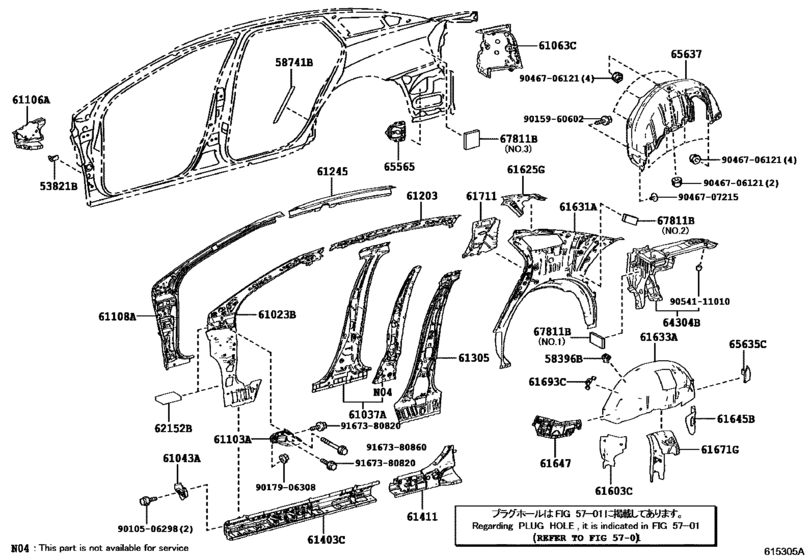

Side Member ([06.2015 - ] INNER PANEL,RH (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821B
|
53821B
53821-75020 Bracket, Front Fender, Rear RhFRONT FENDER, REAR RH [06.2015 -] JPD10 |
53821-75020 |
from US $4.84 |
||
|
58396B
|
58396B
58396-32030 Bracket, Wire Harness Clamp[06.2015 -] JPD10 |
58396-32030 |
US $2.91 |
||
|
58741B
|
58741B
58741-62010
Protector, Quarter Panel, Rh
[06.2015 -] JPD10 |
58741-62010 |
— | ||
|
61023B
|
61023B
61023-62010 Pillar Sub-Assy, Front Body, Inner Rh[06.2015 -] JPD10 |
61023-62010 |
US $259.17 |
||
|
61037A
|
61037A
61037-62010 Reinforcement Sub-Assy, Center Body Pillar, Rh[06.2015 -] JPD10 |
61037-62010 |
US $215.49 |
||
|
61043A
|
61043A
61043-62010 Extension Sub-Assy, Front Body Pillar, Outer Rh[06.2015 -] JPD10 |
61043-62010 |
US $19.07 |
||
|
61063C
|
61063C
61063-62010 Trough Sub-Assy, Luggage Door Opening, Front Rh[06.2015 -] JPD10 |
61063-62010 |
US $54.02 |
||
|
61103A
|
61103A
61103-62010 Reinforcement Sub-Assy, Cowl Side, Rh[06.2015 -] JPD10 |
61103-62010 |
US $35.67 |
||
|
61106A
|
61106A
61106-62010 Reinforce Sub-Assy, Front Body Pillar, Upper Rh[06.2015 -] JPD10 |
61106-62010 |
US $60.13 |
||
|
61108A
|
61108A
61108-62900 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[06.2015 -] JPD10 |
61108-62900 |
US $180.54 |
||
|
61203
|
61203
61203-62010 Rail Sub-Assy, Roof Side, Inner Rh[06.2015 -] JPD10 |
61203-62010 |
US $100.46 |
||
|
61245
|
61245
61245-62010 Reinforcement, Roof Side Rail, Outer Rh[06.2015 -] JPD10 |
61245-62010 |
US $87.36 |
||
|
61305
|
61305
61305-62010 Reinforce Sub-Assy, Center Body Pillar, Lower Rh[06.2015 -] JPD10 |
61305-62010 |
US $179.09 |
||
|
61403C
|
61403C
61403-62900 Reinforce Sub-Assy, Rocker, Outer Rh[06.2015 -] JPD10 |
61403-62900 |
US $368.37 |
||
|
61411
|
61411
61407-62010 Panel, Rocker, Outer Rh[06.2015 -] JPD10 |
61407-62010 |
US $132.50 |
||
|
61603C
|
61603C
61603-75010 Panel Sub-Assy, Quarter Wheel House, RhQUARTER WHEEL HOUSE, INNER RH [06.2015 -] JPD10 |
61603-75010 |
US $39.02 |
||
|
61625G
|
61625G
61625-62010 Extension, Quarter Panel, Rear Rh[06.2015 -] JPD10 |
61625-62010 |
US $31.60 |
||
|
61631A
|
61631A
61631-62010 Panel, Quarter Wheel House, Outer Rh[06.2015 -] JPD10 |
61631-62010 |
US $187.82 |
||
|
61633A
|
61633A
61633-12230 Panel, Quarter Wheel House, Inner Rh[06.2015 -] JPD10 |
61633-12230 |
US $110.66 |
||
|
61645B
|
61645B
61645-62010 Gusset, Quarter Wheel House, Rear Rh[06.2015 -] JPD10 |
61645-62010 |
US $19.22 |
||
|
61647
|
61647
61647-62010 Retainer, Rear Seat Back Pivot, Lower[06.2015 -] JPD10 |
61647-62010 |
US $39.17 |
||
|
61671G
|
61671G
61065-12032 Support, Rear Suspension Spring, Rh[06.2015 -] JPD10 |
61065-12032 |
US $64.36 |
||
|
61693C
|
61693C
61693-62010 Retainer, Rear Seat Back Set, Rh[06.2015 -] JPD10 |
61693-62010 |
US $3.93 |
||
|
61711
|
61711
61711-62010 Panel, Roof Side, Outer Rh[06.2015 -] JPD10 |
61711-62010 |
US $47.32 |
||
|
62152B
|
62152B
62152-12050 Pad, Cowl Side Silencer, No.2[06.2015 -] JPD10 |
62152-12050 |
US $1.60 |
||
|
64304B
|
64304B
64304-62010 Reinforce Sub-Assy, Package Tray Bracket, Rh[06.2015 -] JPD10 |
64304-62010 |
US $155.79 |
||
|
65565
|
65565
65565-33030 Patch, Side Panel Rear End, Rh[06.2015 -] JPD10 |
65565-33030 |
US $20.16 |
||
|
65635C
|
65635C
65635-62010 Plate, Rear Wheel House, Rear Rh[06.2015 -] JPD10 |
65635-62010 |
US $15.14 |
||
|
65637
|
65637
65637-62010 Liner, Rear Wheel House, Rh[06.2015 -] JPD10 |
65637-62010 |
US $61.01 |
||
|
67811B
|
67811B
67811-33080 Pad, Side Panel Silencer[12.2015 -] JPD10 NO.3 |
67811-33080 |
US $21.34 |
||
|
67811B
|
67811B
67811-62010 Pad, Side Panel Silencer[12.2015 -] JPD10 NO.2 |
67811-62010 |
US $9.03 |
||
|
67811B
|
67811B
67811-62020 Pad, Side Panel Silencer[12.2015 -] JPD10 NO.1 |
67811-62020 |
US $17.04 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.60 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
from US $0.92 |
||
|
9046706121
|
9046706121
90467-06121 Clip, Rear Bumper Side |
90467-06121 |
from US $2.94 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $0.80 |
||
|
9054111010
|
9054111010
90541-11010 Cushion, Luggage Compartment Door |
90541-11010 |
from US $0.96 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
|
9167380860
|
9167380860
91673-80860 New Genuine Part |
91673-80860 |
US $1.31 |
