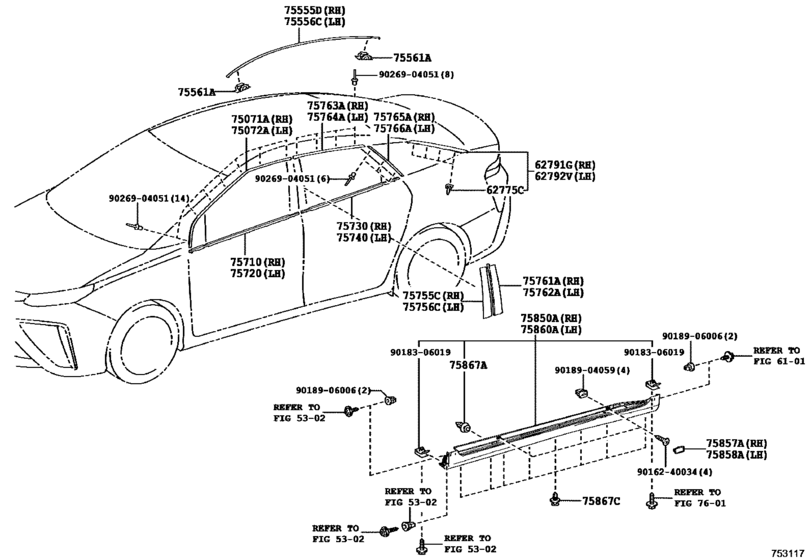

Side Moulding ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62775C
|
62775C
62775-76010 Clip, Quarter Window[06.2015 -] JPD10 |
62775-76010 |
US $3.05 |
||
|
62791G
|
62791G
62791-62010 Moulding, Quarter Window, Upper Rh[06.2015 -] JPD10 |
62791-62010 |
US $34.94 |
||
|
62792V
|
62792V
62792-62010 Moulding, Quarter Window, Upper Lh[06.2015 -] JPD10 |
62792-62010 |
US $57.79 |
||
|
75071A
|
75071A
75071-62010 Moulding Sub-Assy, Front Door, Outside Rh[06.2015 -] JPD10 |
75071-62010 |
US $80.08 |
||
|
75072A
|
75072A
75072-62010 Moulding Sub-Assy, Front Door, Outside Lh[06.2015 -] JPD10 |
75072-62010 |
US $80.08 |
||
|
75555D
|
75555D
75555-62010 Moulding, Roof Drip Side Finish, Center Rh[06.2015 -] JPD10 |
75555-62010 |
US $29.56 |
||
|
75556C
|
75556C
75556-62010 Moulding, Roof Drip Side Finish, Center Lh[06.2015 -] JPD10 |
75556-62010 |
US $29.56 |
||
|
75561A
|
75561A
75561-52040 Clip, Roof Drip Side Finish Moulding, No.1[06.2015 -] JPD10 |
75561-52040 |
from US $0.98 |
||
|
75710
|
75710
75710-62010 Moulding Assy, Front Door Belt, Rh[06.2015 -] JPD10 |
75710-62010 |
US $57.80 |
||
|
75720
|
75720
75720-62010 Moulding Assy, Front Door Belt, Lh[06.2015 -] JPD10 |
75720-62010 |
US $93.48 |
||
|
75730
|
75730
75730-62010 Moulding Assy, Rear Door Belt, Rh[06.2015 -] JPD10 |
75730-62010 |
US $48.73 |
||
|
75740
|
75740
75740-62010 Moulding Assy, Rear Door Belt, Lh[06.2015 -] JPD10 |
75740-62010 |
US $80.47 |
||
|
75755C
|
75755C
75755-62010 Moulding, Front Door Window Frame, Rear Rh[06.2015 -] JPD10 |
75755-62010 |
US $21.40 |
||
|
75756C
|
75756C
75756-62010 Moulding, Front Door Window Frame, Rear Lh[06.2015 -] JPD10 |
75756-62010 |
US $21.40 |
||
|
75761A
|
75761A
75761-62010 Moulding, Rear Door Window Frame, Front Rh[06.2015 -] JPD10 |
75761-62010 |
US $28.39 |
||
|
75762A
|
75762A
75762-62010 Moulding, Rear Door Window Frame, Front Lh[06.2015 -] JPD10 |
75762-62010 |
US $46.03 |
||
|
75763A
|
75763A
75763-62010 Moulding, Rear Door Window Frame, Upper Rh[06.2015 -] JPD10 |
75763-62010 |
US $25.33 |
||
|
75764A
|
75764A
75764-62010 Moulding, Rear Door Window Frame, Upper Lh[06.2015 -] JPD10 |
75764-62010 |
US $41.16 |
||
|
75765A
|
75765A
75765-62010 Moulding, Rear Door Window Frame, Rear Rh[06.2015 -] JPD10 |
75765-62010 |
US $19.22 |
||
|
75766A
|
75766A
75766-62010 Moulding, Rear Door Window Frame, Rear Lh[06.2015 -] JPD10 |
75766-62010 |
US $31.25 |
||
|
75850A
|
75850A
75850-62010-A1 Moulding Assy, Body Rocker Panel, Rh[06.2015 -] JPD10 WHITE PEARL CS.,2NL |
75850-62010-A1 |
US $388.75 |
||
|
75850A
|
75850A
75850-62010-B0 Moulding Assy, Body Rocker Panel, Rh[06.2015 -] JPD10 PRECIOUS SILVER,2MR |
75850-62010-B0 |
US $388.75 |
||
|
75850A
|
75850A
75850-62010-C1 Moulding Assy, Body Rocker Panel, Rh[06.2015 -] JPD10 PRECIOUS BLACK,2MS |
75850-62010-C1 |
US $388.75 |
||
|
75850A
|
75850A
75850-62010-J1 Moulding Assy, Body Rocker Panel, Rh[06.2015 -] JPD10 DK.BLUE MC.,2MT |
75850-62010-J1 |
US $388.75 |
||
|
75850A
|
75850A
75850-62010-J3 Moulding Assy, Body Rocker Panel, Rh[06.2015 -] JPD10 PURE BLUE ME.,2NV |
75850-62010-J3 |
US $388.75 |
||
|
75857A
|
75857A
75857-62020-A1 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 WHITE PEARL CS.,2NL |
75857-62020-A1 |
US $2.51 |
||
|
75857A
|
75857A
75857-62020-B0 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 PRECIOUS SILVER,2MR |
75857-62020-B0 |
US $2.51 |
||
|
75857A
|
75857A
75857-62020-C0 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 PRECIOUS BLACK,2MS |
75857-62020-C0 |
US $2.51 |
||
|
75857A
|
75857A
75857-62020-J1 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 DK.BLUE MC.,2MT |
75857-62020-J1 |
US $2.51 |
||
|
75857A
|
75857A
75857-62020-J3 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 PURE BLUE ME.,2NV |
75857-62020-J3 |
US $2.51 |
||
|
75858A
|
75858A
75857-62020-A1 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 WHITE PEARL CS.,2NL |
75857-62020-A1 |
US $2.51 |
||
|
75858A
|
75858A
75857-62020-B0 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 PRECIOUS SILVER,2MR |
75857-62020-B0 |
US $2.51 |
||
|
75858A
|
75858A
75857-62020-C0 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 PRECIOUS BLACK,2MS |
75857-62020-C0 |
US $2.51 |
||
|
75858A
|
75858A
75857-62020-J1 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 DK.BLUE MC.,2MT |
75857-62020-J1 |
US $2.51 |
||
|
75858A
|
75858A
75857-62020-J3 Cover, Rocker Panel Moulding, Rh[06.2015 -] JPD10 PURE BLUE ME.,2NV |
75857-62020-J3 |
US $2.51 |
||
|
75860A
|
75860A
75860-62010-A1 Moulding Assy, Body Rocker Panel, Lh[06.2015 -] JPD10 WHITE PEARL CS.,2NL |
75860-62010-A1 |
US $585 |
||
|
75860A
|
75860A
75860-62010-B0 Moulding Assy, Body Rocker Panel, Lh[06.2015 -] JPD10 PRECIOUS SILVER,2MR |
75860-62010-B0 |
US $585 |
||
|
75860A
|
75860A
75860-62010-C1 Moulding Assy, Body Rocker Panel, Lh[06.2015 -] JPD10 PRECIOUS BLACK,2MS |
75860-62010-C1 |
US $585 |
||
|
75860A
|
75860A
75860-62010-J1 Moulding Assy, Body Rocker Panel, Lh[06.2015 -] JPD10 DK.BLUE MC.,2MT |
75860-62010-J1 |
US $585 |
||
|
75860A
|
75860A
75860-62010-J3 Moulding Assy, Body Rocker Panel, Lh[06.2015 -] JPD10 PURE BLUE ME.,2NV |
75860-62010-J3 |
US $585 |
||
|
75867A
|
75867A
75867-30130 Clip, Roof Drip Moulding, No.1[06.2015 -] JPD10 |
75867-30130 |
from US $3.47 |
||
|
75867C
|
75867C
90467-07215 Clip[06.2015 -] JPD10 |
90467-07215 |
from US $0.80 |
||
|
9016240034
|
9016240034
90162-40034 SCREW OVAL |
90162-40034 |
from US $0.66 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.78 |
||
|
9018904059
|
9018904059
90189-04059 CLIP |
90189-04059 |
from US $0.74 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
||
|
9026904051
|
9026904051
90269-04051 RIVET |
90269-04051 |
from US $0.60 |
