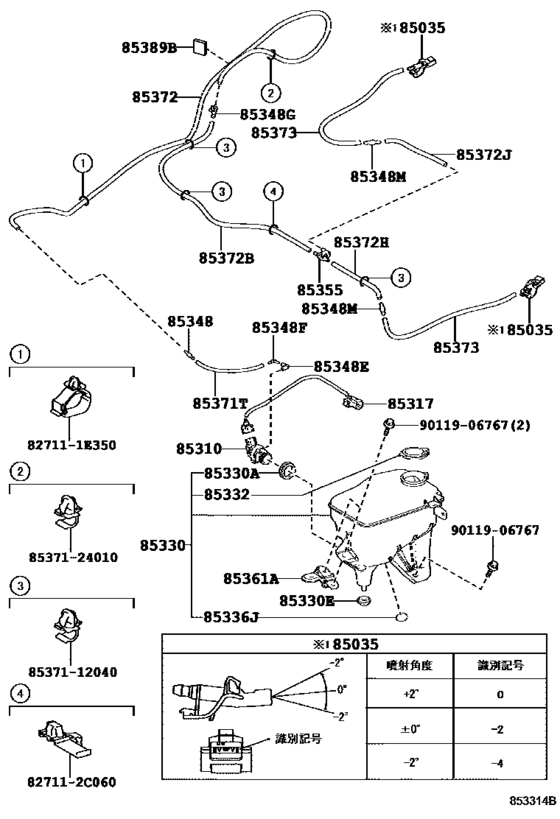

Windshield Washer ([06.2015 - ] (1506- )) Diagram Toyota MIRAI
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 06.2015
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12400 Nozzle Sub-Assy, Washer[06.2015 -] JPD10 ANGLE 0 |
85381-12400 |
from US $8.56 |
||
|
85035
|
85035
85381-12410 Nozzle Sub-Assy, Washer[06.2015 -] JPD10 ANGLE -2 |
85381-12410 |
US $7.37 |
||
|
85035
|
85035
85381-12420 Nozzle Sub-Assy, Washer[06.2015 -] JPD10 ANGLE +2 |
85381-12420 |
from US $7.37 |
||
|
85310
|
85310
85330-71010 Motor And Pump Assy, Windshield Washer[06.2015 -] JPD10 |
85330-71010 |
from US $90.20 |
||
|
85317
|
85317
85317-62010
Wiring Assy, Washer
[06.2015 -] JPD10 |
85317-62010 |
— | ||
|
85330
|
85330
85315-62010
Jar Assy, Windshield Washer
[06.2015 -] JPD10 |
85315-62010 |
— | ||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[06.2015 -] JPD10 |
85336-60300 |
from US $1.92 |
||
|
85330E
|
85330E
90480-18010 Grommet, Radiator Reserve Tank Hose[06.2015 -] JPD10 |
90480-18010 |
from US $2.15 |
||
|
85332
|
85332
85316-62020
Cap, Windshield Washer Jar
[06.2015 -] JPD10 |
85316-62020 |
— | ||
|
85336J
|
85336J
85336-62020
Protector, Washer Jar
[06.2015 -] JPD10 |
85336-62020 |
— | ||
|
85348
|
85348
85375-10260 Joint, Windshield Washer Hose, No.1[06.2015 -] JPD10 |
85375-10260 |
from US $1.44 |
||
|
85348E
|
85348E
85355-14481 Joint, Windshield Washer Elbow, No.1[06.2015 -] JPD10 |
85355-14481 |
US $0.98 |
||
|
85348F
|
85348F
85355-20200 Joint, Windshield Washer Hose, No.1[06.2015 -] JPD10 |
85355-20200 |
from US $0.98 |
||
|
85348G
|
85348G
85375-17050 Joint, Windshield Washer Hose, No.1[06.2015 -] JPD10 |
85375-17050 |
US $0.92 |
||
|
85348M
|
85348M
85375-10260 Joint, Windshield Washer Hose, No.1[06.2015 -] JPD10 |
85375-10260 |
from US $1.44 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[06.2015 -] JPD10 |
85321-28020 |
from US $10.20 |
||
|
85361A
|
85361A
85337-62020
Bracket, Windshield Washer, No.1
[06.2015 -] JPD10 |
85337-62020 |
— | ||
|
85371T
|
85371T
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2015 -] JPD10 *H,L=175 |
90099-33080 |
from US $5.38 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2015 -] JPD10 *H,L=1170 |
90099-33080 |
from US $5.38 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2015 -] JPD10 *H,L=700 |
90099-33080 |
from US $5.38 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2015 -] JPD10 *H,L=155 |
90099-33080 |
from US $5.38 |
||
|
85372J
|
85372J
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2015 -] JPD10 *H,L=165 |
90099-33080 |
from US $5.38 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2015 -] JPD10 *H,L=310 |
90099-33080 |
from US $5.38 |
||
|
85389B
|
85389B
85389-33380
Protector, Windshield Washer
[06.2015 -] JPD10 |
85389-33380 |
— | ||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
from US $2.09 |
||
|
827112C060
|
827112C060
82711-2C060 Clamp No.1 (For Windseield Washer) |
82711-2C060 |
US $1.61 |
||
|
8537112040
|
8537112040
85371-12040 Clamp, Rear Washer Hose |
85371-12040 |
from US $0.90 |
||
|
8537124010
|
8537124010
85371-24010 Hose, Windshield Washer (from Motor To Joint) |
85371-24010 |
US $1.61 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.68 |
