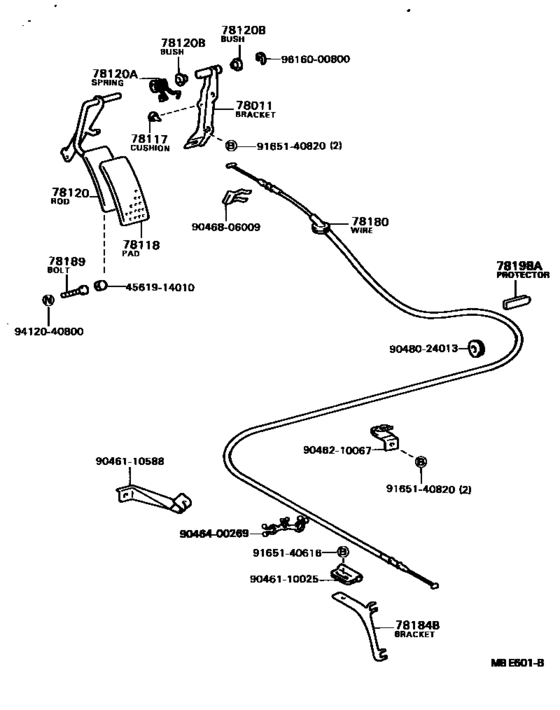

Accelerator Link ([05.1983 - 01.1985] (8305-8501)CR21..RHD) Diagram Toyota MODEL-F
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- CR21
- grade
- DLX
- Roof
- MRF
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 05.1983
- To
- 08.1985
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78011
|
78011
78011-87005
Bracket Sub-Assy, Accelerator Pedal Support
[05.1983 - 01.1985] CR21..RHD |
78011-87005 |
— | ||
|
78117
|
78117
90541-05006 Cushion (For Accelerator Rod)[11.1982 - 08.1988] CR21,YR2#,31..RHD |
90541-05006 |
US $1.16 |
||
|
78118
|
78118
78119-95700
Pad, Accelerator Pedal
[11.1982 - 08.1988] CR21,YR2#,31 |
78119-95700 |
— | ||
|
78120
|
78120
78103-87005
Rod, Accelerator Link
[05.1983 - 01.1985] CR21..RHD |
78103-87005 |
— | ||
|
78120A
|
78120A
90508-20061 Spring, Compression (For Accelerator Link Rod)[11.1982 - 08.1988] CR21,YR20,21..RHD |
90508-20061 |
US $6.99 |
||
|
78120B
|
78120B
78118-87001 Bush (For Accelerator Link Rod)[11.1982 - 08.1988] CR21,YR2#,31..RHD |
78118-87001 |
US $2.48 |
||
|
78180
|
78180
78180-87009 Wire Assy, Accelerator[05.1983 - 08.1985] CR21..RHD |
78180-87009 |
US $78.62 |
||
|
78180
|
78180
78180-87012 Wire Assy, Accelerator[08.1985 - 08.1988] CR21 |
78180-87012 |
US $99.01 |
||
| replacement | |||||
|
78180
|
78180
78180-28080 Cable Assy, Accelerator Control[08.1985 - 08.1988] CR21 |
78180-28080 |
US $90.27 |
||
|
78184B
|
78184B
78184-87004
Bracket, Accelerator Control Cable
[05.1983 - 08.1985] CR21 |
78184-87004 |
— | ||
|
78184B
|
78184B
78184-87006 Bracket, Accelerator Control Cable[08.1985 - 08.1988] CR21 |
78184-87006 |
US $14.27 |
||
|
78189
|
78189
91131-40850 Bolt, Accelerator Pedal Stopper[03.1985 - 08.1988] CR21 |
91131-40850 |
US $1.60 |
||
|
78198A
|
78198A
78198-87001 Protector, Accelerator Control Cable[06.1983 - 08.1988] CR21..RHD |
78198-87001 |
US $4.08 |
||
| replacement | |||||
|
78198A
|
78198A
71647-87001 Protector, Accelerator Control Cable[06.1983 - 08.1988] CR21..RHD |
71647-87001 |
US $5.97 |
||
|
78198A
|
78198A
82991-87002
Protector, Accelerator Control Cable
[05.1983 - 06.1983] CR21..RHD |
82991-87002 |
— | ||
|
4561914010
|
4561914010
45619-14010 Cover, Knuckle Stopper |
45619-14010 |
US $8.64 |
||
|
9046110025
|
9046110025
90461-10025 Clamp (For Accelerator Wire Set) |
90461-10025 |
US $3.35 |
||
|
9046110588
|
9046110588
90461-10588 New Genuine Part |
90461-10588 |
US $8.44 |
||
|
9046210067
|
9046210067
90462-10067 New Genuine Part |
90462-10067 |
US $6.99 |
||
|
9046400269
|
9046400269
90464-00269 New Genuine Part |
90464-00269 |
US $2.62 |
||
|
9046806009
|
9046806009
90468-06009 New Genuine Part |
90468-06009 |
US $4.37 |
||
|
9048024013
|
9048024013
90480-24013 New Genuine Part |
90480-24013 |
US $7.13 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.90 |
||
