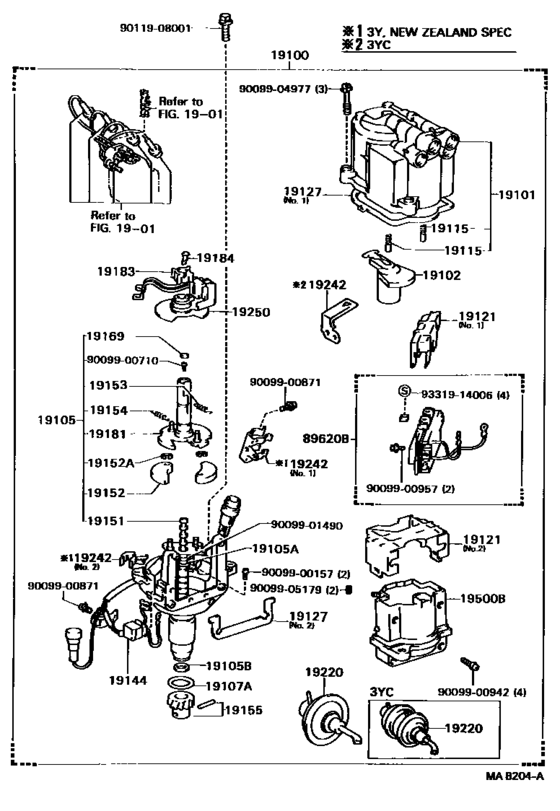

Distributor ([08.1988 - ] (8808- )3Y#) Diagram Toyota MODEL-F
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- YR21
- grade
- DLX
- Roof
- MRF
- ENGINE
- 3YC
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19030-72030 Distributor Assy[08.1988 - 01.1989] 3YC..YR21 |
19030-72030 |
US $1,718.08 |
||
| replacement | |||||
|
19100
|
19100
19030-72032 Distributor Assy[08.1988 - 01.1989] 3YC..YR21 |
19030-72032 |
US $1,423.97 |
||
|
19100
|
19100
19030-72040 Distributor Assy[01.1989 - 01.1990] 3YC..YR21 |
19030-72040 |
US $1,572.48 |
||
|
19101
|
19101
19101-71010 Cap Sub-Assy, Distributor[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 |
19101-71010 |
US $134.68 |
||
|
19102
|
19102
19102-16040 Rotor Sub-Assy, Distributor[08.1988 - 01.1990] 3Y#..YR21 |
19102-16040 |
from US $8.95 |
||
|
19105
|
19105
19105-71010 Governor Sub-Assy[08.1988 - 01.1989] 3YC..YR21 |
19105-71010 |
US $168.90 |
||
|
19105
|
19105
19105-72050 Governor Sub-Assy[01.1989 - 01.1990] 3YC..YR21 |
19105-72050 |
US $149.97 |
||
|
19105A
|
19105A
90099-01486
Washer(For Governor Shaft Thrust)
[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 T=0.3 |
90099-01486 |
— | ||
|
19105A
|
19105A
90099-01487
Washer(For Governor Shaft Thrust)
[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 T=0.4 |
90099-01487 |
— | ||
|
19105A
|
19105A
90099-01488
Washer(For Governor Shaft Thrust)
[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 T=0.6 |
90099-01488 |
— | ||
|
19105A
|
19105A
90099-01489
Washer(For Governor Shaft Thrust)
[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 T=0.5 |
90099-01489 |
— | ||
|
19105B
|
19105B
90099-01429
Washer, No.2(For Governor Shaft Thrust)
[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 |
90099-01429 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-63010
Cover, Dust Proof
[08.1988 - 01.1990] 3Y#..YR21 NO.1 |
19121-63010 |
— | ||
|
19121
|
19121
19121-63040
Cover, Dust Proof
[08.1988 - 01.1990] 3Y#..YR21 NO.2; 4YEC..YR22,31 |
19121-63040 |
— | ||
|
19127
|
19127
19127-63010 Packing, Dust Proof[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 NO.1 |
19127-63010 |
from US $7.34 |
||
|
19127
|
19127
19127-63020 Packing, Dust Proof[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 NO.2 |
19127-63020 |
US $4.37 |
||
|
19144
|
19144
19144-72030
Lead, Distributor Breaker
[08.1988 - 01.1990] 3YC..YR21 |
19144-72030 |
— | ||
|
19151
|
19151
19151-71010 Shaft, Governor[08.1988 - 01.1990] 3Y#..YR21 |
19151-71010 |
US $39.46 |
||
|
19152
|
19152
19152-63010
Weight, Governor
[08.1988 - 01.1990] 3Y#..YR21 |
19152-63010 |
— | ||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[08.1988 -] 3Y#..YR21 |
90099-07122 |
— | ||
|
19153
|
19153
19153-71060 Spring, Governor, A[08.1988 - 01.1989] 3Y#..YR21 |
19153-71060 |
US $5.39 |
||
|
19153
|
19153
19153-72050 Spring, Governor, AGOVERNOR, A [01.1989 - 01.1990] 3YC..YR21 |
19153-72050 |
US $5.24 |
||
|
19154
|
19154
19153-71060 Spring, Governor, A[08.1988 - 01.1989] 3Y#..YR21 |
19153-71060 |
US $5.39 |
||
|
19154
|
19154
19153-72050 Spring, Governor, AGOVERNOR, A [01.1989 - 01.1990] 3YC..YR21 |
19153-72050 |
US $5.24 |
||
|
19155
|
19155
19195-71010
Gear, Spiral, Distributor
[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 |
19195-71010 |
— | ||
| replacement | |||||
|
19155
|
19155
19195-72090 Gear, Spiral, Distributor[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 |
19195-72090 |
US $43.68 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1988 - 01.1990] 3Y#..YR21 |
19169-63011 |
— | ||
|
19181
|
19181
19181-71010
Rotor, Distributor, Signal
[08.1988 - 01.1989] 3YC..YR21 |
19181-71010 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-72011
Rotor, Distributor, Signal
[08.1988 - 01.1989] 3YC..YR21 |
19181-72011 |
— | ||
|
19181
|
19181
19181-74060
Rotor, Distributor, Signal
[01.1989 - 01.1990] 3YC..YR21 |
19181-74060 |
— | ||
|
19183
|
19183
19183-63030
Rotor, Signal
[08.1988 - 01.1990] 3Y#..YR21 |
19183-63030 |
— | ||
|
19184
|
19184
19184-63010
Spring, Rotor Set
[08.1988 - 01.1990] 3Y#..YR21 |
19184-63010 |
— | ||
|
19220
|
19220
19220-72030 Advancer Assy, Vacuum, Distributor[08.1988 - 01.1989] 3YC..YR21 |
19220-72030 |
US $96.10 |
||
|
19220
|
19220
19220-72040 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [01.1989 - 01.1990] 3YC..YR21 |
19220-72040 |
US $96.10 |
||
|
19242
|
19242
19242-72030 Clamp, Cord[08.1988 - 01.1990] 3YC..YR21 |
19242-72030 |
US $8.88 |
||
|
19250
|
19250
19251-63011
Generator Assy, Signal
[08.1988 - 01.1990] 3Y#..YR21 |
19251-63011 |
— | ||
|
19500B
|
19500B
90919-02139 Coil Assy, Ignition[08.1988 - 01.1990] 3Y#..YR21 |
90919-02139 |
US $169.48 |
||
|
89620B
|
89620B
89620-32020 Igniter[08.1988 - 01.1990] YR21 |
89620-32020 |
US $285.38 |
||
|
9009900157
|
9009900157
90099-00157
Bush, Commutator End Frame
|
90099-00157 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900942
|
9009900942
90099-00942 New Genuine Part |
90099-00942 |
US $1.75 |
||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009901490
|
9009901490
90099-01490
New Genuine Part
|
90099-01490 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
|
9011908001
|
9011908001
90119-08001 New Genuine Part |
90119-08001 |
US $2.56 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
