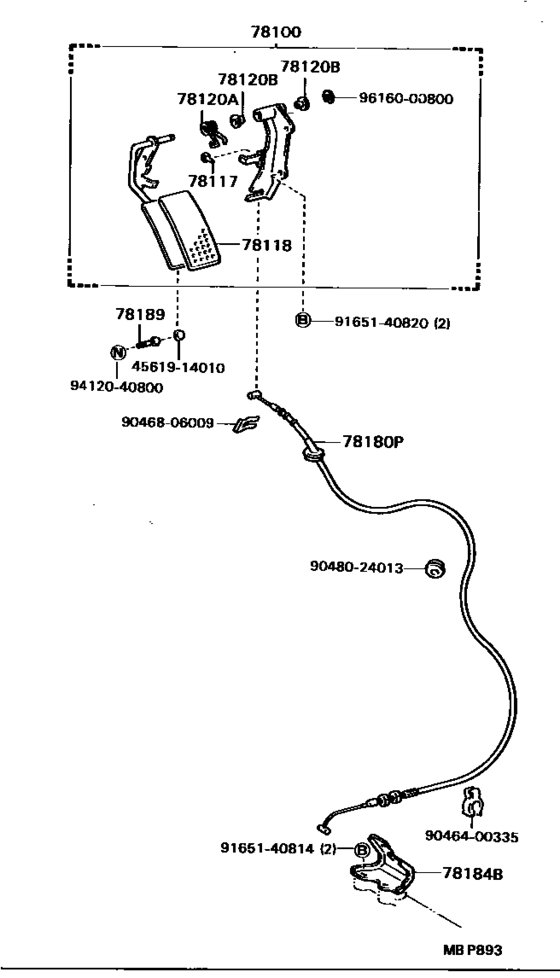

Accelerator Link ([08.1988 - ] (8808- )ARL) Diagram Toyota MODEL-F
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- YR22
- grade
- DLX
- Roof
- MRF
- ENGINE
- 4YEC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-87008 Link Assy, Accelerator[08.1988 - 01.1990] YR22,31..5F |
78100-87008 |
US $41.20 |
||
|
78117
|
78117
90541-05006 Cushion (For Accelerator Rod)[08.1988 - 01.1990] YR2#,31..ARL |
90541-05006 |
US $1.16 |
||
|
78118
|
78118
78119-95700
Pad, Accelerator Pedal
[08.1988 - 01.1990] YR2#,31 |
78119-95700 |
— | ||
|
78120A
|
78120A
90508-23078 Spring, Compression (For Accelerator Link Rod)[08.1988 - 01.1990] YR22,31..5F |
90508-23078 |
US $3.20 |
||
|
78120B
|
78120B
78118-87001 Bush (For Accelerator Link Rod)[08.1988 - 01.1990] YR2#,31..ARL |
78118-87001 |
US $2.48 |
||
|
78180P
|
78180P
78180-87011 Wire Assy, Accelerator[08.1988 - 01.1990] YR22,31 |
78180-87011 |
US $88.82 |
||
| replacement | |||||
|
78180P
|
78180P
78180-28150 Cable Assy, Accelerator Control[08.1988 - 01.1990] YR22,31 |
78180-28150 |
US $99.01 |
||
|
78184B
|
78184B
78184-87005 Bracket Sub-Assy, Accelerator Control Cable[08.1988 - 01.1990] YR22,31 |
78184-87005 |
US $18.20 |
||
|
78189
|
78189
91131-40835 Bolt, Accelerator Pedal Stopper[08.1988 - 01.1990] YR2#,31..ARL |
91131-40835 |
US $1.89 |
||
|
4561914010
|
4561914010
45619-14010 Cover, Knuckle Stopper |
45619-14010 |
US $8.64 |
||
|
9046400335
|
9046400335
90464-00335 New Genuine Part |
90464-00335 |
US $2.18 |
||
|
9046806009
|
9046806009
90468-06009 New Genuine Part |
90468-06009 |
US $4.37 |
||
|
9048024013
|
9048024013
90480-24013 New Genuine Part |
90480-24013 |
US $7.13 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.90 |
||
