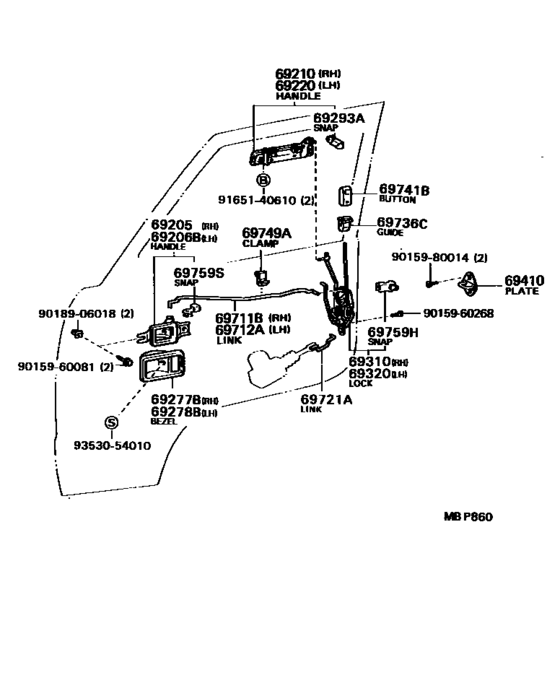

Front Door Lock & Handle ([08.1988 - ] (8808- )) Diagram Toyota MODEL-F
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- YR22
- grade
- DLX
- Roof
- MRF
- ENGINE
- 4YEC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-12070-03
Handle Sub-Assy, Front Door Inside, Rh
[08.1988 - 01.1990] YR2#,31..MRF GRAY,TRIM1# |
69205-12070-03 |
— | ||
| replacement | |||||
|
69205
|
69205
69205-12070-B2 Handle Sub-Assy, Front Door Inside, Rh (Blue Gray)[08.1988 - 01.1990] YR2#,31..MRF GRAY,TRIM1# |
69205-12070-B2 |
US $19.22 |
||
|
69206B
|
69206B
69206-12070-03
Handle Sub-Assy, Front Door Inside, Lh
[08.1988 - 01.1990] YR2#,31..MRF GRAY,TRIM1# |
69206-12070-03 |
— | ||
| replacement | |||||
|
69206B
|
69206B
69206-16040-13
Handle Sub-Assy, Front Door Inside, Rh
[08.1988 - 01.1990] YR2#,31..MRF GRAY,TRIM1# |
69206-16040-13 |
— | ||
|
69210
|
69210
69210-87002 Handle Assy, Front Door, Outside Rh[08.1988 - 01.1990] YR2#,31 |
69210-87002 |
US $49.36 |
||
|
69220
|
69220
69220-87002 Handle Assy, Front Door Outside, Lh[08.1988 - 01.1990] YR2#,31 |
69220-87002 |
US $49.36 |
||
|
69277B
|
69277B
69277-89104-13
Bezel, Front Door Inside Handle
[08.1988 - 01.1990] YR2#,31..MRF GRAY,TRIM1# |
69277-89104-13 |
— | ||
| replacement | |||||
|
69277B
|
69277B
69277-89104-B2 Bezel, Front Door Inside Handle (Blue Gray)[08.1988 - 01.1990] YR2#,31..MRF GRAY,TRIM1# |
69277-89104-B2 |
from US $6.56 |
||
|
69278B
|
69278B
69277-89104-13
Bezel, Front Door Inside Handle
[08.1988 - 01.1990] YR2#,31..MRF GRAY,TRIM1# |
69277-89104-13 |
— | ||
| replacement | |||||
|
69278B
|
69278B
69277-89104-B2 Bezel, Front Door Inside Handle (Blue Gray)[08.1988 - 01.1990] YR2#,31..MRF GRAY,TRIM1# |
69277-89104-B2 |
from US $6.56 |
||
|
69293A
|
69293A
69293-12010 Snap, Front Door Outside Handle[08.1988 - 01.1990] YR2#,31 RH |
69293-12010 |
US $3.49 |
||
|
69293A
|
69293A
69293-12020 Snap, Front Door Outside Handle[08.1988 - 01.1990] YR2#,31 LH |
69293-12020 |
US $4.16 |
||
|
69310
|
69310
69310-87006 Lock Assy, Front Door, RhFRONT DOOR, RH [08.1988 - 01.1990] YR2#..DLX;YR21..GEN |
69310-87006 |
US $117.94 |
||
|
69320
|
69320
69320-87005 Lock Assy, Front Door, LhFRONT DOOR, LH [08.1988 - 01.1990] YR2#..DLX;YR21..GEN |
69320-87005 |
US $117.94 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[08.1988 - 01.1990] YR2#,31 |
69410-87001 |
from US $9.50 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[08.1988 - 01.1990] YR2#,31 |
69410-AA020 |
US $37.29 |
||
|
69711B
|
69711B
69711-87002 Link Assy, Front Door Open Control, Rh[08.1988 - 01.1990] YR2#,31 |
69711-87002 |
US $8.74 |
||
|
69712A
|
69712A
69712-87002 Link Assy, Front Door Open Control, Lh[08.1988 - 01.1990] YR2#,31 |
69712-87002 |
US $8.74 |
||
|
69736C
|
69736C
69736-12030
Guide, Front Door Lock Link
[08.1988 - 01.1990] YR2#,31 |
69736-12030 |
— | ||
|
69741B
|
69741B
69741-32010-01 Knob, Front Door Lock Control[08.1988 - 01.1990] YR2#..DLX BLACK,TRIM1# |
69741-32010-01 |
US $4.51 |
||
| replacement | |||||
|
69741B
|
69741B
69741-32010-20 Knob, Front Door Lock Control[08.1988 - 01.1990] YR2#..DLX BLACK,TRIM1# |
69741-32010-20 |
US $4.89 |
||
|
69749A
|
69749A
69749-20010 Clamp, Front Door Lock Link[08.1988 - 01.1990] YR2#,31 |
69749-20010 |
from US $2.88 |
||
|
69759H
|
69759H
69759-20040 Snap, Auxiliary Catch Release Lever Control Link[08.1988 - 01.1990] YR2#..DLX;YR21..GEN YELLOW |
69759-20040 |
US $4.32 |
||
|
69759H
|
69759H
69759-20050 Snap(For Rear Door Lock)[08.1988 - 01.1990] YR2#..DLX;YR21..GEN BROWN |
69759-20050 |
US $2.62 |
||
|
69759H
|
69759H
69759-20100 Snap, Tail Gate Handle[08.1988 - 01.1990] YR2#,31 RED |
69759-20100 |
US $3.84 |
||
|
69759H
|
69759H
69759-20110 Snap, Auxiliary Catch Release Lever Control Link[08.1988 - 01.1990] YR2#,31 BLACK |
69759-20110 |
from US $1.93 |
||
|
69759S
|
69759S
69759-20060 Snap(For Rear Door Inside Handle)[08.1988 - 01.1990] YR2#,31 RH |
69759-20060 |
US $3.84 |
||
|
69759S
|
69759S
69759-20070 Snap(For Rear Door Inside Handle)[08.1988 - 01.1990] YR2#,31 LH |
69759-20070 |
from US $1.89 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9015960268
|
9015960268
90159-60268 Screw |
90159-60268 |
US $2.08 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $1.92 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.80 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
