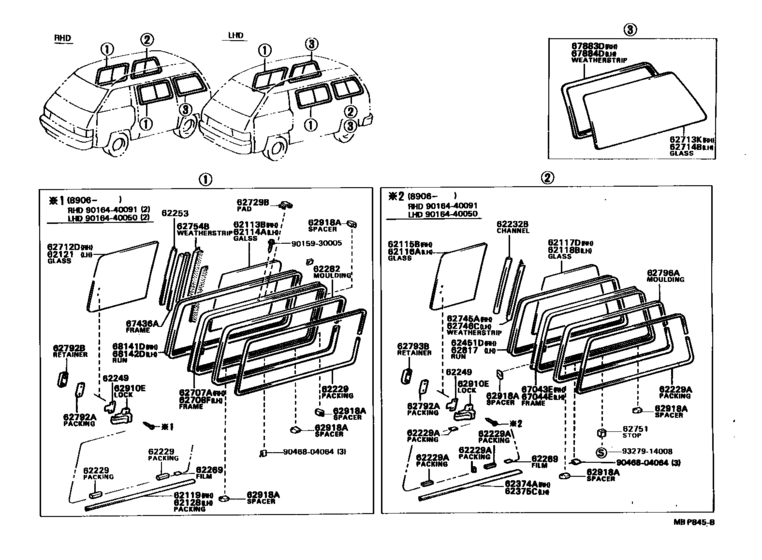

Side Window ([08.1988 - ] (8808- )) Diagram Toyota MODEL-F
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- YR22
- grade
- DLX
- Roof
- MRF
- ENGINE
- 4YEC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62113B
|
62113B
62113-87002
Glass, Side Front Window, Rear Rh
[08.1988 - 01.1990] YR2#..DLX *TT,T=4.0; YR2#,31..MRF..GL..ARL *TT,T=4.0 |
62113-87002 |
— | ||
|
62113B
|
62113B
62113-87004
Glass, Side Window, No.1, Rear (For Slide Type)
[08.1988 - 01.1990] YR2#..DLX *TEM,T=4.0 |
62113-87004 |
— | ||
| replacement | |||||
|
62113B
|
62113B
62113-87002
Glass, Side Front Window, Rear Rh
[08.1988 - 01.1990] YR2#..DLX *TEM,T=4.0 |
62113-87002 |
— | ||
|
62114A
|
62114A
62288-87001 Glass, Slide Door Window, Rear Lh[08.1988 - 01.1990] YR2#..DLX; YR2#,31..MRF..GL..ARL |
62288-87001 |
US $126.67 |
||
|
62114A
|
62114A
62288-87003 Glass, Side Window, No.1, Rear (For Slide Type)SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE) [08.1988 - 01.1990] YR2#..DLX |
62288-87003 |
US $116.48 |
||
| replacement | |||||
|
62114A
|
62114A
62288-87001 Glass, Slide Door Window, Rear Lh[08.1988 - 01.1990] YR2#..DLX |
62288-87001 |
US $126.67 |
||
|
62115B
|
62115B
62115-87001 Glass, Rear Side Window, Front Rh[08.1988 - 01.1990] YR2#..DLX; YR2#,31..MRF..GL..ARL |
62115-87001 |
US $100.46 |
||
|
62115B
|
62115B
62115-87003
Glass, Side Window, No.2, Front (For Slide Type)
[08.1988 - 01.1990] YR2#..DLX |
62115-87003 |
— | ||
| replacement | |||||
|
62115B
|
62115B
62115-87001 Glass, Rear Side Window, Front Rh[08.1988 - 01.1990] YR2#..DLX |
62115-87001 |
US $100.46 |
||
|
62117D
|
62117D
62117-87001 Glass, Reart Side Window, Rear Rh[08.1988 - 01.1990] YR2#..DLX; YR2#,31..MRF..GL..ARL |
62117-87001 |
US $131.04 |
||
|
62117D
|
62117D
62117-87003
Glass, Reart Side Window, Rear Rh
[08.1988 - 01.1990] YR2#..DLX |
62117-87003 |
— | ||
| replacement | |||||
|
62117D
|
62117D
62117-87001 Glass, Reart Side Window, Rear Rh[08.1988 - 01.1990] YR2#..DLX |
62117-87001 |
US $131.04 |
||
|
62119
|
62119
62119-87001
Packing, Side Front Window, Rh
[08.1988 - 01.1990] YR2#,31..ARL |
62119-87001 |
— | ||
|
62121
|
62121
62733-87005
Glass, Side Window, No.1, Front (For Slide Type)
[08.1988 - 01.1990] YR2#..DLX *TT,T=4.0; YR2#,31..MRF..GL..ARL *TT,T=4.0 |
62733-87005 |
— | ||
|
62121
|
62121
62733-87007
Glass, Side Window, No.1, Front (For Slide Type)
[08.1988 - 01.1990] YR2#..DLX *TEM,T=4.0 |
62733-87007 |
— | ||
| replacement | |||||
|
62121
|
62121
62733-87005
Glass, Side Window, No.1, Front (For Slide Type)
[08.1988 - 01.1990] YR2#..DLX *TEM,T=4.0 |
62733-87005 |
— | ||
|
62128
|
62128
62346-87001
Packing, Slide Door Window, Lh
[08.1988 - 01.1990] YR2#,31..ARL |
62346-87001 |
— | ||
|
62229
|
62229
62229-95J00 Packing, Side Window[08.1988 - 01.1990] YR2#,31 |
62229-95J00 |
US $1.92 |
||
|
62229A
|
62229A
62229-87001 Packing, Side Window[08.1988 - 01.1990] YR2#,31..ARL L=20 |
62229-87001 |
US $2.77 |
||
|
62229A
|
62229A
62229-87002 Packing, Side Window[08.1988 - 01.1990] YR2#,31 L=15 |
62229-87002 |
US $2.77 |
||
|
62229A
|
62229A
62229-95J00 Packing, Side Window[08.1988 - 01.1990] YR2#,31 L=50 |
62229-95J00 |
US $1.92 |
||
|
62232B
|
62232B
62232-87001 Channel, Side Window Glass[08.1988 - 01.1990] YR2#,31 |
62232-87001 |
US $31.60 |
||
|
62249
|
62249
62249-95700 Plate, Side Window, Rh[08.1988 - 01.1990] YR2#,31 |
62249-95700 |
from US $1.58 |
||
|
62253
|
62253
62253-87002 Weatherstrip, Side Window, Center[08.1988 - 01.1990] YR2#,31 |
62253-87002 |
US $13.54 |
||
|
62269
|
62269
62269-87001 Film, Side Window Frame, Rh[08.1988 - 01.1990] YR2#,31 |
62269-87001 |
US $2.77 |
||
|
62282
|
62282
62282-87002 Moulding, Side Front Window[08.1988 - 01.1990] YR2#,31..MRF..ARL |
62282-87002 |
US $77.17 |
||
|
62282
|
62282
63319-87002 Clip, Side Window Outer Sash, No.1 (For Slide Type)[08.1988 - 01.1990] YR2#,31..MRF..ARL |
63319-87002 |
US $74.26 |
||
|
62374A
|
62374A
62374-87001
Packing, Side Rear Window, Rh
[08.1988 - 01.1990] YR2#,31..ARL |
62374-87001 |
— | ||
|
62451D
|
62451D
62451-87010
Run, Rear Side Window, Rh
[08.1988 - 01.1990] YR2#,31..ARL |
62451-87010 |
— | ||
|
62707A
|
62707A
62707-87001
Sash Assy, Side Window Outer, No.1 (For Slide Type)
[08.1988 - 01.1990] YR2#,31..ARL |
62707-87001 |
— | ||
| replacement | |||||
|
62707A
|
62707A
62707-87005 Frame Sub-Assy, Side Front Window, Rh[08.1988 - 01.1990] YR2#,31..ARL |
62707-87005 |
US $158.70 |
||
|
62708F
|
62708F
67044-87001
Sash Assy, Side Window Outer, No.1 (For Slide Type)
[08.1988 - 01.1990] YR2#,31..ARL |
67044-87001 |
— | ||
| replacement | |||||
|
62708F
|
62708F
67044-87004 Frame Sub-Assy, Slide Door Window, Lh[08.1988 - 01.1990] YR2#,31..ARL |
67044-87004 |
US $158.70 |
||
|
62712D
|
62712D
62712-87001 Glass, Side Window, No.1, Front (For Slide Type)[08.1988 - 01.1990] YR2#..DLX; YR2#,31..MRF..GL..ARL |
62712-87001 |
US $135.41 |
||
|
62712D
|
62712D
62712-87002 Glass, Side Window, No.1, Front (For Slide Type)SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE) [08.1988 - 01.1990] YR2#..DLX |
62712-87002 |
US $119.39 |
||
| replacement | |||||
|
62712D
|
62712D
62712-87001 Glass, Side Window, No.1, Front (For Slide Type)[08.1988 - 01.1990] YR2#..DLX |
62712-87001 |
US $135.41 |
||
|
62714B
|
62714B
62714-87006 Glass, Side Window, Rear Lh[08.1988 - 01.1990] YR2#..DLX *TT,T=3.5; YR2#,31..MRF..GL..ARL *TT,T=3.5 |
62714-87006 |
US $198.02 |
||
|
62714B
|
62714B
62714-87008 Glass, Side Window, Rear Lh[08.1988 - 01.1990] YR2#..DLX *TEM,T=3.5 |
62714-87008 |
US $173.26 |
||
| replacement | |||||
|
62714B
|
62714B
62714-87006 Glass, Side Window, Rear Lh[08.1988 - 01.1990] YR2#..DLX *TEM,T=3.5 |
62714-87006 |
US $198.02 |
||
|
62729B
|
62729B
62729-87001
Guide, Side Window Inner Sash, No.1
[08.1988 - 01.1990] YR2#,31 |
62729-87001 |
— | ||
|
62745A
|
62745A
62746-87001 Weatherstrip, Side Window Glass, Rh[08.1988 - 01.1990] YR2#,31..ARL |
62746-87001 |
US $13.54 |
||
|
62751
|
62751
62751-95661
Stop, Side Front Window Glass, Rh
[08.1988 - 01.1990] YR2#,31 |
62751-95661 |
— | ||
|
62754B
|
62754B
62754-87002 Weatherstrip, Side Window Glass Channel, No.2[08.1988 - 01.1990] YR2#,31 |
62754-87002 |
US $9.17 |
||
|
62792A
|
62792A
62792-95A00 Packing, Side Rear Window, Rh[08.1988 - 06.1989] YR2#,31 |
62792-95A00 |
from US $1.64 |
||
|
62792B
|
62792B
62793-95704 Retainer, Side Window Lock, No.1[08.1988 - 06.1989] YR2#,31 |
62793-95704 |
from US $7.47 |
||
|
62792B
|
62792B
62793-95J01 Retainer, Side Window Lock, Rh[06.1989 - 01.1990] YR2#,31..ARL |
62793-95J01 |
from US $7.06 |
||
|
62793B
|
62793B
62793-95704 Retainer, Side Window Lock, No.1[08.1988 - 06.1989] YR2#,31 |
62793-95704 |
from US $7.47 |
||
|
62793B
|
62793B
62793-95J01 Retainer, Side Window Lock, Rh[06.1989 - 01.1990] YR2#,31..ARL |
62793-95J01 |
from US $7.06 |
||
|
62796A
|
62796A
62796-87002 Clip, Side Window Outer Sash, No.2 (For Slide Type)[08.1988 - 01.1990] YR2#,31..MRF..ARL |
62796-87002 |
US $72.36 |
||
|
62910E
|
62910E
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[08.1988 - 01.1990] YR2#,31 |
62910-95703 |
from US $12.07 |
||
|
62918A
|
62918A
62918-87001 Spacer, Side Window Frame[08.1988 - 01.1990] YR2#,31..ARL SIDE |
62918-87001 |
US $5.39 |
||
|
62918A
|
62918A
62918-87002 Spacer, Side Window Frame[08.1988 - 01.1990] YR2#,31 LOWER |
62918-87002 |
US $8.59 |
||
|
67043E
|
67043E
67043-87001
Sash Assy, Side Window Outer, No.2 (For Slide Type)
[08.1988 - 01.1990] YR2#,31..ARL |
67043-87001 |
— | ||
| replacement | |||||
|
67043E
|
67043E
67043-87004 Frame Sub-Assy, Side Rear Window, Rh[08.1988 - 01.1990] YR2#,31..ARL |
67043-87004 |
US $158.70 |
||
|
67436A
|
67436A
67436-87002 Channel, Side Window Glass, No.1[08.1988 - 01.1990] YR2#,31 |
67436-87002 |
US $34.94 |
||
|
67884D
|
67884D
67883-87001
Weatherstrip, Side Window, No.2(For Fixed Type)
[08.1988 - 01.1990] YR2#,31..ARL |
67883-87001 |
— | ||
|
68141D
|
68141D
68141-87004
Run, Side Window, No.1(For Slide Type)
[08.1988 - 01.1990] YR2#,31..ARL |
68141-87004 |
— | ||
|
68142D
|
68142D
62756-87003
Run, Slide Door Window, Lh
[08.1988 - 01.1990] YR2#,31..ARL |
62756-87003 |
— | ||
|
9015930005
|
9015930005
90159-30005 SCREW |
90159-30005 |
from US $1.44 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.88 |
||
|
9016440091
|
9016440091
90164-40091 SCREW |
90164-40091 |
from US $1.25 |
||
|
9046804064
|
9046804064
90468-04064 New Genuine Part |
90468-04064 |
US $2.72 |
||
|
9327914008
|
9327914008
93279-14008
New Genuine Part
|
93279-14008 |
— | ||
