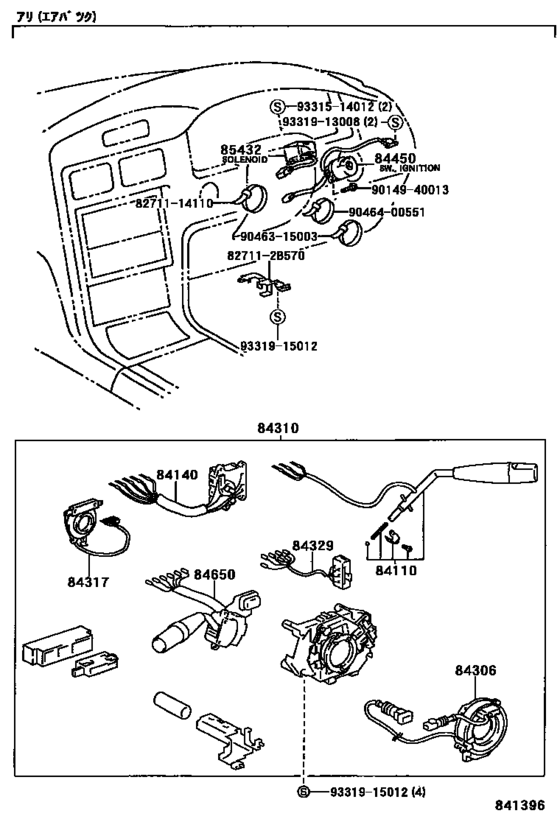

Switch & Relay & Computer ([06.1996 - ] COMBINATION & IGNITION SWITCH (9606- )) Diagram Toyota MR 2/ MR-S
- Year
- 1989 - 1999
- Sales region
- Japan
- Frame
- SW20
- grade
- GT
- body
- CP
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- Model
- MR2
- From
- 12.1989
- To
- 08.1999
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80049 Switch Assy, Light Control, No.1[12.1989 - 04.1993] SW20..GT |
84112-80049 |
US $69.60 |
||
|
84110
|
84110
84112-80154 Switch Assy, Light Control, No.1[04.1993 - 11.1993] SW20..GT; SW20..G Gﾘﾐﾃﾂﾄﾞ OR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) OR ｱﾘ(*CRC) |
84112-80154 |
US $84.45 |
||
|
84110
|
84110
84112-80155
Switch Assy, Light Control, No.1
[11.1993 - 06.1996] SW20..GT |
84112-80155 |
— | ||
| replacement | |||||
|
84110
|
84110
84112-80154 Switch Assy, Light Control, No.1[11.1993 - 06.1996] SW20..GT |
84112-80154 |
US $84.45 |
||
|
84110
|
84110
84112-80212 Switch Assy, Light Control, No.1[06.1996 - 08.1999] SW20 ｱﾘ(ﾃﾞﾝｷｼｷ *80) |
84112-80212 |
US $81.54 |
||
|
84140
|
84140
84140-20370 Switch Assy, Headlamp Dimmer[11.1993 - 06.1996] SW20..GT |
84140-20370 |
US $72.80 |
||
| replacement | |||||
|
84140
|
84140
84140-26120 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [11.1993 - 06.1996] SW20..GT |
84140-26120 |
US $37.39 |
||
|
84140
|
84140
84140-22060 Switch Assy, Headlamp Dimmer[12.1989 - 11.1993] SW20..GT |
84140-22060 |
US $77.17 |
||
| replacement | |||||
|
84140
|
84140
84140-20230 Switch Assy, Headlamp Dimmer[12.1989 - 11.1993] SW20..GT |
84140-20230 |
US $77.17 |
||
|
84140
|
84140
84140-33050 Switch Assy, Headlamp Dimmer[06.1996 - 08.1999] SW20 ｱﾘ(ﾃﾞﾝｷｼｷ *80) |
84140-33050 |
US $65.81 |
||
|
84306
|
84306
84306-12090
Cable Sub-Assy, Spiral
[12.1997 -] SW20 |
84306-12090 |
— | ||
|
84306
|
84306
84306-40010
Cable Sub-Assy, Spiral
[06.1996 - 12.1997] SW20 |
84306-40010 |
— | ||
|
84310
|
84310
84310-17190
Switch Assy, Turn Signal
[12.1989 - 11.1993] SW20..GT |
84310-17190 |
— | ||
|
84310
|
84310
84310-17200 Switch Assy, Turn Signal[12.1989 - 12.1991] SW20..GT ｱﾘ(ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)); SW20..G ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & *CRC) OR ｱﾘ(*CRC & ｽﾃｱﾘﾝｸﾞ ﾚﾝﾄﾞｳ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
84310-17200 |
US $449.90 |
||
|
84310
|
84310
84310-17310 Switch Assy, Turn Signal[12.1991 - 11.1993] SW20..GT ｱﾘ(ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)); SW20..G ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & *CRC) OR Gﾘﾐﾃﾂﾄﾞ & ｱﾘ(*CRC) |
84310-17310 |
US $492.13 |
||
|
84310
|
84310
84310-17330 Switch Assy, Turn Signal[12.1991 - 11.1993] SW20..GT ｱﾘ(*80); SW20..G Gﾘﾐﾃﾂﾄﾞ & ｱﾘ(*80) OR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & *80) OR ｱﾘ(*80 & *CRC) |
84310-17330 |
US $449.90 |
||
|
84310
|
84310
84310-17340 Switch Assy, Turn Signal[11.1993 - 06.1996] SW20..GT; SW20..G ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
84310-17340 |
US $438.26 |
||
|
84310
|
84310
84310-17350 Switch Assy, Turn Signal[11.1993 - 12.1995] SW20..GT ｱﾘ(*80); SW20..G ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & *80) |
84310-17350 |
US $441.17 |
||
|
84310
|
84310
84310-17380 Switch Assy, Turn Signal[06.1996 - 12.1997] SW20..GT ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ); SW20..G ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ & *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
84310-17380 |
US $500.86 |
||
|
84310
|
84310
84310-17381
Switch Assy, Turn Signal
[12.1997 - 08.1999] SW20..GT ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ); SW20..G ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ & *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
84310-17381 |
— | ||
|
84317
|
84317
84317-17020 Sensor, Steering Position[06.1996 -] SW20 |
84317-17020 |
US $187.82 |
||
|
84329
|
84329
84329-33050 Switch, Turn Signal[06.1996 -] SW20 |
84329-33050 |
US $14.12 |
||
|
84450
|
84450
84450-20210
Switch Assy, Ignition Or Starter
[12.1989 - 12.1991] SW20..GT; SW20..G ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
84450-20210 |
— | ||
|
84650
|
84650
84652-17110
Switch Assy, Windshield Wiper
[06.1996 -] SW20 |
84652-17110 |
— | ||
|
84650
|
84650
84652-2D120 Switch Assy, Windshield Wiper[12.1989 - 11.1993] SW20..GT |
84652-2D120 |
US $144.14 |
||
|
84650
|
84650
84652-2D780 Switch Assy, Windshield Wiper[11.1993 - 06.1996] SW20..GT |
84652-2D780 |
US $244.61 |
||
| replacement | |||||
|
84650
|
84650
84652-2D120 Switch Assy, Windshield Wiper[11.1993 - 06.1996] SW20..GT |
84652-2D120 |
US $144.14 |
||
|
827112B570
|
827112B570
82711-2B570 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B570 |
US $5.10 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.12 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
