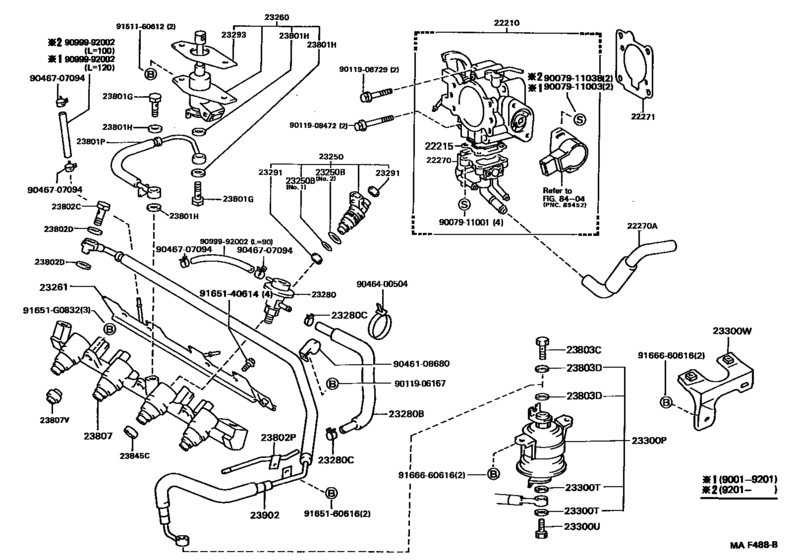

Fuel Injection System ([01.1990 - ] (9001- )3SGTE) Diagram Toyota MR 2/ MR-S
- Year
- 1990 - 1993
- Sales region
- U.S.A.
- Frame
- SW20
- body
- CP
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- MR2
- From
- 01.1990
- To
- 11.1993
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-74490 Body Assy, ThrottleTHROTTLE [01.1990 - 01.1992] 3SGTE..SW20 |
22210-74490 |
US $1,218.67 |
||
|
22210
|
22210
22210-74770 Body Assy, ThrottleTHROTTLE [01.1992 - 06.1995] 3SGTE..SW20 |
22210-74770 |
US $1,218.67 |
||
|
22215
|
22215
22215-74380 Gasket, Throttle Body Cover[01.1990 - 06.1995] 3SGTE..SW20 |
22215-74380 |
from US $3.78 |
||
|
22270
|
22270
22270-74080
Valve Assy, Idle Speed Control(For Thlottle Body)
[01.1990 - 06.1995] 3SGTE..SW20 |
22270-74080 |
— | ||
|
22270A
|
22270A
17341-88381
Hose, Air, No.1(For Idle Speed Control Valve)
[01.1990 - 06.1995] 3SGTE..SW20 |
17341-88381 |
— | ||
|
22271
|
22271
22271-88381 Gasket, Throttle Body[01.1990 - 06.1995] 3SGTE..SW20 |
22271-88381 |
US $8.32 |
||
|
23250
|
23250
23209-79015
Injector Assy, Fuel
[01.1990 - 06.1995] 3SGTE..SW20 |
23209-79015 |
— | ||
|
23250B
|
23250B
90301-14006 Ring, O(For Fuel Injector)[01.1990 - 06.1995] 3SGTE..SW20 NO.1 |
90301-14006 |
from US $2.91 |
||
|
23250B
|
23250B
90301-17007 Ring, O(For Fuel Injector)[01.1990 - 06.1995] 3SGTE..SW20 NO.2 |
90301-17007 |
from US $3.06 |
||
|
23260
|
23260
23260-79175
Injector Assy, Cold Start Fuel
[01.1990 - 06.1995] 3SGTE..SW20 |
23260-79175 |
— | ||
|
23261
|
23261
23261-88380 Cover, Injector[01.1990 - 06.1995] 3SGTE..SW20 |
23261-88380 |
US $23.88 |
||
|
23280
|
23280
23280-74070
Regulator Assy, Fuel Pressure
[01.1990 - 06.1995] 3SGTE..SW20 |
23280-74070 |
— | ||
|
23280B
|
23280B
23271-88380
Hose, Fuel Pressure Regulator Return
[01.1990 - 06.1995] 3SGTE..SW20 |
23271-88380 |
— | ||
|
23280C
|
23280C
90467-11065 Clip(For Fuel Hose No.2)[01.1990 - 06.1995] 3SGTE..SW20 |
90467-11065 |
US $2.56 |
||
|
23291
|
23291
23291-75010 Insulator, Injector Vibration[01.1990 - 06.1995] 3SGTE..SW20 |
23291-75010 |
from US $2.56 |
||
|
23293
|
23293
23293-88381
Gasket, Cold Start Injector
[01.1990 - 06.1995] 3SGTE..SW20 |
23293-88381 |
— | ||
|
23300P
|
23300P
23300-79275 Filter, Fuel(For Efi)FUEL(FOR EFI) [01.1990 - 06.1995] 3SGTE,5SFE..SW2# |
23300-79275 |
US $103.38 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[01.1990 - 08.1991] 3SGTE,5SFE..SW2# |
90430-12005 |
from US $0.70 |
||
|
23300T
|
23300T
90430-12026 Gasket[08.1991 - 06.1995] 3SGTE,5SFE..SW2# |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[01.1990 - 06.1995] 3SGTE,5SFE..SW2# |
90401-12097 |
from US $3.08 |
||
|
23300W
|
23300W
23264-74040
Bracket, Fuel Filter
[01.1990 - 01.1992] 3SGTE,5SFE..SW2# |
23264-74040 |
— | ||
|
23300W
|
23300W
23264-74050 Bracket, Fuel Filter[01.1992 - 06.1995] 3SGTE,5SFE..SW2# |
23264-74050 |
US $18.20 |
||
|
23801G
|
23801G
90401-08003 Bolt, Union[01.1990 - 06.1995] 3SGTE..SW20 |
90401-08003 |
US $2.24 |
||
|
23801H
|
23801H
90430-08005 Gasket[01.1990 - 06.1991] 3SGTE..SW20 |
90430-08005 |
US $2.24 |
||
|
23801H
|
23801H
90430-08012 Gasket[06.1991 - 06.1995] 3SGTE..SW20 |
90430-08012 |
US $1.92 |
||
|
23801P
|
23801P
23801-88381
Pipe Sub-Assy, Fuel, No.1
[01.1990 - 06.1995] 3SGTE..SW20 |
23801-88381 |
— | ||
|
23802C
|
23802C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[01.1990 - 06.1995] 3SGTE..SW20 |
90401-12097 |
from US $3.08 |
||
|
23802D
|
23802D
90430-12005 Gasket(For Water Hole)[01.1990 - 06.1991] 3SGTE..SW20 |
90430-12005 |
from US $0.70 |
||
|
23802D
|
23802D
90430-12026 Gasket[06.1991 - 06.1995] 3SGTE..SW20 |
90430-12026 |
from US $0.88 |
||
|
23802P
|
23802P
23903-88380 Tube Sub-Assy, Fuel, No.3[01.1990 - 06.1995] 3SGTE..SW20 |
23903-88380 |
US $10.63 |
||
|
23803C
|
23803C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[01.1990 - 06.1995] 3SGTE,5SFE..SW2# |
90401-12097 |
from US $3.08 |
||
|
23803D
|
23803D
90430-12005 Gasket(For Water Hole)[01.1990 - 08.1991] 3SGTE,5SFE..SW2# |
90430-12005 |
from US $0.70 |
||
|
23803D
|
23803D
90430-12026 Gasket[08.1991 - 06.1995] 3SGTE,5SFE..SW2# |
90430-12026 |
from US $0.88 |
||
|
23807
|
23807
23814-88382 Pipe Sub-Assy, Fuel Delivery[01.1990 - 06.1995] 3SGTE..SW20 |
23814-88382 |
US $177.63 |
||
|
23807V
|
23807V
90561-08032 Spacer, No.1(For Delivery Pipe)[01.1990 - 06.1995] 3SGTE..SW20 |
90561-08032 |
US $2.08 |
||
|
23845C
|
23845C
23845-88380 Insulator, Fuel Pipe[01.1990 - 06.1995] 3SGTE..SW20 |
23845-88380 |
from US $2.72 |
||
|
23902
|
23902
23902-88380
Tube Sub-Assy, Fuel
[01.1990 - 06.1995] 3SGTE..SW20 |
23902-88380 |
— | ||
|
91651G0832
|
91651G0832
91651-G0832 New Genuine Part |
91651-G0832 |
US $2.33 |
||
|
9007911001
|
9007911001
90079-11001 SCREW |
90079-11001 |
US $1.92 |
||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9007911038
|
9007911038
90079-11038 New Genuine Part |
90079-11038 |
US $1.46 |
||
|
9011906167
|
9011906167
90119-06167 New Genuine Part |
90119-06167 |
US $1.75 |
||
|
9011908472
|
9011908472
90119-08472
Bolt(For Clutch Master Cylinder Setting)
|
90119-08472 |
— | ||
| replacement | |||||
|
9011908472
|
9011908472
90119-08108 Bolt(For Clutch Master Cylinder Setting) |
90119-08108 |
US $2.56 |
||
|
9011908729
|
9011908729
90119-08729
Bolt (for Transaxle Housing & Transaxle Case Setting)
|
90119-08729 |
— | ||
| replacement | |||||
|
9011908729
|
9011908729
90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting) |
90105-08233 |
US $0.87 |
||
|
9046108680
|
9046108680
90461-08680 New Genuine Part |
90461-08680 |
US $3.06 |
||
|
9046400504
|
9046400504
90464-00504 New Genuine Part |
90464-00504 |
US $3.14 |
||
|
9046707094
|
9046707094
90467-07094 Clip, Hose Fuel(For Injection Pump) |
90467-07094 |
US $1.92 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9166660616
|
9166660616
91666-60616 New Genuine Part |
91666-60616 |
US $1.92 |
||
