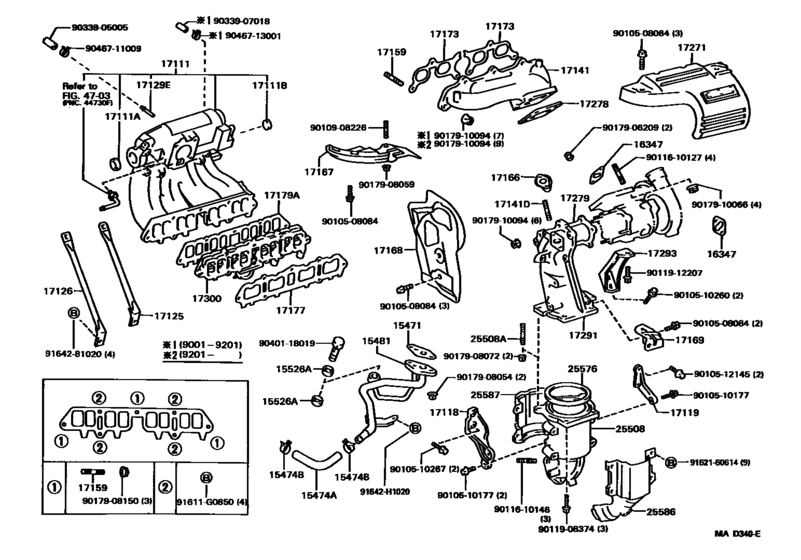

Manifold ([01.1990 - ] (9001- )3SGTE) Diagram Toyota MR 2/ MR-S
- Year
- 1990 - 1993
- Sales region
- U.S.A.
- Frame
- SW20
- body
- CP
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- MR2
- From
- 01.1990
- To
- 11.1993
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15471
|
15471
15471-88380
Gasket, Turbo Oil Inlet
[01.1990 - 06.1995] 3SGTE..SW20 |
15471-88380 |
— | ||
| replacement | |||||
|
15471
|
15471
15471-88580 Gasket, Turbo Oil Inlet[01.1990 - 06.1995] 3SGTE..SW20 |
15471-88580 |
US $13.44 |
||
|
15474A
|
15474A
15491-88380 Hose, Turbo Oil Outlet[01.1990 - 06.1995] 3SGTE..SW20 |
15491-88380 |
US $27.36 |
||
|
15474B
|
15474B
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[01.1990 - 06.1995] 3SGTE..SW20 |
90467-28003 |
— | ||
| replacement | |||||
|
15474B
|
15474B
90467-28007 Clip Or Clamp(For Ventilation Hose)[01.1990 - 06.1995] 3SGTE..SW20 |
90467-28007 |
from US $3.20 |
||
|
15481
|
15481
15481-88381
Pipe, Turbo Oil, No.1
[01.1990 - 12.1991] 3SGTE..SW20 |
15481-88381 |
— | ||
| replacement | |||||
|
15481
|
15481
15481-88383
Pipe, Turbo Oil, No.1
[01.1990 - 12.1991] 3SGTE..SW20 |
15481-88383 |
— | ||
|
15481
|
15481
15481-88383
Pipe, Turbo Oil, No.1
[12.1991 - 06.1995] 3SGTE..SW20 |
15481-88383 |
— | ||
|
15526A
|
15526A
15526-88381 Gasket, Joint(For Turbo Oil Pipe)[01.1990 - 06.1995] 3SGTE..SW20 |
15526-88381 |
US $6.64 |
||
|
16347
|
16347
16347-88380 Gasket, Water By-Pass[01.1990 - 06.1995] 3SGTE..SW20 |
16347-88380 |
US $7.20 |
||
|
17111
|
17111
17101-88385 Manifold, IntakeINTAKE [01.1990 - 06.1995] 3SGTE..SW20 |
17101-88385 |
US $907.09 |
||
|
17111A
|
17111A
96411-43000 Plug, Tight, No.1[01.1990 - 06.1995] 3SGTE..SW20 |
96411-43000 |
from US $3.84 |
||
|
17111B
|
17111B
96411-41400 Plug, Tight, No.5(For Cylinder Block)[01.1990 - 06.1995] 3SGTE..SW20 |
96411-41400 |
US $1.92 |
||
|
17118
|
17118
17118-88382 Stay, Manifold[01.1990 - 03.1994] 3SGTE..SW20 |
17118-88382 |
US $71.34 |
||
| replacement | |||||
|
17118
|
17118
17118-88480 Stay, Manifold[01.1990 - 03.1994] 3SGTE..SW20 |
17118-88480 |
US $71.49 |
||
|
17119
|
17119
17139-88381
Stay, Manifold, No.2
[01.1990 - 06.1995] 3SGTE..SW20 |
17139-88381 |
— | ||
|
17125
|
17125
17125-88381 Stay, Surge Tank, No.1[01.1990 - 06.1995] 3SGTE..SW20 |
17125-88381 |
US $71.64 |
||
|
17126
|
17126
17126-88383 Stay, Surge Tank, No.2[01.1990 - 06.1995] 3SGTE..SW20 |
17126-88383 |
US $67.70 |
||
|
17129E
|
17129E
90405-06005 Union, No.3[01.1990 - 11.1990] 3SGTE..SW20 |
90405-06005 |
US $2.18 |
||
|
17129E
|
17129E
90405-06010 Union, No.3[11.1990 - 06.1995] 3SGTE..SW20 |
90405-06010 |
US $2.33 |
||
|
17141
|
17141
17141-88381 Manifold, Exhaust[01.1990 - 01.1992] 3SGTE..SW20 |
17141-88381 |
US $439.71 |
||
|
17141
|
17141
17141-88382
Manifold, Exhaust
[01.1992 - 06.1995] 3SGTE..SW20 |
17141-88382 |
— | ||
|
17141D
|
17141D
90116-08326 Bolt, Stud(For Oxygen Sensor)[01.1990 - 06.1995] 3SGTE..SW20 |
90116-08326 |
US $6.12 |
||
|
17159
|
17159
90116-08186 Bolt, Stud(For Manifold To Cylinder Head)[01.1990 - 06.1995] 3SGTE..SW20 INTAKE MANIFOLD |
90116-08186 |
US $3.32 |
||
|
17159
|
17159
90116-10113 Bolt, Stud(For Manifold To Cylinder Head)[01.1990 - 01.1992] 3SGTE..SW20 EXHAUST MANIFOLD |
90116-10113 |
from US $2.92 |
||
|
17166
|
17166
17166-88381
Insulator, Exhaust Manifold Heat,no.4
[01.1992 - 06.1995] 3SGTE..SW20 |
17166-88381 |
— | ||
|
17167
|
17167
17167-88381
Insulator, Exhaust Manifold Heat, No.1
[01.1990 - 06.1995] 3SGTE..SW20 |
17167-88381 |
— | ||
|
17168
|
17168
17168-88382
Insulator, Exhaust Manifold Heat, No.2
[01.1990 - 06.1995] 3SGTE..SW20 |
17168-88382 |
— | ||
|
17169
|
17169
17169-88381
Insulator, Exhaust Manifold Heat, No.3
[01.1990 - 06.1995] 3SGTE..SW20 |
17169-88381 |
— | ||
|
17173
|
17173
17173-88381 Gasket, Exhaust Manifold To Head[01.1990 - 01.1992] 3SGTE..SW20 |
17173-88381 |
US $27.36 |
||
|
17173
|
17173
17173-88382 Gasket, Exhaust Manifold To Head[01.1992 - 06.1995] 3SGTE..SW20 |
17173-88382 |
from US $17.90 |
||
|
17177
|
17177
17177-88381 Gasket, Intake Manifold To Head, No.1[01.1990 - 06.1995] 3SGTE..SW20 |
17177-88381 |
US $13.12 |
||
|
17179A
|
17179A
17171-88381 Gasket, Intake Manifold, No.2[01.1990 - 06.1995] 3SGTE..SW20 |
17171-88381 |
US $13.12 |
||
|
17271
|
17271
17271-88382 Insulator, Turbo, No.1[01.1990 - 06.1995] 3SGTE..SW20 |
17271-88382 |
US $407.68 |
||
|
17278
|
17278
17278-88381 Gasket, Turbo To Exhaust Manifold[01.1990 - 06.1995] 3SGTE..SW20 |
17278-88381 |
US $47.12 |
||
|
17279
|
17279
17279-88381
Gasket, Turbine Outlet Elbow
[01.1990 - 06.1995] 3SGTE..SW20 |
17279-88381 |
— | ||
|
17291
|
17291
17291-88381
Elbow, Turbine Outlet
[01.1990 - 06.1995] 3SGTE..SW20 |
17291-88381 |
— | ||
|
17293
|
17293
17293-88381
Stay, Turbocharger
[01.1990 - 06.1995] 3SGTE..SW20 |
17293-88381 |
— | ||
|
17300
|
17300
17300-88381
Valve Assy, Intake Air Control
[01.1990 - 06.1995] 3SGTE..SW20 |
17300-88381 |
— | ||
|
25508
|
25508
25508-74110
Converter Sub-Assy, Manifold
[01.1990 - 06.1995] 3SGTE..SW20 |
25508-74110 |
— | ||
|
25508A
|
25508A
90116-08171 Bolt, Stud(For Manifold Converter)[01.1990 - 06.1995] 3SGTE,5SFE..SW2# |
90116-08171 |
US $4.32 |
||
|
25576
|
25576
25576-74020
Gasket, Manifold Converter
[01.1990 - 10.1991] 3SGTE,5SFE..SW2# |
25576-74020 |
— | ||
| replacement | |||||
|
25576
|
25576
25576-74030 Gasket, Manifold Converter[01.1990 - 10.1991] 3SGTE,5SFE..SW2# |
25576-74030 |
from US $12.68 |
||
|
25576
|
25576
25576-74030 Gasket, Manifold Converter[10.1991 - 06.1995] 3SGTE,5SFE..SW2# |
25576-74030 |
from US $12.68 |
||
|
25586
|
25586
25586-74040
Insulator, Manifold Converter, No.1
[01.1990 - 06.1995] 3SGTE..SW20 |
25586-74040 |
— | ||
|
25587
|
25587
25587-74040
Insulator, Manifold Converter, No.2
[01.1990 - 06.1995] 3SGTE..SW20 |
25587-74040 |
— | ||
|
91611G0850
|
91611G0850
91611-G0850
New Genuine Part
|
91611-G0850 |
— | ||
|
91642H1020
|
91642H1020
91642-H1020
New Genuine Part
|
91642-H1020 |
— | ||
|
9010508084
|
9010508084
90105-08084 Bolt |
90105-08084 |
US $2.56 |
||
|
9010510177
|
9010510177
90105-10177
New Genuine Part
|
90105-10177 |
— | ||
|
9010510260
|
9010510260
90105-10260 New Genuine Part |
90105-10260 |
US $2.62 |
||
|
9010510267
|
9010510267
90105-10267
New Genuine Part
|
90105-10267 |
— | ||
|
9010512145
|
9010512145
90105-12145
New Genuine Part
|
90105-12145 |
— | ||
|
9010908226
|
9010908226
90109-08226 New Genuine Part |
90109-08226 |
US $2.48 |
||
|
9011610127
|
9011610127
90116-10127
Bolt, Stud(For Turbocharger)
|
90116-10127 |
— | ||
| replacement | |||||
|
9011610127
|
9011610127
90116-10125 Bolt, Stud(For Turbine Housing) |
90116-10125 |
US $3.04 |
||
|
9011610146
|
9011610146
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10146 |
from US $1.91 |
||
|
9011908374
|
9011908374
90119-08374 Bolt |
90119-08374 |
US $2.24 |
||
|
9011912207
|
9011912207
90119-12207
Plate, Exhaust Manifold(for Egr Inlet)
|
90119-12207 |
— | ||
|
9017906209
|
9017906209
90179-06209
New Genuine Part
|
90179-06209 |
— | ||
| replacement | |||||
|
9017906209
|
9017906209
94150-80630 New Genuine Part |
94150-80630 |
US $0.96 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.60 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9017908072
|
9017908072
90179-08072 Nut(For Front Lower Arm Bracket Rh) |
90179-08072 |
from US $1.28 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.07 |
||
|
9017910066
|
9017910066
90179-10066 NUT |
90179-10066 |
US $5.42 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
US $6.56 |
||
|
9033905005
|
9033905005
90339-05005 New Genuine Part |
90339-05005 |
US $2.72 |
||
|
9033907018
|
9033907018
90339-07018 New Genuine Part |
90339-07018 |
US $4.02 |
||
|
9040118019
|
9040118019
90401-18019
New Genuine Part
|
90401-18019 |
— | ||
|
9046711009
|
9046711009
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-11009 |
— | ||
| replacement | |||||
|
9046711009
|
9046711009
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9164281020
|
9164281020
91642-81020
New Genuine Part
|
91642-81020 |
— | ||
| replacement | |||||
|
9164281020
|
9164281020
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $2.72 |
||
