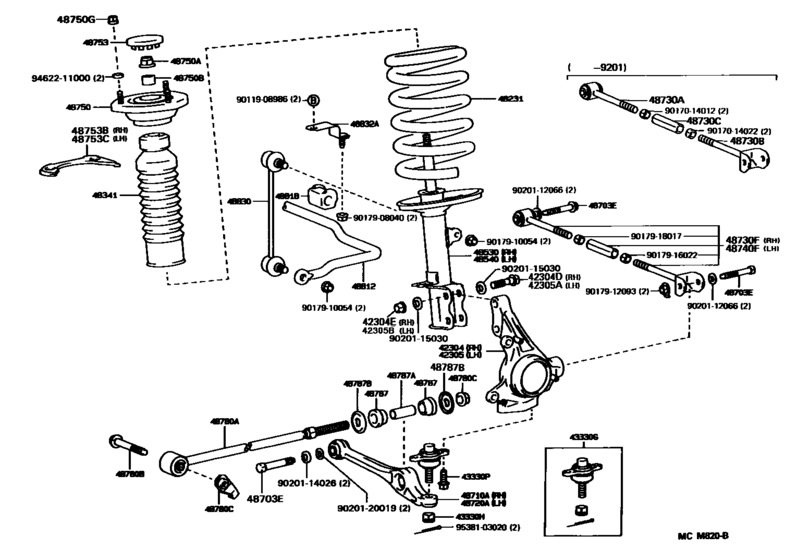

Rear Spring & Shock Absorber ([01.1990 - ] (9001- )) Diagram Toyota MR 2/ MR-S
- Year
- 1990 - 1993
- Sales region
- Europe
- Frame
- SW20
- body
- CP
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- MR2
- From
- 01.1990
- To
- 11.1993
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-17010
Carrier Sub-Assy, Rear Axle, Rh
[01.1990 - 06.1995] SW2# |
42304-17010 |
— | ||
|
42304
|
42304
42304-17020
Carrier Sub-Assy, Rear Axle, Rh
[01.1990 - 06.1995] SW2# W(*66) |
42304-17020 |
— | ||
|
42304D
|
42304D
90105-15001 Bolt (For Rear Axle Carrier)[01.1990 - 01.1992] SW2# |
90105-15001 |
from US $4.04 |
||
|
42304D
|
42304D
90901-05001 Bolt (For Rear Axle Carrier Rh)[01.1992 - 06.1995] SW2# |
90901-05001 |
US $6.24 |
||
|
42304E
|
42304E
90179-15001 Nut (For Rear Axle Carrier)[01.1990 - 01.1992] SW2# |
90179-15001 |
US $5.60 |
||
|
42304E
|
42304E
90179-15005
Nut (For Rear Axle Carrier Rh)
[01.1992 - 06.1995] SW2# |
90179-15005 |
— | ||
| replacement | |||||
|
42304E
|
42304E
90179-15006 Nut[01.1992 - 06.1995] SW2# |
90179-15006 |
US $2.24 |
||
|
42305
|
42305
42305-17010
Carrier Sub-Assy, Rear Axle, Lh
[01.1990 - 06.1995] SW2# |
42305-17010 |
— | ||
|
42305
|
42305
42305-17020
Carrier Sub-Assy, Rear Axle, Lh
[01.1990 - 06.1995] SW2# W(*66) |
42305-17020 |
— | ||
|
42305A
|
42305A
90105-15001 Bolt (For Rear Axle Carrier)[01.1990 - 01.1992] SW2# |
90105-15001 |
from US $4.04 |
||
|
42305A
|
42305A
90901-05001 Bolt (For Rear Axle Carrier Rh)[01.1992 - 06.1995] SW2# |
90901-05001 |
US $6.24 |
||
|
42305B
|
42305B
90179-15001 Nut (For Rear Axle Carrier)[01.1990 - 01.1992] SW2# |
90179-15001 |
US $5.60 |
||
|
42305B
|
42305B
90179-15005
Nut (For Rear Axle Carrier Rh)
[01.1992 - 06.1995] SW2# |
90179-15005 |
— | ||
| replacement | |||||
|
42305B
|
42305B
90179-15006 Nut[01.1992 - 06.1995] SW2# |
90179-15006 |
US $2.24 |
||
|
43330G
|
43330G
43330-39135
Joint Assy, Lower Ball, Front
[01.1990 - 10.1993] SW2# |
43330-39135 |
— | ||
| replacement | |||||
|
43330G
|
43330G
43330-39275 Joint Assy, Lower Ball, Rear[01.1990 - 10.1993] SW2# |
43330-39275 |
US $54.11 |
||
|
43330G
|
43330G
43330-39275 Joint Assy, Lower Ball, Rear[10.1993 - 06.1995] SW2# |
43330-39275 |
US $54.11 |
||
|
43330H
|
43330H
90171-14002 Nut (For Rear Steering Knuckle Arm)[01.1990 - 06.1995] SW2# |
90171-14002 |
US $3.84 |
||
|
43330P
|
43330P
90105-12059 Bolt (For Front Lower Ball Joint)[01.1990 - 06.1995] SW2# |
90105-12059 |
US $4.19 |
||
|
48231
|
48231
48231-17680 Spring, Coil, RearCOIL, REAR [01.1990 - 03.1990] SW20 |
48231-17680 |
US $135.41 |
||
|
48231
|
48231
48231-17710 Spring, Coil, RearCOIL, REAR [03.1990 - 01.1992] SW20 |
48231-17710 |
US $131.04 |
||
|
48231
|
48231
48231-1R080 Spring, Coil, RearCOIL, REAR [01.1992 - 11.1993] SW20 |
48231-1R080 |
US $104.83 |
||
| replacement | |||||
|
48231
|
48231
48231-1R020 Spring, Coil, Rear[01.1992 - 11.1993] SW20 |
48231-1R020 |
US $99.01 |
||
|
48341
|
48341
48341-17010
Bumper, Rear Spring
[01.1990 - 01.1992] SW2# |
48341-17010 |
— | ||
| replacement | |||||
|
48341
|
48341
48341-17011
Bumper, Rear Spring
[01.1990 - 01.1992] SW2# |
48341-17011 |
— | ||
|
48341
|
48341
48341-17020 Bumper, Rear Spring[01.1992 - 06.1995] SW2# |
48341-17020 |
US $32.98 |
||
|
48530
|
48530
48530-17140 Absorber Assy, Shock, Rear Rh[01.1990 - 01.1992] SW20 |
48530-17140 |
US $343.62 |
||
| replacement | |||||
|
48530
|
48530
48530-17141
Absorber Assy, Shock, Rear Rh
[01.1990 - 01.1992] SW20 |
48530-17141 |
— | ||
|
48530
|
48530
48530-17160 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [01.1992 - 11.1993] SW2# |
48530-17160 |
US $343.62 |
||
| replacement | |||||
|
48530
|
48530
48530-19536 Absorber Assy, Shock, Rear Rh[01.1992 - 11.1993] SW2# |
48530-19536 |
US $346.53 |
||
|
48540
|
48540
48540-17140 Absorber Assy, Shock, Rear Lh[01.1990 - 01.1992] SW20 |
48540-17140 |
US $343.62 |
||
| replacement | |||||
|
48540
|
48540
48540-17141
Absorber Assy, Shock, Rear Lh
[01.1990 - 01.1992] SW20 |
48540-17141 |
— | ||
|
48540
|
48540
48540-17160 Absorber Assy, Shock, Rear LhSHOCK, REAR LH [01.1992 - 11.1993] SW2# |
48540-17160 |
US $343.62 |
||
| replacement | |||||
|
48540
|
48540
48540-19046 Absorber Assy, Shock, Rear Lh[01.1992 - 11.1993] SW2# |
48540-19046 |
US $346.53 |
||
|
48703E
|
48703E
90101-12169
Bolt(For Rear Suspension Arm)
[01.1990 - 06.1995] SW2# *12-1.25PX81-25 |
90101-12169 |
— | ||
|
48703E
|
48703E
90101-14043
Bolt(For Rear Suspension Arm)
[01.1990 - 06.1995] SW2# *14-1.5PX90-27 |
90101-14043 |
— | ||
|
48710A
|
48710A
48703-17020 Arm Assy, Rear Suspension, No.1 Rh[01.1990 - 01.1992] SW2# |
48703-17020 |
US $144.14 |
||
|
48710A
|
48710A
48703-17030
Arm Assy, Rear Suspension, No.1 Rh
[01.1992 - 06.1995] SW2# |
48703-17030 |
— | ||
|
48720A
|
48720A
48703-17020 Arm Assy, Rear Suspension, No.1 Rh[01.1990 - 01.1992] SW2# |
48703-17020 |
US $144.14 |
||
|
48720A
|
48720A
48707-17020
Arm Assy, Rear Suspension, No.1 Lh
[01.1992 - 06.1995] SW2# |
48707-17020 |
— | ||
|
48730A
|
48730A
48709-17030 Arm Assy, Rear Suspension, No.2[01.1990 - 01.1992] SW2# |
48709-17030 |
US $195.84 |
||
|
48730B
|
48730B
45046-17040
End Sub-Assy, Tie Rod(For Rear Suspension Arm)
[01.1990 - 01.1992] SW2# |
45046-17040 |
— | ||
|
48730C
|
48730C
45465-17010
Tube, Tie Rod Adjusting(For Rear Suspension Arm)
[01.1990 - 01.1992] SW2# |
45465-17010 |
— | ||
|
48730F
|
48730F
48730-17040 Arm Assy, Rear Suspension, No.2 Rh[01.1992 - 06.1995] SW2# |
48730-17040 |
US $100.64 |
||
|
48740F
|
48740F
48730-17040 Arm Assy, Rear Suspension, No.2 Rh[01.1992 - 06.1995] SW2# |
48730-17040 |
US $100.64 |
||
|
48750
|
48750
48750-17020
Support Assy, Rear Suspension
[01.1990 - 01.1992] SW2# |
48750-17020 |
— | ||
|
48750
|
48750
48750-17030
Support Assy, Rear Suspension
[01.1992 - 11.1993] SW2# |
48750-17030 |
— | ||
| replacement | |||||
|
48750
|
48750
48750-17031
Support Assy, Rear Suspension
[01.1992 - 11.1993] SW2# |
48750-17031 |
— | ||
|
48750A
|
48750A
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[01.1990 - 06.1995] SW2# |
90179-14015 |
from US $1.09 |
||
|
48750B
|
48750B
90387-15012
Collar(For Rear Support To Rear Shock Absorber)
[01.1990 - 06.1995] SW2# |
90387-15012 |
— | ||
| replacement | |||||
|
48750B
|
48750B
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[01.1990 - 06.1995] SW2# |
90387-15027 |
from US $3.65 |
||
|
48750G
|
48750G
90179-10103 Nut (For Front Lower Ball Joint Setting)[01.1990 - 06.1995] SW2# |
90179-10103 |
US $1.76 |
||
|
48753
|
48753
48753-12010 Cover, Rear Suspension Support[01.1990 - 06.1995] SW2# |
48753-12010 |
US $11.52 |
||
|
48780A
|
48780A
48780-17030
Rod Assy, Strut, Rear
[01.1990 - 01.1992] SW2# |
48780-17030 |
— | ||
|
48780A
|
48780A
48780-17040
Rod Assy, Strut, Rear
[01.1992 - 06.1995] SW2# |
48780-17040 |
— | ||
|
48780B
|
48780B
90119-12146 Bolt(For Rear Suspension Arm)[01.1990 - 06.1995] SW2# |
90119-12146 |
from US $6.40 |
||
|
48780C
|
48780C
90179-12094 Nut(For Strut Rod)[01.1990 - 06.1995] SW2# BODY SIDE |
90179-12094 |
from US $4.16 |
||
|
48780C
|
48780C
90179-18014 Nut(For Strut Bar)[01.1990 - 06.1995] SW2# CARRIER SIDE |
90179-18014 |
US $5.12 |
||
|
48787
|
48787
48787-17020 Cushion, Strut Bar[01.1990 - 06.1995] SW2# FR |
48787-17020 |
US $13.92 |
||
|
48787
|
48787
48787-17030 Cushion, Strut Bar[01.1990 - 06.1995] SW2# RR |
48787-17030 |
US $11.36 |
||
|
48787A
|
48787A
90387-18018
Coller(For Strut Bar Cushion)
[01.1990 - 06.1995] SW2# |
90387-18018 |
— | ||
|
48787B
|
48787B
90948-02138 Retainer, Cushion(For Strut Bar Cushion)[01.1990 - 06.1995] SW2# |
90948-02138 |
US $7.04 |
||
|
48812
|
48812
48812-17070 Bar, Stabilizer, Rear[03.1990 - 11.1990] SW2# |
48812-17070 |
US $132.50 |
||
|
48812
|
48812
48812-17090 Bar, Stabilizer, Rear[01.1990 - 03.1990] SW20 |
48812-17090 |
US $136.86 |
||
|
48812
|
48812
48812-17110 Bar, Stabilizer, Rear[01.1992 - 06.1995] SW2# |
48812-17110 |
US $145.60 |
||
|
48818
|
48818
48818-17080
Bush, Stabilizer, Rear
[03.1990 - 11.1990] SW2# |
48818-17080 |
— | ||
| replacement | |||||
|
48818
|
48818
48818-17082
Bush, Stabilizer, Rear
[03.1990 - 11.1990] SW2# |
48818-17082 |
— | ||
|
48818
|
48818
48818-17090 Bush, Stabilizer, Rear[01.1990 - 03.1990] SW20 |
48818-17090 |
US $7.86 |
||
| replacement | |||||
|
48818
|
48818
48818-17092
Bush, Stabilizer, Rear
[01.1990 - 03.1990] SW20 |
48818-17092 |
— | ||
|
48818
|
48818
48818-17091 Bush, Stabilizer, Rear[04.1991 - 01.1992] SW20 |
48818-17091 |
US $7.72 |
||
| replacement | |||||
|
48818
|
48818
48818-17092
Bush, Stabilizer, Rear
[04.1991 - 01.1992] SW20 |
48818-17092 |
— | ||
|
48818
|
48818
48818-17110
Bush, Stabilizer, Rear
[01.1992 - 09.1993] SW2# |
48818-17110 |
— | ||
| replacement | |||||
|
48818
|
48818
48818-17111
Bush, Stabilizer, Rear
[01.1992 - 09.1993] SW2# |
48818-17111 |
— | ||
|
48818
|
48818
48818-17111
Bush, Stabilizer, Rear
[09.1993 - 06.1995] SW2# |
48818-17111 |
— | ||
|
48830
|
48830
48830-17030
Link Assy, Rear Stabilizer
[01.1990 - 01.1992] SW2# |
48830-17030 |
— | ||
| replacement | |||||
|
48830
|
48830
48830-17050 Link Assy, Rear Stabilizer[01.1990 - 01.1992] SW2# |
48830-17050 |
from US $70.98 |
||
|
48830
|
48830
48830-17050 Link Assy, Rear Stabilizer[01.1992 - 11.1993] SW20 |
48830-17050 |
from US $70.98 |
||
|
48832A
|
48832A
48832-17030 Bracket, Rear Stabilizer Bar, No.1[01.1990 - 06.1995] SW2# |
48832-17030 |
US $12.64 |
||
|
9011908986
|
9011908986
90119-08986 New Genuine Part |
90119-08986 |
US $2.24 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017014022
|
9017014022
90170-14022
New Genuine Part
|
90170-14022 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017910054
|
9017910054
90179-10054 Nut, No.1 (For Center Support Bearing) |
90179-10054 |
from US $0.90 |
||
|
9017912093
|
9017912093
90179-12093 New Genuine Part |
90179-12093 |
US $3.67 |
||
|
9017916022
|
9017916022
90179-16022 Nut, No.1(For Rear Suspension Arm No.2) |
90179-16022 |
US $3.20 |
||
|
9017918017
|
9017918017
90179-18017 Nut, No.1(For Rear Suspension Arm No.2 Rh) |
90179-18017 |
US $3.32 |
||
|
9020112066
|
9020112066
90201-12066 New Genuine Part |
90201-12066 |
US $4.16 |
||
|
9020114026
|
9020114026
90201-14026 WASHER PLATE |
90201-14026 |
US $4 |
||
|
9020115030
|
9020115030
90201-15030 New Genuine Part |
90201-15030 |
US $5.76 |
||
|
9020120019
|
9020120019
90201-20019 New Genuine Part |
90201-20019 |
US $2.56 |
||
|
9462211000
|
9462211000
94622-11000 WASHER |
94622-11000 |
from US $1.50 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
