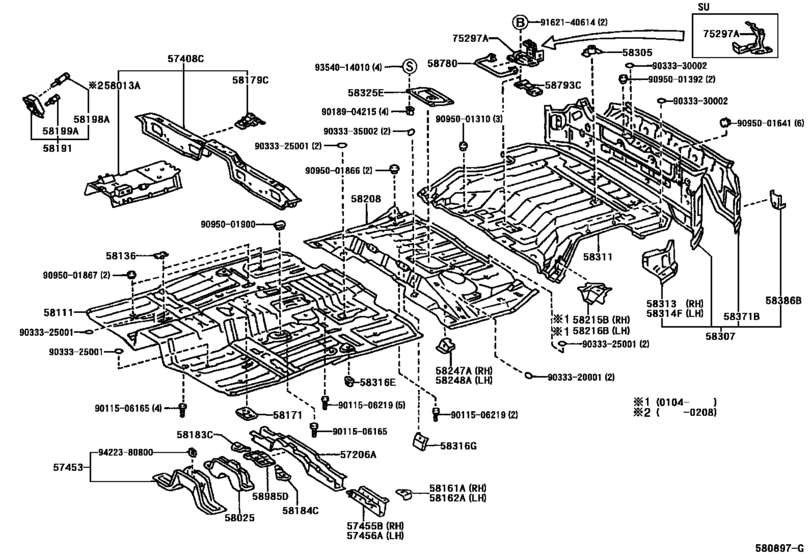

Floor Pan & Lower Back Panel ([07.1998 - ] (9807- )) Diagram Toyota NADIA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- ACN10
- grade
- S
- body
- STD
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 07.2003
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57206A
|
57206A
57459-44902 Member Sub-Assy, Front Floor Cross, No.2[07.1998 -] ACN1#,SXN1# |
57459-44902 |
US $88.82 |
||
|
57408C
|
57408C
57408-44150 Member Sub-Assy, Front Floor Cross[04.2001 - 08.2002] ACN10 |
57408-44150 |
US $216.94 |
||
| replacement | |||||
|
57408C
|
57408C
57408-44180 Member Sub-Assy, Front Floor Cross[04.2001 - 08.2002] ACN10 |
57408-44180 |
US $216.94 |
||
|
57408C
|
57408C
57408-44190 Member Sub-Assy, Front Floor Cross[08.2002 -] ACN10 |
57408-44190 |
US $218.40 |
||
| replacement | |||||
|
57408C
|
57408C
57408-44220 Member Sub-Assy, Front Floor Cross[08.2002 -] ACN10 |
57408-44220 |
US $218.40 |
||
|
57453
|
57453
57453-44010 Member, Front Floor Cross, No.3[07.1998 -] ACN1#,SXN1# |
57453-44010 |
US $48.92 |
||
|
57455B
|
57455B
57455-44010 Gusset, Front Floor Crossmember, Rh[07.1998 -] ACN1#,SXN1# |
57455-44010 |
US $53.14 |
||
|
57456A
|
57456A
57456-44010 Gusset, Front Floor Crossmember, Lh[07.1998 -] ACN1#,SXN1# |
57456-44010 |
US $53.14 |
||
|
58013A
|
58013A
58013-44050 Panel Sub-Assy, Front Floor, Rear Upper[07.1998 - 08.2002] ACN10,SXN10;SXN15..STD..L;SXN15..NOG,S,X |
58013-44050 |
US $90.27 |
||
|
58111
|
58111
58111-44060 Pan, Front Floor[07.1998 - 08.2002] ACN10,SXN1# |
58111-44060 |
US $612.98 |
||
|
58111
|
58111
58111-44170 Pan, Front Floor[08.2002 -] ACN1# |
58111-44170 |
US $612.98 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[07.1998 -] ACN1#,SXN1# |
58136-33010 |
US $3.06 |
||
|
58161A
|
58161A
58161-44010 Reinforcement, Belt Anchor To Floor Pan, Rh[07.1998 -] ACN1#,SXN1# |
58161-44010 |
US $18.20 |
||
|
58162A
|
58162A
58162-44010 Reinforcement, Belt Anchor To Floor Pan, Lh[07.1998 -] ACN1#,SXN1# |
58162-44010 |
US $18.20 |
||
|
58171
|
58171
58171-44030 Reinforcement, Parking Brake Base[07.1998 -] ACN1#,SXN1# |
58171-44030 |
US $11.07 |
||
|
58183C
|
58183C
58183-44010 Bracket, Front Seat Mounting, Inside Rh[07.1998 -] ACN1#,SXN1# |
58183-44010 |
US $13.69 |
||
|
58184C
|
58184C
58184-44010 Bracket, Front Seat Mounting, Inner Lh[07.1998 -] ACN1#,SXN1# |
58184-44010 |
US $13.69 |
||
|
58191
|
58191
58191-44010 Footrest, Front Floor[07.1998 -] ACN1#,SXN1# |
58191-44010 |
US $26.64 |
||
|
58198A
|
58198A
58198-44011 Clip, Footrest, No.1[07.1998 -] ACN1#,SXN1# |
58198-44011 |
US $4.95 |
||
|
58199A
|
58199A
58198-44021 Clip, Footrest, No.2[07.1998 -] ACN1#,SXN1# |
58198-44021 |
US $4.95 |
||
|
58208
|
58208
58211-44050 Pan, Center Floor[07.1998 -] ACN1#,SXN1#..NOG,S |
58211-44050 |
US $381.47 |
||
|
58247A
|
58247A
58247-44010 Reinforcement, Rear Seat Cushion Hinge, Rh[07.1998 -] ACN1#,SXN1# |
58247-44010 |
US $16.02 |
||
|
58248A
|
58248A
58248-44010 Reinforcement, Rear Seat Cushion Hinge, Lh[07.1998 -] ACN1#,SXN1# |
58248-44010 |
US $16.02 |
||
|
58307
|
58307
58307-44040 Panel Sub-Assy, Body Lower Back[07.1998 -] ACN1#,SXN1# ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
58307-44040 |
US $321.78 |
||
|
58307
|
58307
58307-44050 Panel Sub-Assy, Body Lower Back[07.1998 -] ACN1#,SXN1# |
58307-44050 |
US $321.78 |
||
|
58311
|
58311
58311-44040 Pan, Rear Floor[07.1998 -] ACN1#,SXN1#..NOG,S |
58311-44040 |
US $441.17 |
||
|
58313
|
58313
58313-44020 Panel, Rear Floor Side, Rh[07.1998 -] ACN1#,SXN1# |
58313-44020 |
US $24.32 |
||
|
58314F
|
58314F
58314-44020 Extension, Rear Floor Pan To Quarter Panel, Lh[07.1998 -] ACN1#,SXN1# |
58314-44020 |
US $24.32 |
||
|
58316E
|
58316E
58316-44020 Retainer, Rear Seat Set[07.1998 -] ACN1#,SXN1#..NOG,S |
58316-44020 |
US $3.64 |
||
|
58316G
|
58316G
58316-44010 Retainer, Rear Seat, No.1[07.1998 -] ACN1#,SXN1#..NOG,S |
58316-44010 |
US $8.44 |
||
|
58325E
|
58325E
58325-44020 Cover, Rear Floor Service Hole[07.1998 -] ACN1#,SXN1# |
58325-44020 |
US $28.39 |
||
|
58371B
|
58371B
58371-44030 Panel, Body Lower Back, Outer[07.1998 -] ACN1#,SXN1# |
58371-44030 |
US $215.49 |
||
|
58386B
|
58386B
58386-44010 Bracket, Rear Bumper Cover, No.2[07.1998 -] ACN1#,SXN1# |
58386-44010 |
US $5.97 |
||
|
58780
|
58780
58780-44020 Band Assy, Tool Box[07.1998 - 07.2003] ACN1#,SXN1# |
58780-44020 |
US $12.52 |
||
| replacements | |||||
|
58780
|
58780
58781-44020 Band, Tool Bag[07.1998 - 07.2003] ACN1#,SXN1# |
58781-44020 |
US $10.92 |
||
|
58780
|
58780
90469-08001 Clamp, Jack Carrier[07.1998 - 07.2003] ACN1#,SXN1# |
90469-08001 |
US $1.28 |
||
|
58793C
|
58793C
58793-44020 Bracket, Jack Carrier, No.1[07.1998 -] ACN1#,SXN1# |
58793-44020 |
US $11.07 |
||
|
75297A
|
75297A
75297-44010 Retainer, Jack Base[07.1998 -] ACN1#,SXN1#..STD |
75297-44010 |
US $28.25 |
||
|
9011506165
|
9011506165
90115-06165 New Genuine Part |
90115-06165 |
US $1.38 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9018904215
|
9018904215
90189-04215 New Genuine Part |
90189-04215 |
US $2.24 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9095001310
|
9095001310
90950-01310 Plug, Hole |
90950-01310 |
from US $7.04 |
||
|
9095001392
|
9095001392
90950-01392 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01392 |
from US $1.21 |
||
|
9095001641
|
9095001641
90950-01641 New Genuine Part |
90950-01641 |
US $3.20 |
||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001867
|
9095001867
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.77 |
||
|
9095001900
|
9095001900
90950-01900 New Genuine Part |
90950-01900 |
US $1.92 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $1.28 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.99 |
||
|
9422380800
|
9422380800
94223-80800 New Genuine Part |
94223-80800 |
US $1.44 |
||
