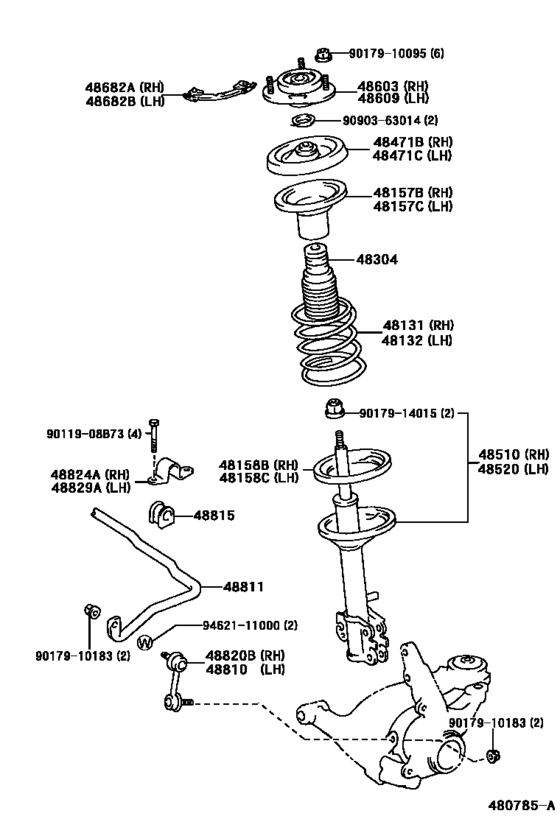

Front Spring & Shock Absorber ([07.1998 - ] (9807- )) Diagram Toyota NADIA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- ACN10
- grade
- S
- body
- STD
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 07.2003
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-44031 Spring, Front Coil, Rh[07.1998 -] ACN10..STD;SXN10..STD..EFI |
48131-44031 |
US $136.86 |
||
|
48132
|
48132
48131-44031 Spring, Front Coil, Rh[07.1998 -] ACN10..STD;SXN10..STD..EFI |
48131-44031 |
US $136.86 |
||
|
48157B
|
48157B
48157-44010 Insulator, Front Coil Spring, Upper Rh[07.1998 -] ACN1#,SXN1# |
48157-44010 |
from US $9.18 |
||
|
48157C
|
48157C
48157-44010 Insulator, Front Coil Spring, Upper Rh[07.1998 -] ACN1#,SXN1# |
48157-44010 |
from US $9.18 |
||
|
48158B
|
48158B
48158-20080 Insulator, Front Coil Spring, Lower Rh[07.1998 -] ACN1#,SXN1# |
48158-20080 |
US $15.81 |
||
|
48158C
|
48158C
48158-20080 Insulator, Front Coil Spring, Lower Rh[07.1998 -] ACN1#,SXN1# |
48158-20080 |
US $15.81 |
||
|
48304
|
48304
48304-44020 Bumper Sub-Assy, Front Spring, No.1[07.1998 -] ACN1#,SXN1#..STD |
48304-44020 |
from US $17.76 |
||
|
48471B
|
48471B
48471-44010 Seat, Front Coil Spring, Upper Rh[07.1998 -] ACN1#,SXN1# |
48471-44010 |
US $33.05 |
||
|
48471C
|
48471C
48471-44010 Seat, Front Coil Spring, Upper Rh[07.1998 -] ACN1#,SXN1# |
48471-44010 |
US $33.05 |
||
|
48510
|
48510
48510-49345 Absorber Assy, Shock, Front Rh[07.1998 -] ACN10,SXN10..STD |
48510-49345 |
US $330.51 |
||
| replacement | |||||
|
48510
|
48510
48510-49765 Absorber Assy, Shock, Front Rh[07.1998 -] ACN10,SXN10..STD |
48510-49765 |
US $330.51 |
||
|
48520
|
48520
48520-49455 Absorber Assy, Shock, Front Lh[07.1998 -] ACN10,SXN10..STD |
48520-49455 |
US $330.51 |
||
| replacement | |||||
|
48520
|
48520
48520-49835 Absorber Assy, Shock, Front Lh[07.1998 -] ACN10,SXN10..STD |
48520-49835 |
US $330.51 |
||
|
48603
|
48603
48609-44020 Support Sub-Assy, Front Suspension, Rh[07.1998 -] ACN1#,SXN1# |
48609-44020 |
US $58.84 |
||
|
48609
|
48609
48609-44020 Support Sub-Assy, Front Suspension, Rh[07.1998 -] ACN1#,SXN1# |
48609-44020 |
US $58.84 |
||
|
48682A
|
48682A
48682-44010 Support, Front Suspension, No.2 Rh[07.1998 -] ACN1#,SXN1# |
48682-44010 |
US $8.30 |
||
|
48682B
|
48682B
48682-44010 Support, Front Suspension, No.2 Rh[07.1998 -] ACN1#,SXN1# |
48682-44010 |
US $8.30 |
||
|
48810
|
48810
48810-44010 Link Assy, Front Stabilizer, Lh[07.1998 -] ACN1#,SXN1# |
48810-44010 |
US $78.44 |
||
|
48811
|
48811
48811-44030
Bar, Stabilizer, Front
[07.1998 -] ACN10,SXN10 |
48811-44030 |
— | ||
|
48815
|
48815
48815-44020 Bush, Front Stabilizer Bar, No.1[07.1998 -] ACN10,SXN10 |
48815-44020 |
US $11.88 |
||
|
48820B
|
48820B
48820-44010 Link Assy, Front Stabilizer, Rh[07.1998 -] ACN1#,SXN1# |
48820-44010 |
from US $62.40 |
||
|
48824A
|
48824A
48824-44020
Bracket, Front Stabilizer, No.1 Rh
[07.1998 -] ACN10,SXN10 |
48824-44020 |
— | ||
|
48829A
|
48829A
48824-44020
Bracket, Front Stabilizer, No.1 Rh
[07.1998 -] ACN10,SXN10 |
48824-44020 |
— | ||
|
9011908B73
|
9011908B73
90119-08B73 New Genuine Part |
90119-08B73 |
US $1.89 |
||
|
9017910095
|
9017910095
90179-10095 Nut(For Backing Plate To Rear Axle Housing Setting) |
90179-10095 |
US $1.76 |
||
|
9017910183
|
9017910183
90179-10183 Nut(For Front Stabilizer Link) |
90179-10183 |
from US $0.88 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.93 |
||
|
9090363014
|
9090363014
90903-63014 Bearing(For Front Suspension Support) |
90903-63014 |
from US $32.07 |
||
|
9462111000
|
9462111000
94621-11000 Washer, Spring(For Steering Center Arm) |
94621-11000 |
from US $1.93 |
||
