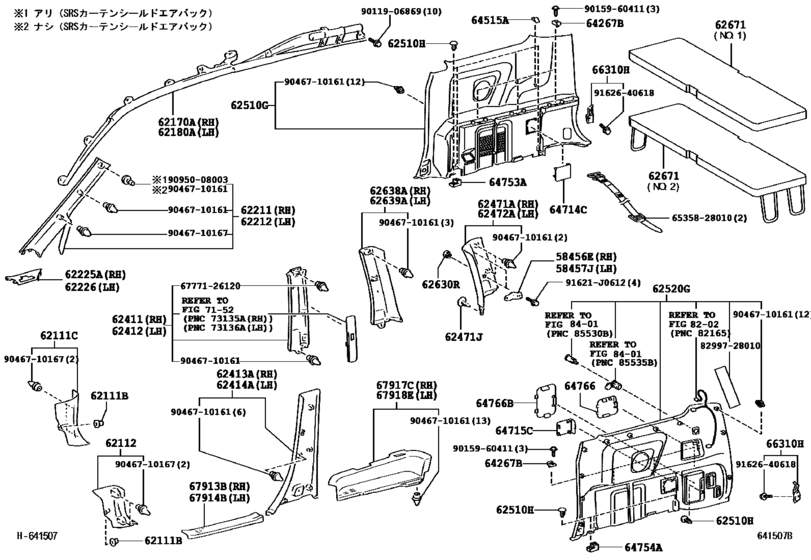

Inside Trim Board ([08.2004 - ] (0408- )05S) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- YY
- ENGINE
- 1AZFSE
- Model
- NOAH
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 05S
- Vehicle Model
- NOAH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58456E
|
58456E
58456-28030 Bracket, Rear Garnish, No.1 Rh[08.2004 -] AZR6# |
58456-28030 |
US $4.95 |
||
|
58457J
|
58457J
58456-28030 Bracket, Rear Garnish, No.1 Rh[08.2004 -] AZR6# |
58456-28030 |
US $4.95 |
||
|
62111B
|
62111B
90467-06193-B0 Clip(For Cowl Side Trim)[08.2004 - 06.2007] AZR6# LT.GRAY |
90467-06193-B0 |
US $2.72 |
||
|
62111C
|
62111C
62111-28130-B1 Board, Cowl Side Trim, Rh[08.2004 - 06.2007] AZR6# GRAY,TRIM1# |
62111-28130-B1 |
US $62.46 |
||
|
62112
|
62112
62112-28140-B1 Board, Cowl Side Trim, Lh[08.2004 - 06.2007] AZR6# GRAY,TRIM1# |
62112-28140-B1 |
US $45.86 |
||
|
62170A
|
62170A
62170-28010 Air Bag Assy, Curtain Shield, Rh[08.2004 -] AZR6# |
62170-28010 |
US $662.48 |
||
|
62180A
|
62180A
62180-28010 Air Bag Assy, Curtain Shield, Lh[08.2004 -] AZR6# |
62180-28010 |
US $662.48 |
||
|
62211
|
62211
62210-28030-B0 Garnish, Front Pillar, Rh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62210-28030-B0 |
US $163.07 |
||
|
62211
|
62211
62210-28040-B0 Garnish, Front Pillar, Rh[08.2004 - 06.2007] AZR6# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1# |
62210-28040-B0 |
US $163.07 |
||
|
62212
|
62212
62220-28030-B0 Garnish, Front Pillar, Lh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62220-28030-B0 |
US $163.07 |
||
|
62212
|
62212
62220-28040-B0 Garnish, Front Pillar, Lh[08.2004 - 06.2007] AZR6# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1# |
62220-28040-B0 |
US $163.07 |
||
|
62225A
|
62225A
62225-28020-B0 Garnish, Front Pillar, Lower Rh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62225-28020-B0 |
US $31.16 |
||
|
62226
|
62226
62226-28020-B0 Garnish, Front Pillar, Lower Lh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62226-28020-B0 |
US $31.16 |
||
|
62411
|
62411
62410-28050-B0 Garnish, Center Pillar, Rh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62410-28050-B0 |
US $99.01 |
||
|
62411
|
62411
62410-28060-B0 Garnish, Center Pillar, Rh[08.2004 - 06.2007] AZR6# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1# |
62410-28060-B0 |
US $99.01 |
||
|
62412
|
62412
62420-28050-B0 Garnish, Center Pillar, Lh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62420-28050-B0 |
US $99.01 |
||
|
62412
|
62412
62420-28060-B0 Garnish, Center Pillar, Lh[08.2004 - 06.2007] AZR6# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1# |
62420-28060-B0 |
US $99.01 |
||
|
62413A
|
62413A
62413-28070-B1 Garnish, Center Pillar, Lower Rh[08.2004 - 06.2007] AZR6# GRAY,TRIM1# |
62413-28070-B1 |
US $122.30 |
||
|
62414A
|
62414A
62414-28100-B1 Garnish, Center Pillar, Lower Lh[08.2004 - 06.2007] AZR6# GRAY,TRIM1# |
62414-28100-B1 |
US $122.30 |
||
|
62471A
|
62471A
62471-28150-B0 Garnish, Roof Side, Inner Rh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62471-28150-B0 |
US $90.27 |
||
|
62471J
|
62471J
90467-05161-C0 Clip[08.2004 - 06.2007] AZR6# BLACK |
90467-05161-C0 |
US $0.96 |
||
|
62472A
|
62472A
62472-28170-B0 Garnish, Roof Side, Inner Lh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62472-28170-B0 |
US $90.27 |
||
|
62510G
|
62510G
62510-28260-B0 Trim Assy, Side No.1, Rh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
62510-28260-B0 |
US $244.61 |
||
|
62510H
|
62510H
90467-05027-B6 Clip(For Quarter Trim Front Panel)[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
90467-05027-B6 |
US $2.04 |
||
|
62520G
|
62520G
62520-28380-B0 Trim Assy, Side No.1, Lh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
62520-28380-B0 |
US $244.61 |
||
|
62630R
|
62630R
47256-28040-B0 Cap (For Quarter Trim)[08.2004 - 06.2007] AZR6#..05S LT.GRAY,TRIM1# |
47256-28040-B0 |
US $0.96 |
||
|
62638A
|
62638A
62638-28181-B0 Garnish, Quarter Pillar, Rh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62638-28181-B0 |
US $68 |
||
|
62639A
|
62639A
62639-28211-B0 Garnish, Quarter Pillar, Lh[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
62639-28211-B0 |
US $68 |
||
|
62671
|
62671
65341-28010-B0 Board Sub-Assy, Quarter Trim, Lower[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1#,ＮＯ．１ |
65341-28010-B0 |
US $374.19 |
||
| replacement | |||||
|
62671
|
62671
65341-28010-C0 Board Sub-Assy, Quarter Trim, Lower[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1#,ＮＯ．１ |
65341-28010-C0 |
US $259.17 |
||
|
62671
|
62671
65342-28010-B0 Board Sub-Assy, Quarter Trim, Lower[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1#,ＮＯ．２ |
65342-28010-B0 |
US $413.50 |
||
| replacement | |||||
|
62671
|
62671
65342-28010-C0 Board Sub-Assy, Quarter Trim, Lower[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1#,ＮＯ．２ |
65342-28010-C0 |
US $285.38 |
||
|
64267B
|
64267B
58492-28030-B0 Hook, Package Holder Net[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
58492-28030-B0 |
US $7.28 |
||
| replacement | |||||
|
64267B
|
64267B
58492-28030-C0 Hook, Package Holder Net[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
58492-28030-C0 |
US $4.80 |
||
|
64515A
|
64515A
64515-28010-B1 Holder, Luggage Compartment Door Hook[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64515-28010-B1 |
US $2.62 |
||
| replacement | |||||
|
64515A
|
64515A
64515-28010-B2 Holder, Luggage Compartment Door Hook[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64515-28010-B2 |
US $2.62 |
||
|
64714C
|
64714C
64714-28020-B0 Cover, Deck Side Trim, Rh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64714-28020-B0 |
US $34.65 |
||
| replacement | |||||
|
64714C
|
64714C
64714-28020-C0 Cover, Deck Side Trim, Rh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64714-28020-C0 |
US $23.88 |
||
|
64715C
|
64715C
64715-28020-B0 Cover, Deck Side Trim, Lh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64715-28020-B0 |
US $34.65 |
||
| replacement | |||||
|
64715C
|
64715C
64715-28020-C0 Cover, Deck Side Trim, Lh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64715-28020-C0 |
US $23.88 |
||
|
64753A
|
64753A
64753-28140-B0 Garnish, Deck Side, Rear, Rh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64753-28140-B0 |
US $13.83 |
||
| replacement | |||||
|
64753A
|
64753A
64753-28140-C0 Garnish, Deck Side, Rear, Rh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64753-28140-C0 |
US $9.46 |
||
|
64754A
|
64754A
64754-28160-B0 Garnish, Deck Side, Rear, Lh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64754-28160-B0 |
US $13.83 |
||
| replacement | |||||
|
64754A
|
64754A
64754-28160-C0 Garnish, Deck Side, Rear, Lh[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64754-28160-C0 |
US $9.46 |
||
|
64766
|
64766
64766-28030-B0 Cover Sub-Assy, Quarter Trim Jack[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64766-28030-B0 |
US $32.18 |
||
|
64766B
|
64766B
64766-28040-B0 Cover, Quarter Trim Jack[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM1# |
64766-28040-B0 |
US $42.66 |
||
|
66310H
|
66310H
66310-28070-B2 Hook Assy, Rope[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM18 |
66310-28070-B2 |
US $16.89 |
||
| replacement | |||||
|
66310H
|
66310H
66310-28070-C0 Hook Assy, Rope[08.2004 - 06.2007] AZR6#..05S DK.GRAY,TRIM18 |
66310-28070-C0 |
US $15.81 |
||
|
67913B
|
67913B
67913-28040-B1 Plate, Front Door Scuff, Rh[08.2004 - 06.2007] AZR6# GRAY,TRIM1# |
67913-28040-B1 |
US $58.39 |
||
|
67914B
|
67914B
67914-28040-B1 Plate, Front Door Scuff, Lh[08.2004 - 06.2007] AZR6# GRAY,TRIM1# |
67914-28040-B1 |
US $58.39 |
||
|
67917C
|
67917C
67917-28080-B1 Plate, Rear Door Scuff, Rh[08.2004 - 06.2007] AZR6#..05S,08S GRAY,TRIM1# |
67917-28080-B1 |
US $152.88 |
||
|
67918E
|
67918E
67918-28080-B1 Plate, Rear Door Scuff, Lh[08.2004 - 06.2007] AZR6#..05S,08S GRAY,TRIM1# |
67918-28080-B1 |
US $152.88 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
6535828010
|
6535828010
65358-28010 New Genuine Part |
65358-28010 |
US $57.37 |
||
|
6777126120
|
6777126120
67771-26120 Clip (For Center Pillar Garnish Panel, Upper) |
67771-26120 |
US $1.75 |
||
| replacement | |||||
|
6777126120
|
6777126120
63395-12150 Clip (For Center Pillar Garnish Panel, Upper) |
63395-12150 |
from US $0.96 |
||
|
8299728010
|
8299728010
82997-28010 New Genuine Part |
82997-28010 |
US $4.95 |
||
|
9011906869
|
9011906869
90119-06869 Bolt, W/washer |
90119-06869 |
US $0.96 |
||
|
9015960411
|
9015960411
90159-60411 SCREW WWASHER |
90159-60411 |
from US $1.01 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9046710167
|
9046710167
90467-10167 Clip(For Rear Floor Finish Plate) |
90467-10167 |
from US $1.01 |
||
|
9095008003
|
9095008003
90950-08003 Clip(For Front Pillar Garnish) |
90950-08003 |
US $2.33 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
||
