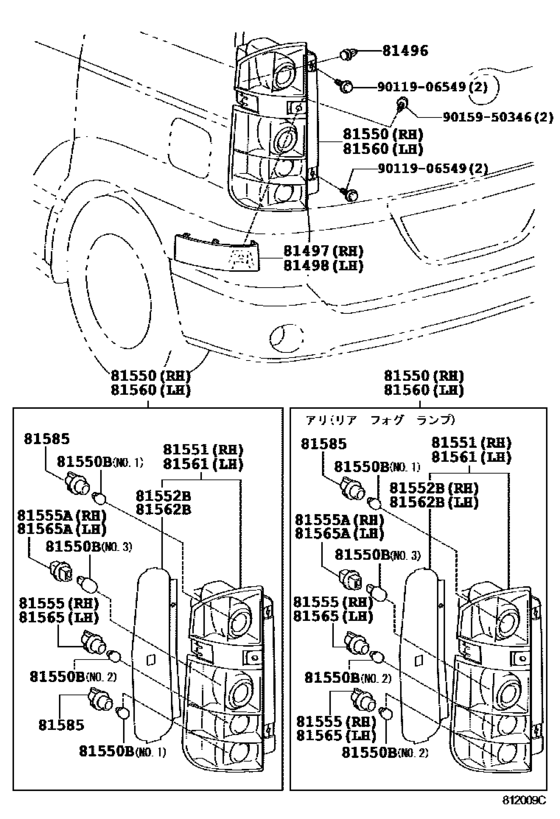

Rear Combination Lamp ([11.2001 - 08.2004] (0111-0408)NOAH) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- AZR65
- grade
- S
- ENGINE
- 1AZFSE
- Model
- NOAH
- From
- 11.2001
- To
- 08.2004
- Gear Shift Type
- 4HC
- Seating Capacity
- 08S
- Vehicle Model
- NOAH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-28010 Guide, Rear Combination Lamp[11.2001 - 08.2004] AZR6# |
81496-28010 |
from US $1.63 |
||
|
81497
|
81497
81497-28040-A1 Cover, Rear Combination Lamp, Rh[11.2001 - 08.2004] AZR6# WHITE PM.,042 |
81497-28040-A1 |
US $32.91 |
||
|
81497
|
81497
81497-28040-B0 Cover, Rear Combination Lamp, Rh[11.2001 - 08.2004] AZR6# SILVER ME.,1D4 |
81497-28040-B0 |
US $32.91 |
||
|
81497
|
81497
81497-28040-B1 Cover, Rear Combination Lamp, Rh[11.2001 - 08.2004] AZR6# DARK GRAY M.M.,1E2 |
81497-28040-B1 |
US $32.91 |
||
|
81497
|
81497
81497-28040-J0 Cover, Rear Combination Lamp, Rh[11.2001 - 08.2004] AZR6# DARK BLUE MC,8Q7 |
81497-28040-J0 |
US $32.76 |
||
|
81498
|
81498
81498-28040-A1 Cover, Rear Combination Lamp, Lh[11.2001 - 08.2004] AZR6# WHITE PM.,042 |
81498-28040-A1 |
US $32.91 |
||
|
81498
|
81498
81498-28040-B0 Cover, Rear Combination Lamp, Lh[11.2001 - 08.2004] AZR6# SILVER ME.,1D4 |
81498-28040-B0 |
US $32.91 |
||
|
81498
|
81498
81498-28040-B1 Cover, Rear Combination Lamp, Lh[11.2001 - 08.2004] AZR6# DARK GRAY M.M.,1E2 |
81498-28040-B1 |
US $32.91 |
||
|
81498
|
81498
81498-28040-J0 Cover, Rear Combination Lamp, Lh[11.2001 - 08.2004] AZR6# DARK BLUE MC,8Q7 |
81498-28040-J0 |
US $32.76 |
||
|
81550
|
81550
81550-28240 Lamp Assy, Rear Combination, Rh[11.2001 - 08.2004] AZR6#..NOAH |
81550-28240 |
from US $228.53 |
||
|
81550
|
81550
81550-28320 Lamp Assy, Rear Combination, Rh[11.2001 - 08.2004] AZR6#..NOAH ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81550-28320 |
US $413.50 |
||
|
81550B
|
81550B
90981-11048
Bulb(For Rear Combination Lamp)
[11.2001 - 08.2004] AZR6# １２Ｖ ２１／５Ｗ,ＮＯ．１; AZR6# １２Ｖ ２１／５Ｗ,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ＮＯ．１ |
90981-11048 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[11.2001 - 08.2004] AZR6# １２Ｖ ２１／５Ｗ,ＮＯ．１; AZR6# １２Ｖ ２１／５Ｗ,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ＮＯ．１ |
90981-13044 |
from US $1.57 |
||
|
81550B
|
81550B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[11.2001 - 08.2004] AZR6# １２Ｖ １６Ｗ,ＮＯ．２ |
90981-11059 |
from US $1.37 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[11.2001 - 08.2004] AZR6# １２Ｖ ２１Ｗ,ＮＯ．３ |
90981-13043 |
from US $1.50 |
||
|
81551
|
81551
81551-28240 Lens, Rear Combination Lamp, Rh[11.2001 - 08.2004] AZR6#..NOAH |
81551-28240 |
from US $183.33 |
||
|
81551
|
81551
81551-28320 Lens, Rear Combination Lamp, Rh[11.2001 - 08.2004] AZR6#..NOAH ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81551-28320 |
US $353.81 |
||
|
81552B
|
81552B
81552-28240 Packing, Rear Combination Lamp Body, Rh[11.2001 - 08.2004] AZR6# |
81552-28240 |
US $13.83 |
||
|
81555
|
81555
81555-28240 Socket, Back Up Lamp[11.2001 - 08.2004] AZR6# |
81555-28240 |
US $13.09 |
||
|
81555A
|
81555A
81555-3A030 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[11.2001 - 08.2004] AZR6# |
81555-3A030 |
US $14.41 |
||
|
81560
|
81560
81560-28240 Lamp Assy, Rear Combination, Lh[11.2001 - 08.2004] AZR6#..NOAH |
81560-28240 |
US $413.50 |
||
|
81560
|
81560
81560-28320 Lamp Assy, Rear Combination, Lh[11.2001 - 08.2004] AZR6#..NOAH ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81560-28320 |
US $413.50 |
||
|
81561
|
81561
81561-28240 Lens, Rear Combination Lamp, Lh[11.2001 - 08.2004] AZR6#..NOAH |
81561-28240 |
from US $224.56 |
||
|
81561
|
81561
81561-28320 Lens, Rear Combination Lamp, Lh[11.2001 - 08.2004] AZR6#..NOAH ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81561-28320 |
from US $183.33 |
||
|
81562B
|
81562B
81562-28240 Packing, Rear Combination Lamp Body, Lh[11.2001 - 08.2004] AZR6# |
81562-28240 |
US $13.83 |
||
|
81565
|
81565
81555-28240 Socket, Back Up Lamp[11.2001 - 08.2004] AZR6# |
81555-28240 |
US $13.09 |
||
|
81565A
|
81565A
81555-3A030 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[11.2001 - 08.2004] AZR6# |
81555-3A030 |
US $14.41 |
||
|
81585
|
81585
81585-30290 Socket, Tail & Stop Lamp[11.2001 - 08.2004] AZR6#..VOXY; AZR6#..NOAH ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81585-30290 |
US $9.36 |
||
|
9011906549
|
9011906549
90119-06549 BOLT WWASHER |
90119-06549 |
US $1.51 |
||
|
9015950346
|
9015950346
90159-50346 SCREW |
90159-50346 |
from US $0.63 |
||
