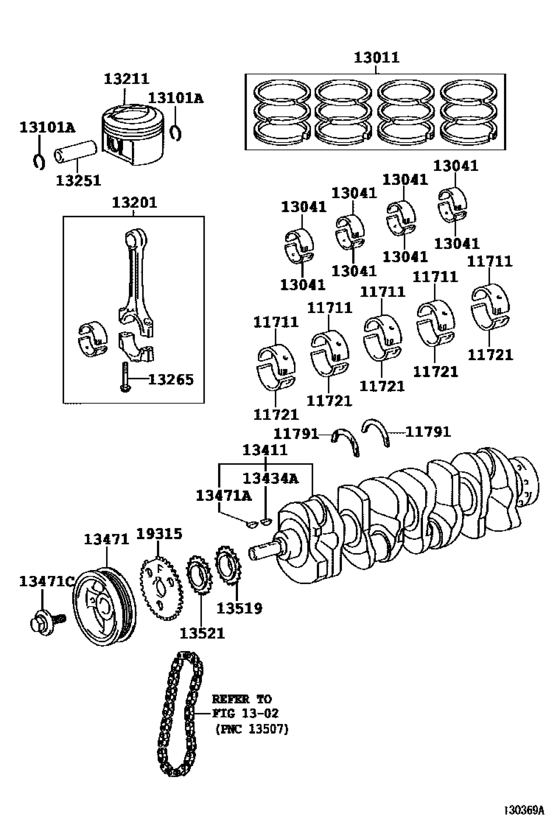

Crankshaft & Piston ([11.2001 - ] (0111- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11711
|
11711
11711-28010-01
Bearing, Crankshaft
[08.2004 - 11.2005] 1AZFSE..AZR6# MARK 1,修理書参照 |
11711-28010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11711-28021-01 Bearing, CrankshaftCRANKSHAFT [08.2004 - 11.2005] 1AZFSE..AZR6# MARK 1,修理書参照 |
11711-28021-01 |
from US $9.85 |
||
|
11711
|
11711
11711-28010-02
Bearing, Crankshaft
[08.2004 - 11.2005] 1AZFSE..AZR6# MARK 2,修理書参照 |
11711-28010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11711-28021-02 Bearing, CrankshaftCRANKSHAFT [08.2004 - 11.2005] 1AZFSE..AZR6# MARK 2,修理書参照 |
11711-28021-02 |
from US $10.14 |
||
|
11711
|
11711
11711-28010-03
Bearing, Crankshaft
[08.2004 - 11.2005] 1AZFSE..AZR6# MARK 3,修理書参照 |
11711-28010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11711-28021-03 Bearing, CrankshaftCRANKSHAFT [08.2004 - 11.2005] 1AZFSE..AZR6# MARK 3,修理書参照 |
11711-28021-03 |
from US $8.95 |
||
|
11711
|
11711
11711-28010-04
Bearing, Crankshaft
[08.2004 - 11.2005] 1AZFSE..AZR6# MARK 4,修理書参照 |
11711-28010-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11711-28021-04 Bearing, CrankshaftCRANKSHAFT [08.2004 - 11.2005] 1AZFSE..AZR6# MARK 4,修理書参照 |
11711-28021-04 |
from US $10.74 |
||
|
11711
|
11711
11711-28020-01
Bearing, Crankshaft
[11.2005 -] 1AZFSE..AZR6# MARK1,修理書参照 |
11711-28020-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11711-28021-01 Bearing, CrankshaftCRANKSHAFT [11.2005 -] 1AZFSE..AZR6# MARK1,修理書参照 |
11711-28021-01 |
from US $9.85 |
||
|
11711
|
11711
11711-28020-02
Bearing, Crankshaft
[11.2005 -] 1AZFSE..AZR6# MARK2,修理書参照 |
11711-28020-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11711-28021-02 Bearing, CrankshaftCRANKSHAFT [11.2005 -] 1AZFSE..AZR6# MARK2,修理書参照 |
11711-28021-02 |
from US $10.14 |
||
|
11711
|
11711
11711-28020-03
Bearing, Crankshaft
[11.2005 -] 1AZFSE..AZR6# MARK3,修理書参照 |
11711-28020-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11711-28021-03 Bearing, CrankshaftCRANKSHAFT [11.2005 -] 1AZFSE..AZR6# MARK3,修理書参照 |
11711-28021-03 |
from US $8.95 |
||
|
11711
|
11711
11711-28020-04
Bearing, Crankshaft
[11.2005 -] 1AZFSE..AZR6# MARK4,修理書参照 |
11711-28020-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11711-28021-04 Bearing, CrankshaftCRANKSHAFT [11.2005 -] 1AZFSE..AZR6# MARK4,修理書参照 |
11711-28021-04 |
from US $10.74 |
||
|
11721
|
11721
11721-28010-01
Bearing, Crankshaft, No.2
[08.2004 - 11.2005] 1AZFSE..AZR6# MARK 1,修理書参照 |
11721-28010-01 |
— | ||
| replacement | |||||
|
11721
|
11721
11721-28021-01 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [08.2004 - 11.2005] 1AZFSE..AZR6# MARK 1,修理書参照 |
11721-28021-01 |
from US $9.61 |
||
|
11721
|
11721
11721-28010-02
Bearing, Crankshaft, No.2
[08.2004 - 11.2005] 1AZFSE..AZR6# MARK 2,修理書参照 |
11721-28010-02 |
— | ||
| replacement | |||||
|
11721
|
11721
11721-28021-02 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [08.2004 - 11.2005] 1AZFSE..AZR6# MARK 2,修理書参照 |
11721-28021-02 |
from US $9.77 |
||
|
11721
|
11721
11721-28010-03
Bearing, Crankshaft, No.2
[08.2004 - 11.2005] 1AZFSE..AZR6# MARK 3,修理書参照 |
11721-28010-03 |
— | ||
| replacement | |||||
|
11721
|
11721
11721-28021-03 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [08.2004 - 11.2005] 1AZFSE..AZR6# MARK 3,修理書参照 |
11721-28021-03 |
from US $9.56 |
||
|
11721
|
11721
11721-28010-04
Bearing, Crankshaft, No.2
[08.2004 - 11.2005] 1AZFSE..AZR6# MARK 4,修理書参照 |
11721-28010-04 |
— | ||
| replacement | |||||
|
11721
|
11721
11721-28021-04 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [08.2004 - 11.2005] 1AZFSE..AZR6# MARK 4,修理書参照 |
11721-28021-04 |
from US $10.98 |
||
|
11721
|
11721
11721-28020-01
Bearing, Crankshaft, No.2
[11.2005 -] 1AZFSE..AZR6# MARK1,修理書参照 |
11721-28020-01 |
— | ||
| replacement | |||||
|
11721
|
11721
11721-28021-01 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [11.2005 -] 1AZFSE..AZR6# MARK1,修理書参照 |
11721-28021-01 |
from US $9.61 |
||
|
11721
|
11721
11721-28020-02
Bearing, Crankshaft, No.2
[11.2005 -] 1AZFSE..AZR6# MARK2,修理書参照 |
11721-28020-02 |
— | ||
| replacement | |||||
|
11721
|
11721
11721-28021-02 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [11.2005 -] 1AZFSE..AZR6# MARK2,修理書参照 |
11721-28021-02 |
from US $9.77 |
||
|
11721
|
11721
11721-28020-03
Bearing, Crankshaft, No.2
[11.2005 -] 1AZFSE..AZR6# MARK3,修理書参照 |
11721-28020-03 |
— | ||
| replacement | |||||
|
11721
|
11721
11721-28021-03 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [11.2005 -] 1AZFSE..AZR6# MARK3,修理書参照 |
11721-28021-03 |
from US $9.56 |
||
|
11721
|
11721
11721-28020-04
Bearing, Crankshaft, No.2
[11.2005 -] 1AZFSE..AZR6# MARK4,修理書参照 |
11721-28020-04 |
— | ||
| replacement | |||||
|
11721
|
11721
11721-28021-04 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [11.2005 -] 1AZFSE..AZR6# MARK4,修理書参照 |
11721-28021-04 |
from US $10.98 |
||
|
11791
|
11791
11791-28020 Washer, Crankshaft Thrust, Upper[08.2004 -] 1AZFSE..AZR6# ＳＴＤ |
11791-28020 |
from US $16.73 |
||
|
13011
|
13011
13011-28200 Piston Ring Set (Std)[08.2004 -] 1AZFSE..AZR6# ＳＴＤ |
13011-28200 |
from US $168.79 |
||
|
13041
|
13041
13281-28010-01
Bearing, Connecting Rod
[08.2004 -] 1AZFSE..AZR6# MARK 1,修理書参照 |
13281-28010-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13281-28011-01 Bearing, Connecting RodCONNECTING ROD [08.2004 -] 1AZFSE..AZR6# MARK 1,修理書参照 |
13281-28011-01 |
from US $5.85 |
||
|
13041
|
13041
13281-28010-02
Bearing, Connecting Rod
[08.2004 -] 1AZFSE..AZR6# MARK 2,修理書参照 |
13281-28010-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13281-28011-02 Bearing, Connecting RodCONNECTING ROD [08.2004 -] 1AZFSE..AZR6# MARK 2,修理書参照 |
13281-28011-02 |
from US $5.58 |
||
|
13041
|
13041
13281-28010-03
Bearing, Connecting Rod
[08.2004 -] 1AZFSE..AZR6# MARK 3,修理書参照 |
13281-28010-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13281-28011-03 Bearing, Connecting RodCONNECTING ROD [08.2004 -] 1AZFSE..AZR6# MARK 3,修理書参照 |
13281-28011-03 |
from US $5.66 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[08.2004 -] 1AZFSE..AZR6# |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-09790-A0
Rod Sub-Assy, Connecting
[04.2005 - 06.2007] 1AZFSE..AZR6# MARK A,修理書参照 |
13201-09790-A0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-A0 Rod Sub-Assy, ConnectingCONNECTING [04.2005 - 06.2007] 1AZFSE..AZR6# MARK A,修理書参照 |
13201-29686-A0 |
from US $168.90 |
||
|
13201
|
13201
13201-09790-B0
Rod Sub-Assy, Connecting
[04.2005 - 06.2007] 1AZFSE..AZR6# MARK B,修理書参照 |
13201-09790-B0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-B0 Rod Sub-Assy, ConnectingCONNECTING [04.2005 - 06.2007] 1AZFSE..AZR6# MARK B,修理書参照 |
13201-29686-B0 |
US $214.91 |
||
|
13201
|
13201
13201-09790-C0
Rod Sub-Assy, Connecting
[04.2005 - 06.2007] 1AZFSE..AZR6# MARK C,修理書参照 |
13201-09790-C0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-C0 Rod Sub-Assy, ConnectingCONNECTING [04.2005 - 06.2007] 1AZFSE..AZR6# MARK C,修理書参照 |
13201-29686-C0 |
US $168.90 |
||
|
13201
|
13201
13201-29685-A0
Rod Sub-Assy, Connecting
[08.2004 - 04.2005] 1AZFSE..AZR6# MARK A,修理書参照 |
13201-29685-A0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-A0 Rod Sub-Assy, ConnectingCONNECTING [08.2004 - 04.2005] 1AZFSE..AZR6# MARK A,修理書参照 |
13201-29686-A0 |
from US $168.90 |
||
|
13201
|
13201
13201-29685-B0
Rod Sub-Assy, Connecting
[08.2004 - 04.2005] 1AZFSE..AZR6# MARK B,修理書参照 |
13201-29685-B0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-B0 Rod Sub-Assy, ConnectingCONNECTING [08.2004 - 04.2005] 1AZFSE..AZR6# MARK B,修理書参照 |
13201-29686-B0 |
US $214.91 |
||
|
13201
|
13201
13201-29685-C0
Rod Sub-Assy, Connecting
[08.2004 - 04.2005] 1AZFSE..AZR6# MARK C,修理書参照 |
13201-29685-C0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-C0 Rod Sub-Assy, ConnectingCONNECTING [08.2004 - 04.2005] 1AZFSE..AZR6# MARK C,修理書参照 |
13201-29686-C0 |
US $168.90 |
||
|
13211
|
13211
13211-28090-A0 Piston[08.2004 -] 1AZFSE..AZR6# MARK A,修理書参照 |
13211-28090-A0 |
US $108.33 |
||
|
13211
|
13211
13211-28090-B0 Piston[08.2004 -] 1AZFSE..AZR6# MARK B,修理書参照 |
13211-28090-B0 |
US $104.72 |
||
|
13211
|
13211
13211-28090-C0 Piston[08.2004 -] 1AZFSE..AZR6# MARK C,修理書参照 |
13211-28090-C0 |
US $103.81 |
||
|
13251
|
13251
13251-28010-A0
Pin, Piston
[08.2004 - 12.2006] 1AZFSE..AZR6# MARK A,修理書参照 |
13251-28010-A0 |
— | ||
| replacement | |||||
|
13251
|
13251
13251-28020-A0 Pin, Piston[08.2004 - 12.2006] 1AZFSE..AZR6# MARK A,修理書参照 |
13251-28020-A0 |
from US $10.78 |
||
|
13251
|
13251
13251-28010-B0
Pin, Piston
[08.2004 - 12.2006] 1AZFSE..AZR6# MARK B,修理書参照 |
13251-28010-B0 |
— | ||
| replacement | |||||
|
13251
|
13251
13251-28020-B0 Pin, Piston[08.2004 - 12.2006] 1AZFSE..AZR6# MARK B,修理書参照 |
13251-28020-B0 |
from US $12.32 |
||
|
13251
|
13251
13251-28010-C0
Pin, Piston
[08.2004 - 12.2006] 1AZFSE..AZR6# MARK C,修理書参照 |
13251-28010-C0 |
— | ||
| replacement | |||||
|
13251
|
13251
13251-28020-C0 Pin, Piston[08.2004 - 12.2006] 1AZFSE..AZR6# MARK C,修理書参照 |
13251-28020-C0 |
from US $10.74 |
||
|
13251
|
13251
13251-28020-A0 Pin, Piston[12.2006 -] 1AZFSE..AZR6# MARK A,修理書参照 |
13251-28020-A0 |
from US $10.78 |
||
|
13251
|
13251
13251-28020-B0 Pin, Piston[12.2006 -] 1AZFSE..AZR6# MARK B,修理書参照 |
13251-28020-B0 |
from US $12.32 |
||
|
13251
|
13251
13251-28020-C0 Pin, Piston[12.2006 -] 1AZFSE..AZR6# MARK C,修理書参照 |
13251-28020-C0 |
from US $10.74 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[08.2004 -] 1AZFSE..AZR6# |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[08.2004 -] 1AZFSE..AZR6# |
13265-28020 |
from US $3 |
||
|
13411
|
13411
13411-28040 Crankshaft[08.2004 -] 1AZFSE..AZR6# |
13411-28040 |
US $1,122.58 |
||
|
13434A
|
13434A
95161-30416 Pin, Straight(For Crankshaft)[08.2004 -] 1AZFSE..AZR6# |
95161-30416 |
from US $1.54 |
||
|
13471
|
13471
13470-28020 Pulley, Crankshaft[08.2004 -] 1AZFSE..AZR6# |
13470-28020 |
from US $177.39 |
||
|
13471A
|
13471A
95161-30416 Pin, Straight(For Crankshaft)[08.2004 -] 1AZFSE..AZR6# |
95161-30416 |
from US $1.54 |
||
|
13471C
|
13471C
90119-14106 Bolt(For Crankshaft Pulley Set)[08.2004 -] 1AZFSE..AZR6# |
90119-14106 |
US $5.76 |
||
|
13519
|
13519
13519-28010 Gear, Oil Pump Drive[08.2004 -] 1AZFSE..AZR6# |
13519-28010 |
from US $5.56 |
||
|
13521
|
13521
13521-28010
Gear Or Sprocket, Crankshaft Timing
[08.2004 - 01.2006] 1AZFSE..AZR6# |
13521-28010 |
— | ||
| replacement | |||||
|
13521
|
13521
13521-28030 Gear Or Sprocket, Crankshaft Timing[08.2004 - 01.2006] 1AZFSE..AZR6# |
13521-28030 |
US $16.26 |
||
|
13521
|
13521
13521-28030 Gear Or Sprocket, Crankshaft Timing[01.2006 -] 1AZFSE..AZR6# |
13521-28030 |
US $16.26 |
||
|
19315
|
19315
19315-28010 Plate, Crank Angle Sensor, No.1[08.2004 -] 1AZFSE..AZR6# |
19315-28010 |
from US $9.81 |
||
