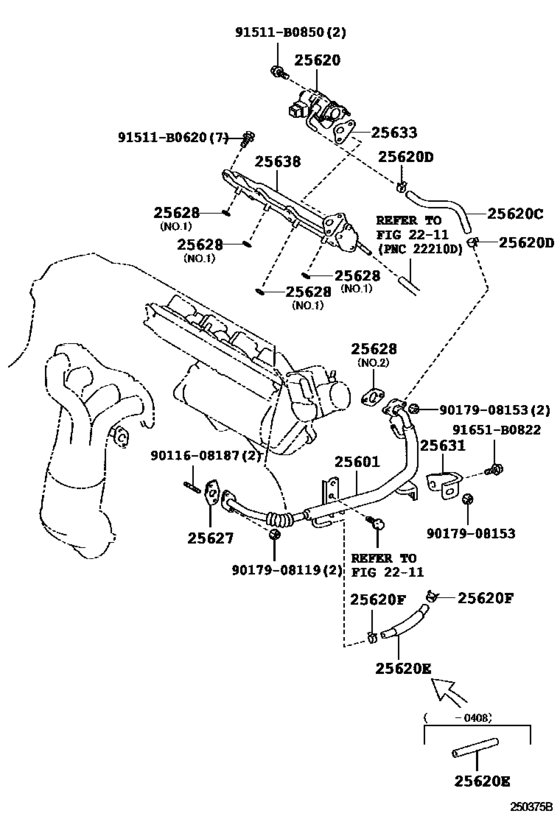

Exhaust Gas Recirculation System ([11.2001 - ] (0111- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25611-28010 Pipe Sub-Assy, Egr, No.1[08.2004 - 07.2005] 1AZFSE..AZR6# |
25611-28010 |
US $182 |
||
| replacement | |||||
|
25601
|
25601
25611-28011 Pipe Sub-Assy, Egr, No.1[08.2004 - 07.2005] 1AZFSE..AZR6# |
25611-28011 |
US $151.42 |
||
|
25601
|
25601
25611-28011 Pipe Sub-Assy, Egr, No.1[07.2005 -] 1AZFSE..AZR6# |
25611-28011 |
US $151.42 |
||
|
25620
|
25620
25620-28100
Valve Assy, Egr
[08.2004 -] 1AZFSE..AZR6# |
25620-28100 |
— | ||
| replacement | |||||
|
25620
|
25620
25620-28101 Valve Assy, Egr[08.2004 -] 1AZFSE..AZR6# |
25620-28101 |
US $408.80 |
||
|
25620C
|
25620C
99555-10100 Hose, Water By-Pass, No.2[08.2004 -] 1AZFSE..AZR6# |
99555-10100 |
US $3.84 |
||
|
25620D
|
25620D
96135-51300 Clamp, Hose[08.2004 -] 1AZFSE..AZR6# |
96135-51300 |
from US $1.92 |
||
|
25620E
|
25620E
16264-28070 Hose, Water By-Pass No.2[08.2004 -] 1AZFSE..AZR6# |
16264-28070 |
US $9.44 |
||
|
25620F
|
25620F
96135-51300 Clamp, Hose[08.2004 -] 1AZFSE..AZR6# |
96135-51300 |
from US $1.92 |
||
|
25627
|
25627
25627-74080 Gasket(For Pipe, Egr, No.2)[08.2004 -] 1AZFSE..AZR6# |
25627-74080 |
US $7.36 |
||
|
25628
|
25628
25628-28010 Gasket, Egr Inlet[08.2004 - 06.2007] 1AZFSE..AZR6# ＮＯ．１ |
25628-28010 |
from US $1.95 |
||
|
25628
|
25628
25628-28030 Gasket, Egr InletEGR INLET [08.2004 - 06.2007] 1AZFSE..AZR6# ＮＯ．２ |
25628-28030 |
US $14.40 |
||
|
25631
|
25631
25631-28010 Stay, Egr Pipe, No.1[08.2004 -] 1AZFSE..AZR6# |
25631-28010 |
US $6.70 |
||
|
25633
|
25633
25633-28010 Gasket, Egr Valve[08.2004 -] 1AZFSE..AZR6# |
25633-28010 |
US $7.20 |
||
|
25638
|
25638
25638-28030 Chamber, Egr Delivery[08.2004 -] 1AZFSE..AZR6# |
25638-28030 |
US $182 |
||
| replacement | |||||
|
25638
|
25638
25638-28031 Chamber, Egr Delivery[08.2004 -] 1AZFSE..AZR6# |
25638-28031 |
US $194.40 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.76 |
||
|
91511B0850
|
91511B0850
91511-B0850 Bolt |
91511-B0850 |
from US $1.62 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9011608187
|
9011608187
90116-08187 Bolt, Stud(For Oxygen Sensor) |
90116-08187 |
US $3.04 |
||
|
9017908119
|
9017908119
90179-08119 NUT |
90179-08119 |
US $1.44 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
