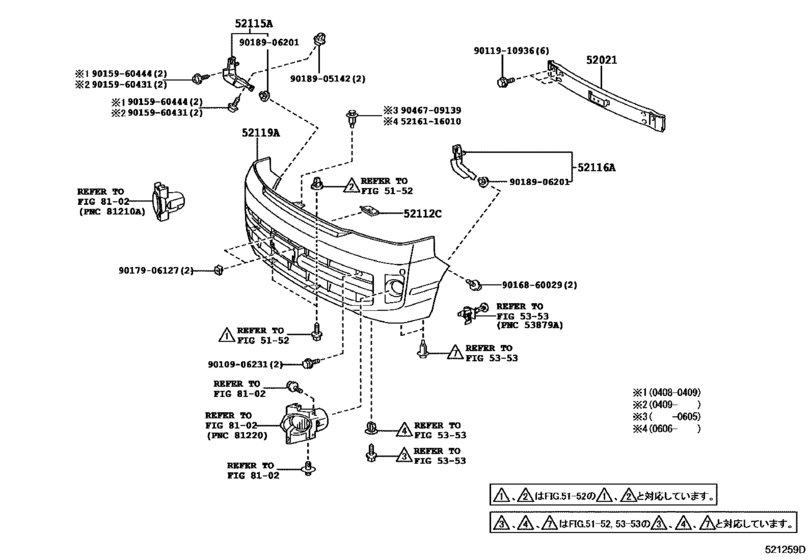

Front Bumper & Bumper Stay ([08.2004 - ] (0408- )Z) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-28200 Reinforcement Sub-Assy, Front Bumper[08.2004 -] AZR6# |
52021-28200 |
US $226.08 |
||
|
52112C
|
52112C
52112-28080 Extension, Front Bumper[08.2004 - 06.2007] AZR6#..Z |
52112-28080 |
US $5.60 |
||
|
52115A
|
52115A
52115-28110 Support, Front Bumper Side, Rh[08.2004 -] AZR6#..VOXY |
52115-28110 |
from US $22.04 |
||
|
52116A
|
52116A
52116-28110 Support, Front Bumper Side, Lh[08.2004 -] AZR6#..VOXY |
52116-28110 |
from US $22.04 |
||
|
52119A
|
52119A
52119-28B20-A0 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z WHITE PM.,042 |
52119-28B20-A0 |
US $1,004.78 |
||
|
52119A
|
52119A
52119-28B20-B0 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z SILVER ME.,1D4 |
52119-28B20-B0 |
US $1,004.78 |
||
|
52119A
|
52119A
52119-28B20-B1 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z DARK GRAY M.M.,1E2 |
52119-28B20-B1 |
US $1,004.78 |
||
|
52119A
|
52119A
52119-28B20-B2 Cover, Front Bumper[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A),GRAY ME.,1D2 |
52119-28B20-B2 |
US $1,004.78 |
||
|
52119A
|
52119A
52119-28B20-C0 Cover, Front Bumper[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A),BLACK,202 |
52119-28B20-C0 |
US $1,004.78 |
||
|
52119A
|
52119A
52119-28B20-J0 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z DARK BLUE MC.,8P8 |
52119-28B20-J0 |
US $1,004.78 |
||
|
52119A
|
52119A
52119-28B30-A0 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
52119-28B30-A0 |
US $1,078.90 |
||
| replacement | |||||
|
52119A
|
52119A
52119-28990 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
52119-28990 |
US $646.46 |
||
|
52119A
|
52119A
52119-28B30-B0 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
52119-28B30-B0 |
US $1,078.90 |
||
| replacement | |||||
|
52119A
|
52119A
52119-28990 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
52119-28990 |
US $646.46 |
||
|
52119A
|
52119A
52119-28B30-B1 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
52119-28B30-B1 |
US $1,078.90 |
||
| replacement | |||||
|
52119A
|
52119A
52119-28990 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
52119-28990 |
US $646.46 |
||
|
52119A
|
52119A
52119-28B30-B2 Cover, Front Bumper[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A);ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),GRAY ME.,1D2 |
52119-28B30-B2 |
US $1,078.90 |
||
| replacement | |||||
|
52119A
|
52119A
52119-28990 Cover, Front Bumper[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A);ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),GRAY ME.,1D2 |
52119-28990 |
US $646.46 |
||
|
52119A
|
52119A
52119-28B30-C0 Cover, Front Bumper[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A);ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLACK,202 |
52119-28B30-C0 |
US $1,078.90 |
||
| replacement | |||||
|
52119A
|
52119A
52119-28990 Cover, Front Bumper[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A);ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLACK,202 |
52119-28990 |
US $646.46 |
||
|
52119A
|
52119A
52119-28B30-J0 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC.,8P8 |
52119-28B30-J0 |
US $1,078.90 |
||
| replacement | |||||
|
52119A
|
52119A
52119-28990 Cover, Front Bumper[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC.,8P8 |
52119-28990 |
US $646.46 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
from US $1.50 |
||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
9010906231
|
9010906231
90109-06231 BOLT |
90109-06231 |
from US $0.84 |
||
|
9011910936
|
9011910936
90119-10936 New Genuine Part |
90119-10936 |
US $3.52 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9015960444
|
9015960444
90159-60444 SCREW WWASHER |
90159-60444 |
from US $0.66 |
||
|
9016860029
|
9016860029
90168-60029 New Genuine Part |
90168-60029 |
US $1.76 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $1.44 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.80 |
||
|
9018906201
|
9018906201
90189-06201 New Genuine Part |
90189-06201 |
US $1.92 |
||
|
9046709139
|
9046709139
90467-09139 CLIP |
90467-09139 |
from US $3.84 |
||
