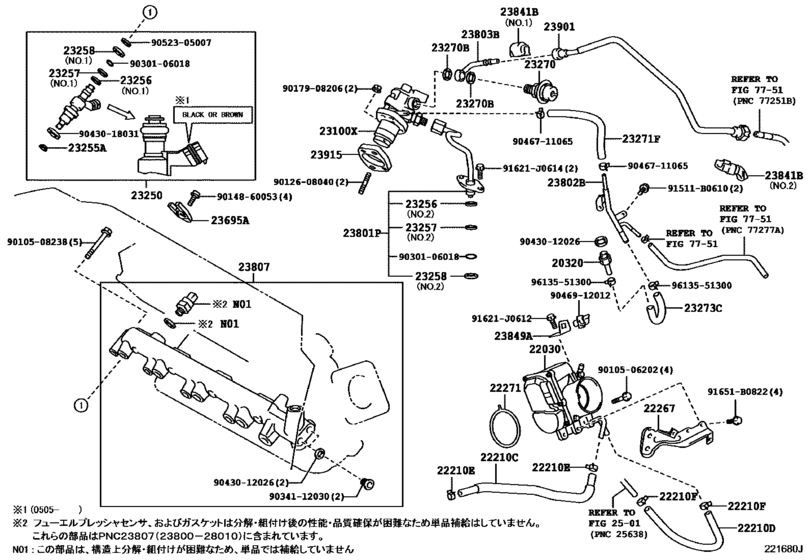

Fuel Injection System ([08.2004 - ] (0408- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20320
|
20320
20320-28011 Valve Assy, Fuel Relief[08.2004 -] 1AZFSE..AZR6# |
20320-28011 |
from US $30.95 |
||
|
22030
|
22030
22030-28050 Body Assy, Throttle W/motor[08.2004 - 06.2007] 1AZFSE..AZR6# |
22030-28050 |
US $939.12 |
||
|
22210C
|
22210C
16261-28030 Hose, Water By-Pass, No.1[08.2004 -] 1AZFSE..AZR6# |
16261-28030 |
US $11.42 |
||
|
22210D
|
22210D
16267-28030 Hose, Water By-Pass, No.2[08.2004 - 06.2007] 1AZFSE..AZR6# |
16267-28030 |
US $7.29 |
||
|
22210E
|
22210E
96135-51300 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2004 -] 1AZFSE..AZR6# |
96135-51300 |
from US $1.51 |
||
|
22210F
|
22210F
96135-51300 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2004 -] 1AZFSE..AZR6# |
96135-51300 |
from US $1.51 |
||
|
22267
|
22267
22267-28010 Bracket, Throttle Body[08.2004 -] 1AZFSE..AZR6# |
22267-28010 |
US $24.02 |
||
|
22271
|
22271
22271-28030 Gasket, Throttle Body[08.2004 -] 1AZFSE..AZR6# |
22271-28030 |
from US $3.82 |
||
|
23100X
|
23100X
23100-28042
Pump Assy, Fuel
[08.2004 -] 1AZFSE..AZR6# |
23100-28042 |
— | ||
| replacement | |||||
|
23100X
|
23100X
23100-28044 Pump Assy, Fuel[08.2004 -] 1AZFSE..AZR6# |
23100-28044 |
from US $625.60 |
||
|
23250
|
23250
23209-29035
Injector Assy, Fuel
[08.2004 - 05.2005] 1AZFSE..AZR6# |
23209-29035 |
— | ||
| replacements | |||||
|
23250
|
23250
23209-29037-A0 Injector Assy, Fuel[08.2004 - 05.2005] 1AZFSE..AZR6# |
23209-29037-A0 |
US $543.52 |
||
|
23250
|
23250
23209-29037-B0 Injector Assy, Fuel[08.2004 - 05.2005] 1AZFSE..AZR6# |
23209-29037-B0 |
US $543.52 |
||
|
23250
|
23250
23209-29036-A0 Injector Assy, Fuel[05.2005 - 06.2005] 1AZFSE..AZR6# BLACK |
23209-29036-A0 |
US $576.58 |
||
| replacement | |||||
|
23250
|
23250
23209-29037-A0 Injector Assy, Fuel[05.2005 - 06.2005] 1AZFSE..AZR6# BLACK |
23209-29037-A0 |
US $543.52 |
||
|
23250
|
23250
23209-29036-B0 Injector Assy, Fuel[05.2005 - 06.2005] 1AZFSE..AZR6# BROWN |
23209-29036-B0 |
US $576.58 |
||
| replacement | |||||
|
23250
|
23250
23209-29037-B0 Injector Assy, Fuel[05.2005 - 06.2005] 1AZFSE..AZR6# BROWN |
23209-29037-B0 |
US $543.52 |
||
|
23250
|
23250
23209-29037-A0 Injector Assy, Fuel[06.2005 - 06.2007] 1AZFSE..AZR6# BLACK |
23209-29037-A0 |
US $543.52 |
||
|
23250
|
23250
23209-29037-B0 Injector Assy, Fuel[06.2005 - 06.2007] 1AZFSE..AZR6# BROWN |
23209-29037-B0 |
US $543.52 |
||
|
23255A
|
23255A
23255-28010 Seal, Fuel Injector[08.2004 -] 1AZFSE..AZR6# |
23255-28010 |
from US $1.03 |
||
|
23256
|
23256
23256-74010 Ring, Fuel Injector Back-Up, No.1[08.2004 -] 1AZFSE..AZR6# ＮＯ．２ |
23256-74010 |
from US $1.50 |
||
|
23257
|
23257
23257-74010 Ring, Fuel Injector Back-Up, No.1[08.2004 -] 1AZFSE..AZR6# ＮＯ．２ |
23257-74010 |
from US $1.50 |
||
|
23258
|
23258
23258-28010
Ring, Fuel Injector Back-Up, No.3
[08.2004 - 05.2005] 1AZFSE..AZR6# ＮＯ．１ |
23258-28010 |
— | ||
| replacement | |||||
|
23258
|
23258
23258-28011 Ring, Fuel Injector Back-Up, No.1[08.2004 - 05.2005] 1AZFSE..AZR6# ＮＯ．１ |
23258-28011 |
from US $1.75 |
||
|
23258
|
23258
23258-28011 Ring, Fuel Injector Back-Up, No.1[05.2005 -] 1AZFSE..AZR6# ＮＯ．１ |
23258-28011 |
from US $1.75 |
||
|
23258
|
23258
23258-74010 Ring, Fuel Injector Back-Up, No.3[08.2004 -] 1AZFSE..AZR6# ＮＯ．２ |
23258-74010 |
from US $1.88 |
||
|
23270
|
23270
23270-28040
Damper Assy, Fuel Pressure Pulsation
[08.2004 -] 1AZFSE..AZR6# |
23270-28040 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-31051 Damper Assy, Fuel Pressure Pulsation[08.2004 -] 1AZFSE..AZR6# |
23270-31051 |
from US $105.60 |
||
|
23270B
|
23270B
23279-74010 Gasket(For Fuel Pump Hose)[08.2004 -] 1AZFSE..AZR6# |
23279-74010 |
from US $1.03 |
||
|
23271F
|
23271F
23271-28050
Hose, Fuel
[08.2004 -] 1AZFSE..AZR6# |
23271-28050 |
— | ||
| replacement | |||||
|
23271F
|
23271F
23271-28051 Hose, Fuel[08.2004 -] 1AZFSE..AZR6# |
23271-28051 |
US $5.37 |
||
|
23273C
|
23273C
23273-28010 Hose, Fuel, No.2[08.2004 -] 1AZFSE..AZR6# |
23273-28010 |
US $4.95 |
||
|
23695A
|
23695A
23695-28010 Clamp, Nozzle Holder[08.2004 -] 1AZFSE..AZR6# |
23695-28010 |
US $7.02 |
||
|
23801P
|
23801P
23801-28043 Pipe Sub-Assy, Fuel, No.1[08.2004 -] 1AZFSE..AZR6# |
23801-28043 |
US $58.82 |
||
| replacement | |||||
|
23801P
|
23801P
23801-28050 Pipe Sub-Assy, Fuel, No.1[08.2004 -] 1AZFSE..AZR6# |
23801-28050 |
US $52.36 |
||
|
23802B
|
23802B
23802-28020 Pipe Sub-Assy, Fuel, No.2[08.2004 -] 1AZFSE..AZR6# |
23802-28020 |
US $29.99 |
||
|
23803B
|
23803B
23803-28011 Pipe Sub-Assy, Fuel, No.3[08.2004 -] 1AZFSE..AZR6# |
23803-28011 |
US $23.59 |
||
|
23807
|
23807
23807-28023
Pipe Sub-Assy, Fuel Delivery
[08.2004 - 11.2005] 1AZFSE..AZR6# |
23807-28023 |
— | ||
| replacement | |||||
|
23807
|
23807
23800-28010 Pipe Sub-Assy, Fuel Delivery[08.2004 - 11.2005] 1AZFSE..AZR6# |
23800-28010 |
US $522.88 |
||
|
23807
|
23807
23807-28024 Pipe Sub-Assy, Fuel Delivery[11.2005 -] 1AZFSE..AZR6# |
23807-28024 |
US $308.67 |
||
| replacement | |||||
|
23807
|
23807
23800-28010 Pipe Sub-Assy, Fuel Delivery[11.2005 -] 1AZFSE..AZR6# |
23800-28010 |
US $522.88 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[09.2006 -] 1AZFSE..AZR6# ＮＯ．２ |
23841-21050 |
US $2.75 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[08.2004 - 08.2006] 1AZFSE..AZR6# ＮＯ．２ |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[08.2004 - 08.2006] 1AZFSE..AZR6# ＮＯ．２ |
23841-21050 |
US $2.75 |
||
|
23841B
|
23841B
23842-22020 Clamp, Fuel Pipe, No.1(For Efi)[08.2004 -] 1AZFSE..AZR6# ＮＯ．１ |
23842-22020 |
from US $6.57 |
||
|
23849A
|
23849A
23849-28060 Support, Fuel Pipe[08.2004 -] 1AZFSE..AZR6# |
23849-28060 |
US $4.22 |
||
|
23901
|
23901
23901-28310 Tube Sub-Assy, Fuel[08.2004 -] 1AZFSE..AZR6# |
23901-28310 |
US $104.83 |
||
|
23915
|
23915
23915-46011 Insulator, Fuel Pump[08.2004 -] 1AZFSE..AZR6# |
23915-46011 |
from US $8.57 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.38 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.63 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT WWASHER |
91621-J0614 |
US $1.38 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.82 |
||
|
9010506202
|
9010506202
90105-06202 Bolt(For Cylinder Head Cover) |
90105-06202 |
from US $0.80 |
||
|
9010508238
|
9010508238
90105-08238 New Genuine Part |
90105-08238 |
US $2.04 |
||
|
9012608040
|
9012608040
90126-08040 New Genuine Part |
90126-08040 |
US $4.40 |
||
|
9014860053
|
9014860053
90148-60053 New Genuine Part |
90148-60053 |
US $0.83 |
||
|
9017908206
|
9017908206
90179-08206 Nut(For Front Suspension Support) |
90179-08206 |
from US $0.80 |
||
|
9030106018
|
9030106018
90301-06018 Ring, O(For Fuel Injector) |
90301-06018 |
from US $2.06 |
||
|
9034112030
|
9034112030
90341-12030 Plug, Fuel Delivary Pipe |
90341-12030 |
US $1.51 |
||
|
9043012026
|
9043012026
90430-12026 Gasket |
90430-12026 |
from US $0.78 |
||
|
9043018031
|
9043018031
90430-18031 GASKETROUND TYPE |
90430-18031 |
from US $0.95 |
||
|
9046711065
|
9046711065
90467-11065 Clip(For Fuel Hose No.2) |
90467-11065 |
US $1.93 |
||
|
9046912012
|
9046912012
90469-12012 Clamp Or Clip(For Fuel Hose) |
90469-12012 |
from US $2.61 |
||
|
9052305007
|
9052305007
90523-05007 RING E |
90523-05007 |
US $0.28 |
||
|
9613551300
|
9613551300
96135-51300 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96135-51300 |
from US $1.51 |
||
